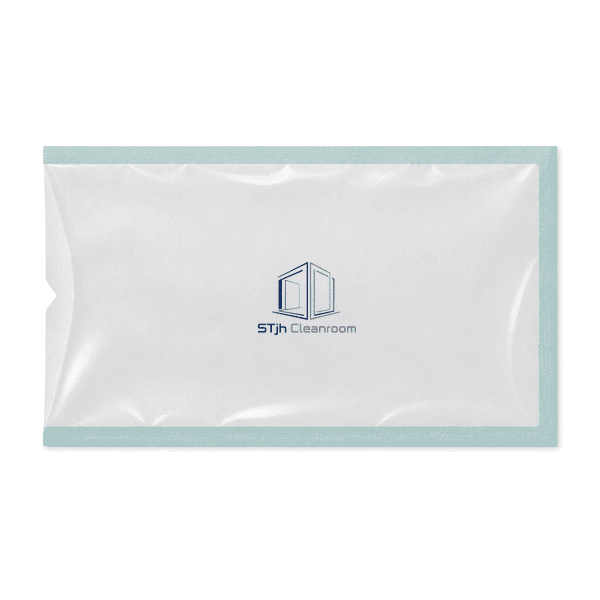

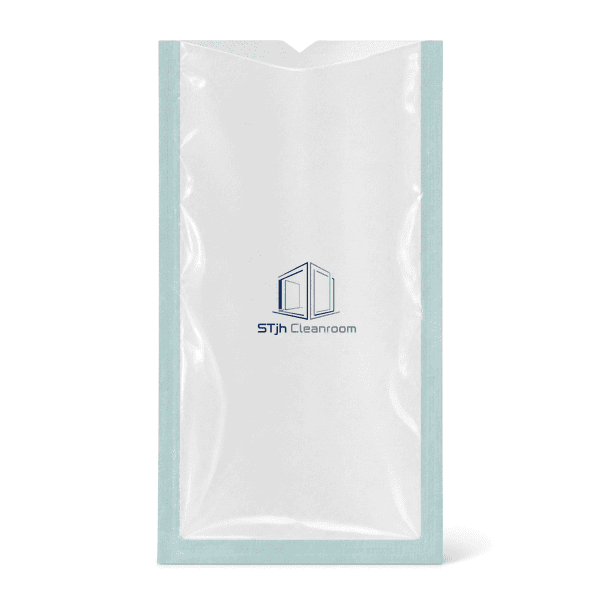

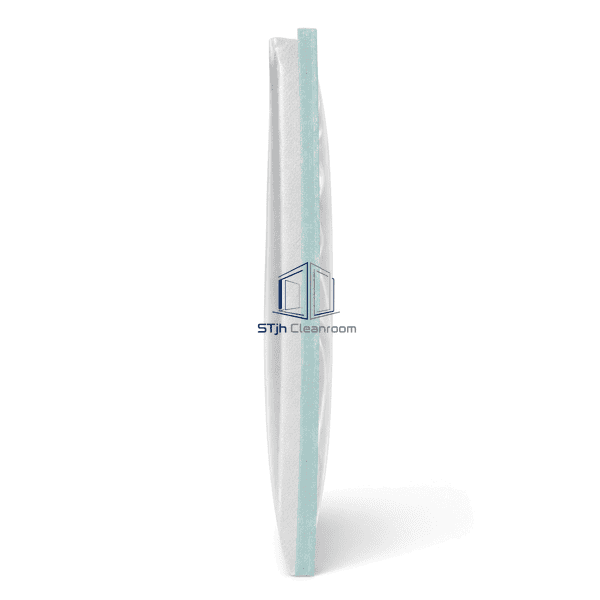

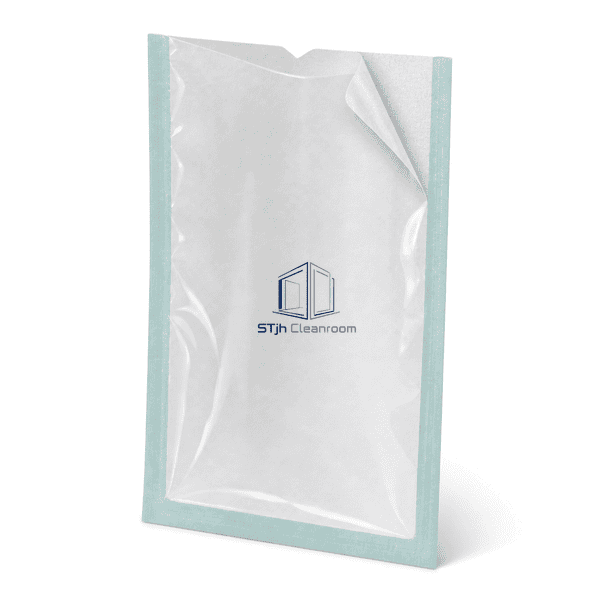

White and clear sterile packaging pouch in complete three-quarter view

Cleanroom Garments, PPE and Consumables

Sterile Packaging Bag

Tyvek-style sterile packaging pouch with a white porous HDPE web, clear PET/PE film and three-sided peelable heat-seal construction.

White porous HDPE web paired with clear multilayer film
Three factory-sealed sides with an open heat-seal end
Clean-peel sterile-barrier format for lightweight devices

Request a Quote Browse Products

Product Introduction

The Sterile Packaging Bag combines a breathable porous HDPE web with a transparent multilayer film so the enclosed device remains visible. Three perimeter sides are factory sealed, while the fourth is left open for a validated packaging process. The tough white web supports sterilant access and low-particle peeling, and the clear film provides puncture-resistant handling protection.

Key Features

Porous HDPE web supports sterilant transmission and microbial barrier performance

Clear laminate permits visual inspection without opening

Three uniform factory seals define a consistent peel path

Open fourth end accommodates device loading and validated heat sealing

Chevron peel end guides controlled presentation

Customer Product Concerns

Sterile-barrier packaging must balance sterilant access, seal integrity, puncture resistance and clean opening. Material compatibility and the final user seal are critical to maintaining the validated package system.

Incomplete final seals can create channels across the pouch boundary.Validate sealer temperature, pressure and dwell for the exact pouch construction.

Sharp devices may puncture the clear film or porous web.Use tip protection and select film gauge for the device profile.

Excessive peel force may cause abrupt opening or web tear.Specify a controlled peelable seal and open from the defined chevron end.

An incorrect pouch size can strain seals or allow excessive movement.Allow suitable clearance around the device without folding the seal area.

Typical Applications

For terminal packaging of lightweight medical devices, tubing sets, laboratory accessories, pharmaceutical components and other products requiring visibility, sterilant access and controlled clean peeling.

Technical Parameters

The values below describe a common porous-HDPE and clear-laminate sterilization pouch. Sterilization compatibility, seal window and dimensions require validation as part of the complete packaging process.

Core Material	Porous HDPE packaging web with clear PET/PE multilayer film
Panel Thickness	0.05-0.18 mm combined web and film range
Effective Width	75-305 mm pouch width
Maximum Length	457 mm pouch length
Steel Facing Thickness	0 mm; no steel facing used
Core Density	940-980 kg/m³ polymer components
Thermal Conductivity	0.15-0.45 W/(m·K), multilayer construction dependent
Surface Finish	White fibrous-looking porous web with smooth transparent film face
Joint Type	Three-sided peelable heat seal with open fourth side for final sealing
Customization	Available based on the intended application and operating environment.

Available Options

Porous HDPE web grades for selected sterilization processesPET/PE or PP/PE clear laminateFlat or chevron peel endBlank or process-indicator printed formatCustom pouch dimensionsHeat-seal or self-seal closure design
