Cleanroom Cleaning, Disinfection and Sterilization
Steam Autoclave

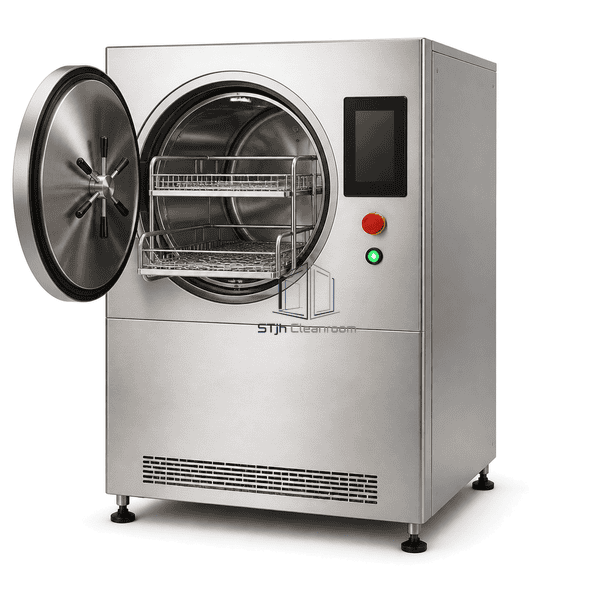

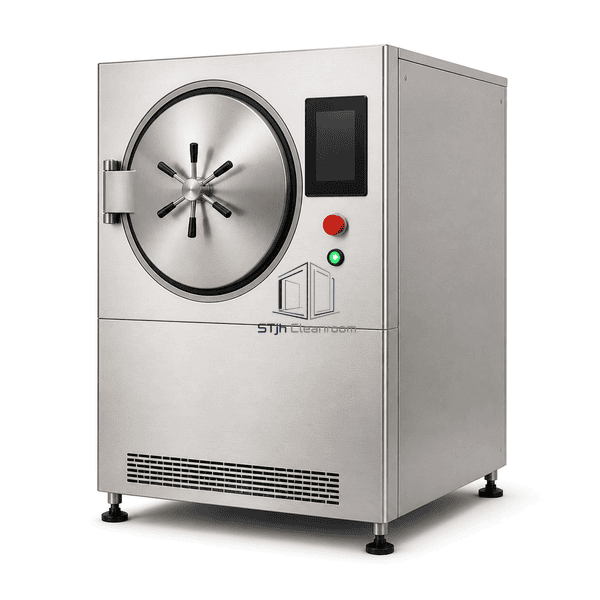

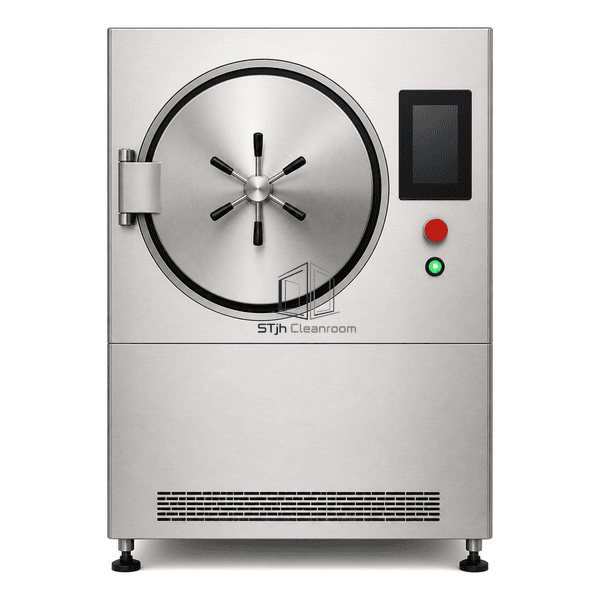

A programmable saturated-steam autoclave for heat- and moisture-stable loads, with a jacketed pressure chamber, vacuum-assisted air removal, monitored cycles, and controlled drying.
- Pressure-steam cycles provide effective heat transfer into compatible loads
- Vacuum and monitored utilities support repeatable air removal and drying
- Stainless chamber and automatic door simplify routine processing
Product Introduction
This steam autoclave is designed for instruments, textiles, glassware, components, and other heat- and moisture-stable items. The chamber, jacket, piping, and drain arrangement are engineered for controlled conditioning, exposure, exhaust, and drying. Freestanding or recessed versions can be supplied with an integral generator or facility steam connection.
Key Features
Pre-vacuum and gravity cycle capability
Automatic hinged or vertical sliding door
Touchscreen recipe control and cycle records
Chamber, jacket, and drain monitoring
Vacuum leak-test and air-removal test programs
Integral steam-generator option
Loading cart and transfer-trolley compatibility
Customer Product Concerns
Residual air, poor steam quality, overloaded packs, and unsuitable load preparation can prevent effective steam contact. Reliable processing therefore depends on maintained utilities, correct loading, monitored cycle parameters, and routine equipment testing.
How is air removal verified?Pre-vacuum control, chamber-pressure monitoring, leak testing, and an air-removal test cycle support routine verification.
Can different loads use separate recipes?Password-controlled programs store conditioning, exposure, exhaust, and drying parameters for defined load families.
How are records retained?The controller can provide printer, USB, or network cycle records containing time, temperature, pressure, alarms, and completion status.
What utilities are required?Configuration can use facility steam or an integral generator, with water, drain, electrical, ventilation, and compressed-air needs defined for the selected model.
Typical Applications
Pharmaceutical production componentsLaboratory glassware and mediaSterile-processing instrument loadsCleanroom garments and textilesHeat-stable process partsResearch and healthcare facilities
Technical Parameters
The sterilizer combines a stainless pressure vessel, steam jacket, vacuum system, drain-temperature sensing, automatic door, and programmable controller. Cycle selection is matched to the load type, packaging, steam quality, air-removal method, exposure conditions, and drying requirement.
| Core Material | 316L or 304 stainless-steel pressure chamber with stainless process piping |
|---|---|
| Panel Thickness | 30–60 mm insulated external cabinet panels |
| Effective Width | 600–1000 mm equipment width |
| Maximum Length | 1200–2200 mm maximum external dimension |
| Steel Facing Thickness | 0.8–1.5 mm stainless-steel cabinet facing |
| Core Density | 60–100 kg/m³ high-temperature mineral insulation |
| Thermal Conductivity | 0.035–0.050 W/(m·K) |
| Surface Finish | Brushed external stainless steel with smooth polished chamber interior |

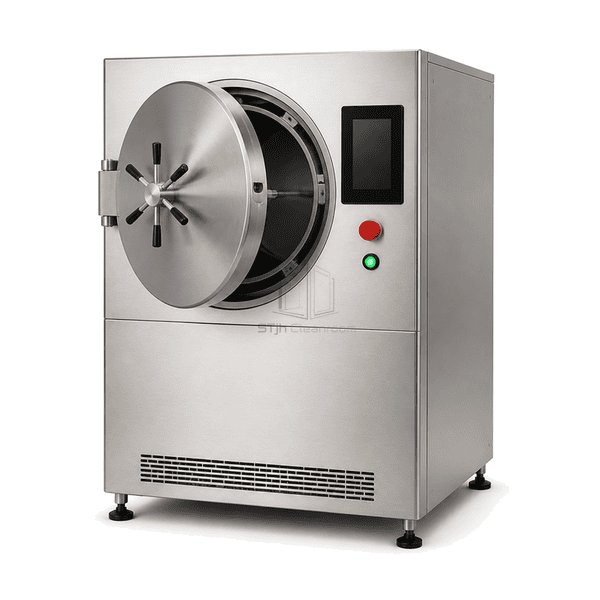

| Joint Type | Welded pressure-vessel seams with steam-activated or inflatable door gasket |
| Customization | Available based on the intended application and operating environment. |
Available Options
Hinged or vertical sliding doorIntegral clean-steam generatorVacuum pump and water-saving packageLoading cart and transfer trolleyPrinter and network data interfaceChamber sizes and cycle programsRecessed or freestanding installation
Planning a Steam Autoclave specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
