Cleanroom Furniture and Stainless Steel Products
Stainless Steel Storage Cabinet
A tall all-stainless cabinet with a sloped top, flush lockable doors and adjustable solid shelves for organized clean-area storage.
- Hygienic sloped cabinet top
- Flush lockable double doors
- Three adjustable solid shelves
- Raised base with leveling feet
Product Introduction
The stainless steel storage cabinet uses a continuously welded Type 304L body with a pitched top that discourages storage and dust accumulation above the enclosure. Two smooth front doors close over three removable solid shelves, providing protected vertical storage without open wire surfaces. The cabinet is raised on four adjustable feet so the floor remains visible and reachable during cleaning. Shelf positions can be changed in defined increments, while the rotary latch secures both doors from one accessible point.
Key Features
Three solid shelves provide continuous support for containers, tools and packaged supplies without small items falling through an open grid.

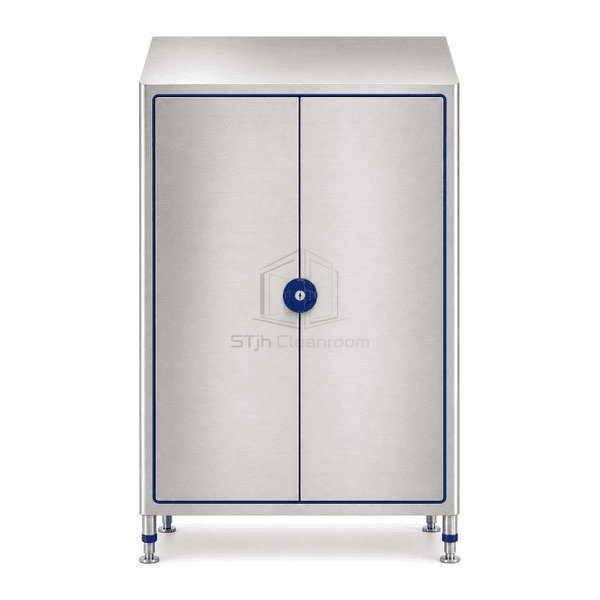

A flush double-door front presents broad smooth surfaces and keeps protruding hardware to a practical minimum.

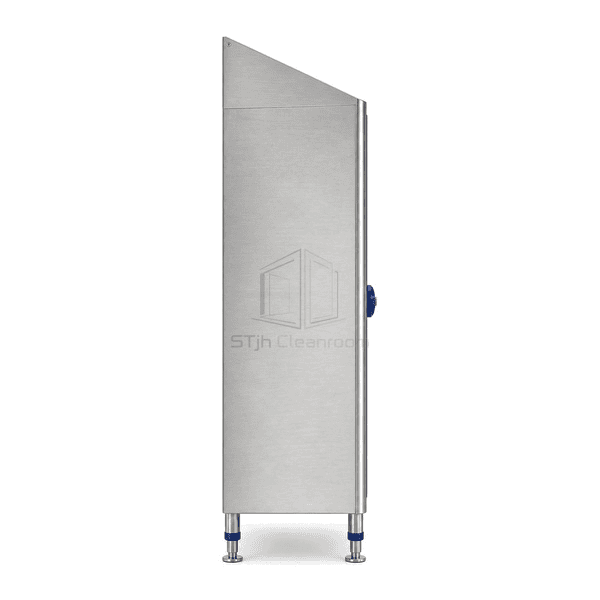

Raised stainless feet provide floor clearance and independent level adjustment on uneven finished surfaces.
Customer Product Concerns
Clean-area storage must protect supplies while avoiding dust ledges, inaccessible floor zones and unstable shelf arrangements.

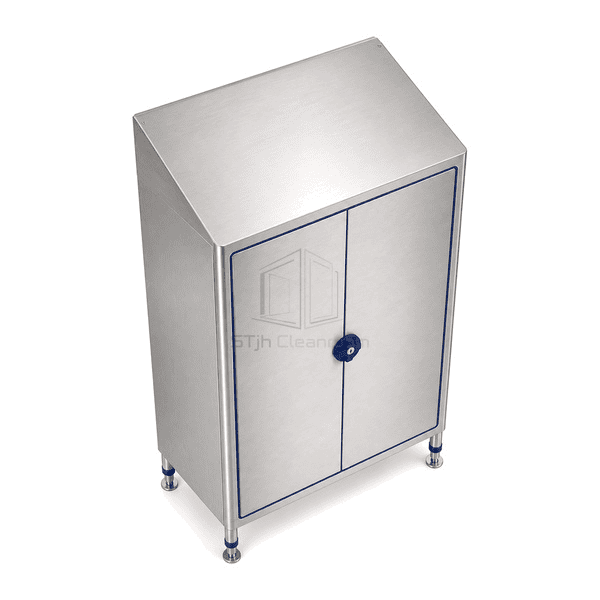

A flat cabinet roof becomes an uncontrolled shelf where cartons and dust accumulate.The sloped stainless top prevents practical storage above the cabinet and remains visible for wiping.

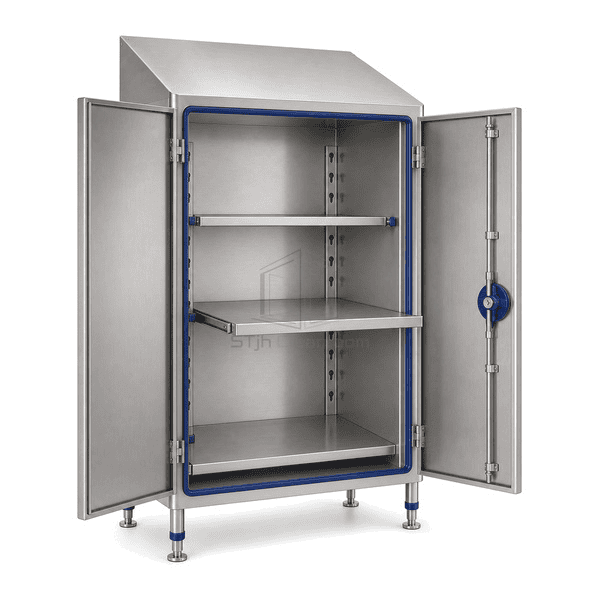

Fixed shelf spacing wastes vertical capacity when container heights change.Removable solid shelves relocate through multiple clean support positions inside the cabinet.
A cabinet plinth seals off the floor and creates an inaccessible cleaning zone along its edges.Four raised legs expose the floor beneath the cabinet and allow independent leveling.
Separate door catches can leave one leaf unsecured after supplies are returned.The central rotary latch controls the paired flush doors from one defined closing point.
Typical Applications
Packaged cleanroom consumable storagePharmaceutical material stagingLaboratory glassware and container storageMedical-device component storageControlled-area maintenance supply storage
Technical Parameters
Typical configurable specifications for a tall stainless cleanroom storage cabinet are listed below.
| Core Material | Type 304L stainless steel cabinet body, flush doors, shelf supports and three removable solid shelves |
|---|---|
| Panel Thickness | 1.2–1.5 mm cabinet body and door panels |
| Effective Width | 950–1200 mm overall cabinet width |
| Maximum Length | 2100 mm overall cabinet height |
| Steel Facing Thickness | 1.2–1.5 mm Type 304L stainless body, doors and shelves |
| Core Density | 7900–8000 kg/m³ for Type 304L stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304L stainless steel |
| Surface Finish | Brushed dull-polish or No. 4 stainless with smooth visible weld transitions |
| Joint Type | Continuously welded carcass with flush double hinged doors, central rotary latch and removable shelves on clean supports |
| Customization | Available based on the intended application and operating environment. |
Available Options
Additional solid or perforated shelvesClear glazed or stainless mesh door panelsWall restraint and removable drip trayElectropolished Type 316L construction
Planning a Stainless Steel Storage Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
