Sole Cleaning and Disinfection Machine

A walk-through stainless unit that cleans and disinfects footwear soles with two powered brushes beneath a stable slotted safety grid.

Twin Rotating Sole Brushes
Automatic Chemical Dosing
Slotted Safety Grid
Dual Guide Rails

Request a Quote Browse Products

Product Introduction

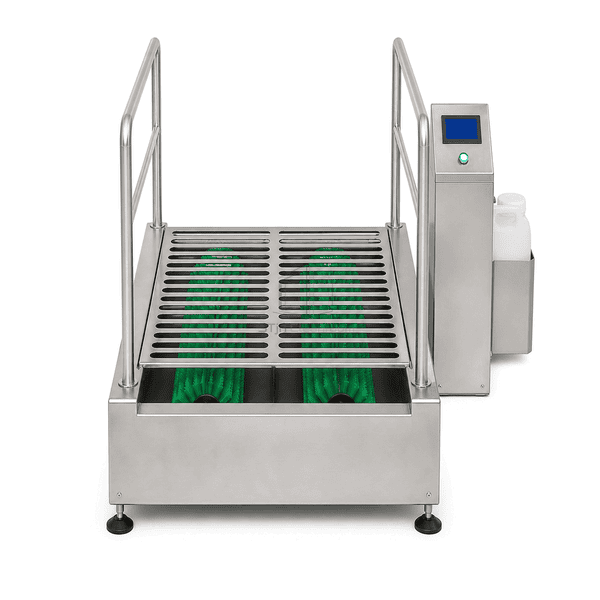

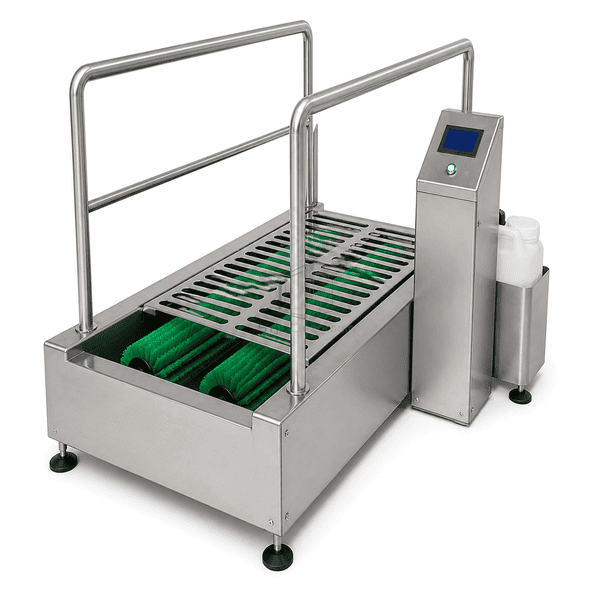

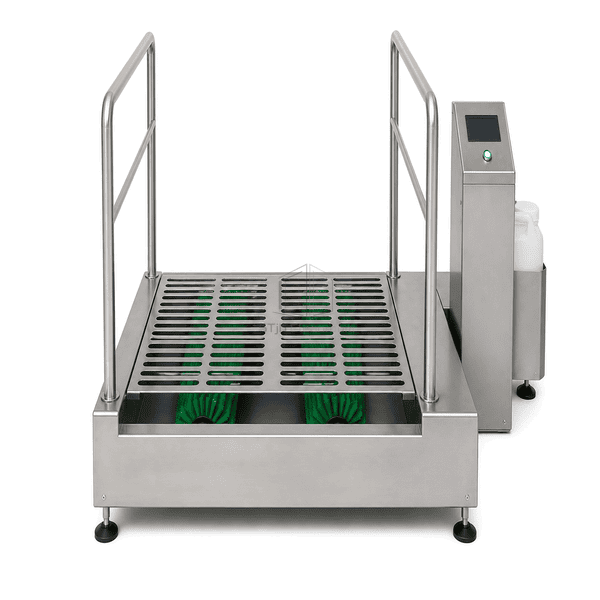

The sole cleaning and disinfection machine places two powered brush rollers below a stainless walking grid so footwear is scrubbed while personnel move through the unit. Water and cleaning solution are metered into the brush channel, and the basin directs runoff toward the drain. Side rails, sensor-ready controls and removable grid sections support safe, high-throughput entry hygiene.

Key Features

Two long brush rollers provide continuous sole contact across the walking path.

A slotted stainless grid supports users while exposing soles to the bristles.

Automatic dosing maintains a repeatable cleaning-solution feed to the basin.

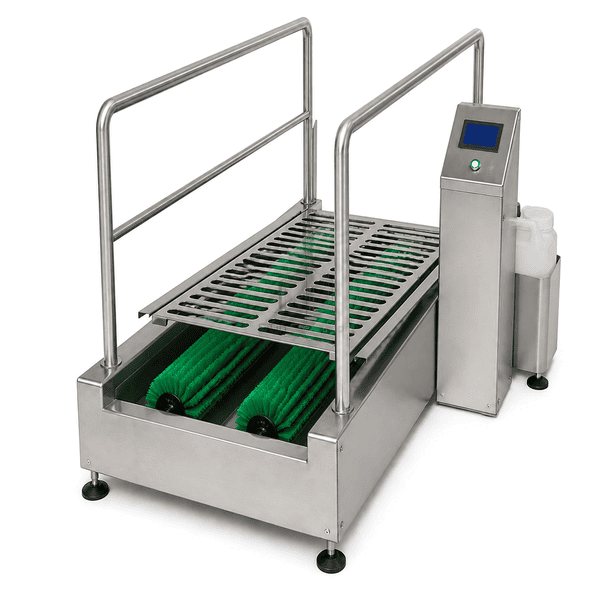

Liftable grid sections and removable brushes simplify sanitation access.

Customer Product Concerns

Footwear can transfer residues and microorganisms between zones when passive mats or brief manual cleaning provide insufficient contact.

Flat footbaths do not mechanically remove adhered debris.Two rotating brushes apply active scrubbing across the sole surface.

Workers may step around small cleaning devices.A rail-guided walk-through path covers the full personnel passage.

Chemical concentration varies with manual mixing.An enclosed dosing arrangement meters cleaner or disinfectant during operation.

Fixed grids obstruct brush and drain cleaning.Liftable grid panels expose both rollers and the basin for wash-down.

Typical Applications

Food production hygiene entrancesMeat and dairy processingPharmaceutical utility corridorsHigh-care packaging access points

Technical Parameters

Typical configurable construction values for a walk-through sole cleaning and disinfection machine are listed below.

Core Material	304 stainless-steel basin and rails with green food-grade polymer brush rollers
Panel Thickness	40-80 mm basin and control-pedestal sections
Effective Width	550-800 mm clear walk-through width
Maximum Length	Up to 2600 mm overall machine length
Steel Facing Thickness	1.5-2.5 mm stainless basin and grid construction
Core Density	7950-8050 kg/m³ for stainless-steel construction
Thermal Conductivity	14-16 W/(m·K) for austenitic stainless steel
Surface Finish	Brushed hygienic stainless with green replaceable polymer brushes
Joint Type	Welded drained basin with liftable slotted grid, removable brush shafts and sealed dosing pedestal
Customization	Available based on the intended application and operating environment.

Available Options

Different brush lengths and bristle stiffnessPhotocell activationDetergent or disinfectant dosingIntegration with hand hygiene and access control
