Cleanroom Doors, Windows and Interlock Systems
Single-Leaf Cleanroom Swing Door

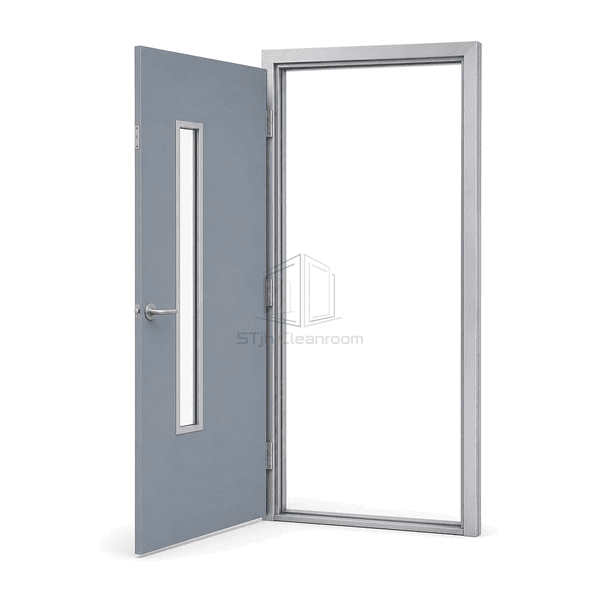

A compact single-leaf personnel doorset that provides the simplest hinged access arrangement for cleanrooms with moderate traffic and limited wall opening width.
- Compact Single-Leaf Layout
- Clear Personnel Access
- Flush 50 mm Insulated Leaf
- Reinforced Hardware Fixing Zones
Product Introduction

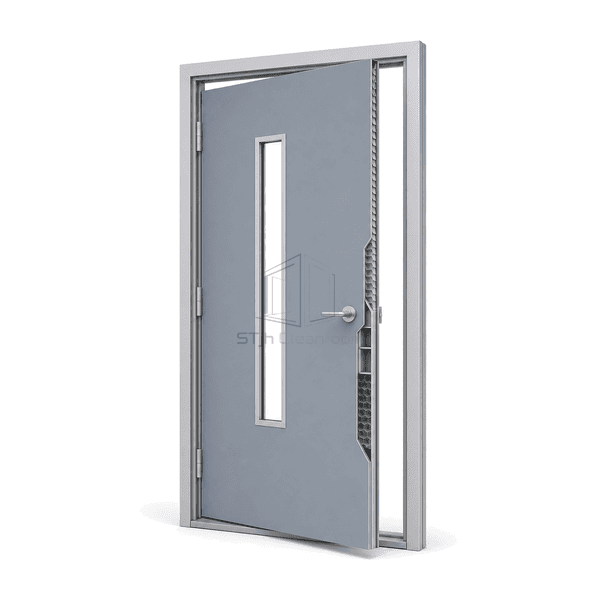

The Single-Leaf Cleanroom Swing Door uses one insulated leaf within a sealed frame and is the standard choice for personnel circulation where a wider equipment opening is unnecessary. A flame-retardant paper honeycomb core keeps the door light, while steel skins and internal hardware blocks provide useful stiffness. Handing, swing direction, vision-panel position and closer configuration can be matched to the approach route.
Key Features
Paper honeycomb keeps everyday personnel operation light and balanced.
Left- and right-hand configurations suit corridor and airlock layouts.
A flush vision panel can improve collision awareness across the opening.
Prepared interlock hardware connects the door to adjacent airlock access points.
Customer Product Concerns
Single doors must make efficient use of limited openings while maintaining sightlines, safe handing and dependable closure.
An oversized paired doorset wastes wall space on a personnel-only route.A single 800-1200 mm leaf delivers the required clear passage in a compact frame.
Incorrect handing sends the leaf into equipment or a circulation path.Factory-defined left/right handing and opening direction align the swing with the room layout.

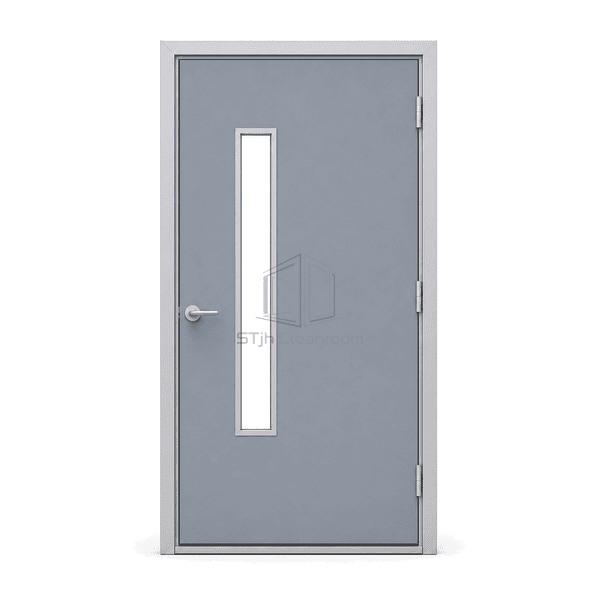

Operators cannot see approaching traffic through a solid door.A flush observation window is positioned at the working sightline without projecting trim.
A heavy leaf fails to close consistently after frequent use.Light honeycomb construction and a correctly sized closer maintain controlled return.
Typical Applications
Cleanroom personnel entrancesGowning room accessLaboratory roomsQuality-control suitesSmall material pass routes
Technical Parameters
Typical dimensions for a single-leaf cleanroom personnel door are shown below.
| Core Material | Flame-retardant paper honeycomb with local hardware reinforcement |
|---|---|
| Panel Thickness | 50 mm door leaf |
| Effective Width | 700-1200 mm clear opening |
| Maximum Length | 2400 mm maximum leaf height |
| Steel Facing Thickness | 0.8-1.0 mm powder-coated galvanized steel |
| Core Density | 30-50 kg/m³ paper honeycomb |
| Thermal Conductivity | 0.07-0.10 W/(m·K) typical honeycomb core range |
| Surface Finish | Smooth powder-coated steel in selected RAL colour |

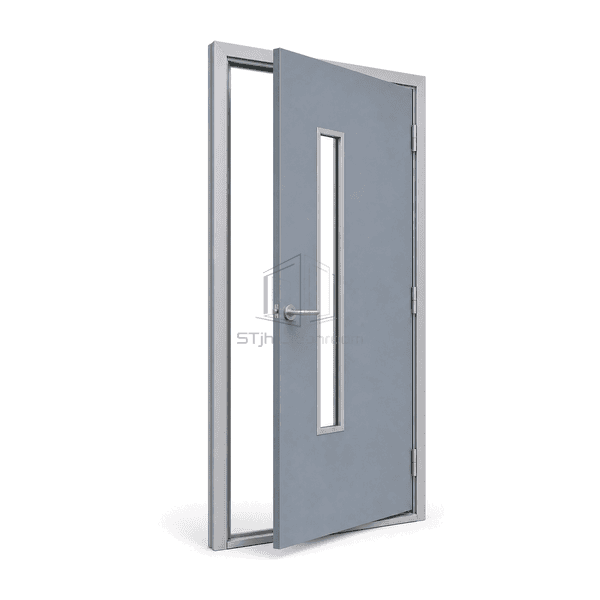

| Joint Type | Single rebated swing leaf with three-sided gasket and optional bottom drop seal |
| Customization | Available based on the intended application and operating environment |
Available Options
Left- or right-hand swingFlush vision panelDoor closer or automatic openerInterlock and access-control package
Planning a Single-Leaf Cleanroom Swing Door specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
