Cleanroom Garments, PPE and Consumables

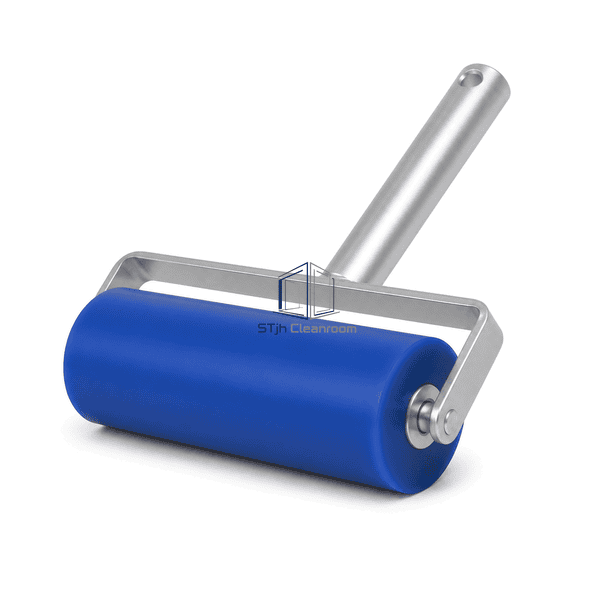

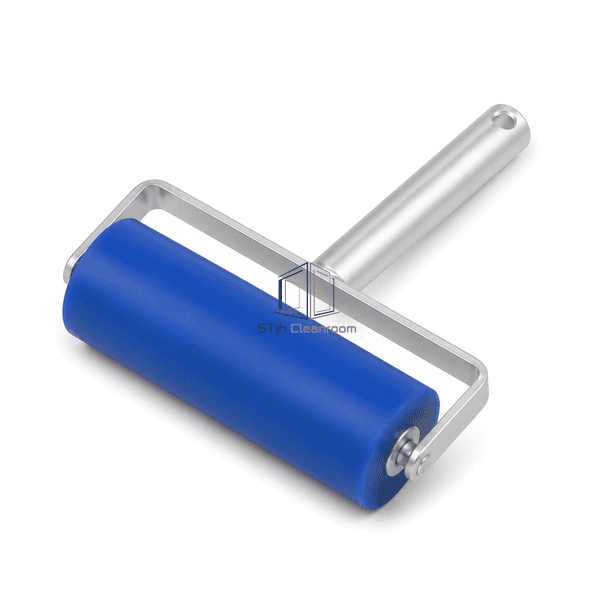

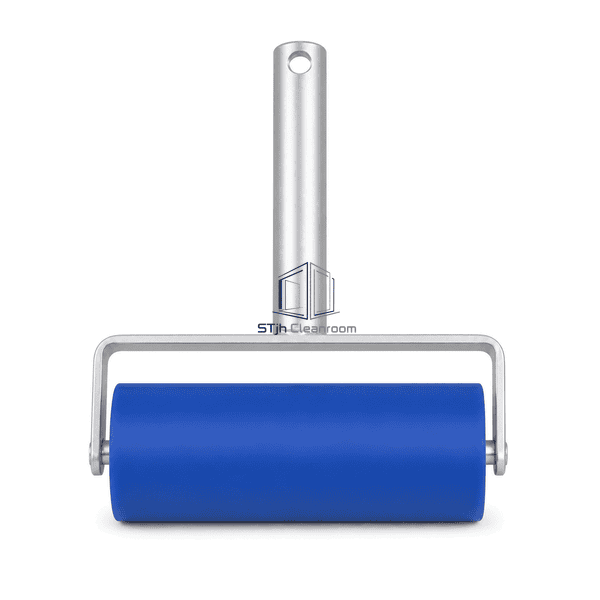

Silicone Tacky Roller
Reusable blue silicone tacky roller with a smooth resilient surface and clean handle for particle removal from sensitive flat components.
- Reusable blue silicone particle-pickup surface
- No disposable peel-away film required
- Plastic or aluminium cleanroom handle options
Product Introduction
The Silicone Tacky Roller uses a smooth resilient silicone cylinder to lift loose particles from panels, circuit boards, glass and other flat process surfaces. Unlike a peel-film roller, the working cylinder remains in service: collected debris is transferred to a clean adhesive sheet or removed by the approved washing method. A rigid axle and low-shedding handle keep pressure even across the working width.
Key Features
Smooth compliant surface follows minor surface variation without abrasive scrubbing
Low, medium and high tack grades suit different substrates
Rigid axle supports even contact across the roller width
Replaceable roller or complete tool configurations simplify maintenance
Customer Product Concerns
Precision substrates require particle pickup without scratching, adhesive residue or excessive rolling force. The selected silicone hardness and tack must suit the surface, and the roller must be cleaned before captured debris builds up.
High tack can stress delicate films or thin components.Choose low, medium or high tack after testing a representative substrate.
Uneven axle pressure may leave uncleaned bands.Use a straight rigid frame and roll with light uniform pressure.
An overloaded cylinder can redeposit particles.Transfer debris frequently to a clean sticky sheet or mat.
Incompatible cleaning chemistry can alter the silicone surface.Follow the approved rinse and drying method without aggressive solvent exposure.
Typical Applications
Used on PCB assemblies, LCD and optical panels, light-guide plates, glass, precision printing surfaces, semiconductor support components, worktops and other smooth substrates requiring reusable dry particle pickup.
Technical Parameters
These ranges represent common reusable silicone tacky rollers. Final width, tack grade, hardness, handle material and cleaning method should match the handled substrate and contamination-control procedure.
| Core Material | Reusable tacky silicone elastomer on a rigid polymer or metal roller core |
|---|---|
| Panel Thickness | 5-15 mm silicone working layer |
| Effective Width | 100-400 mm |
| Maximum Length | 500 mm overall tool length, configuration dependent |
| Steel Facing Thickness | 0 mm; optional aluminium alloy axle and handle |
| Core Density | 1050-1250 kg/m³ silicone elastomer |
| Thermal Conductivity | 0.15-0.30 W/(m·K), formulation dependent |
| Surface Finish | Smooth blue low-, medium- or high-tack silicone cylinder |

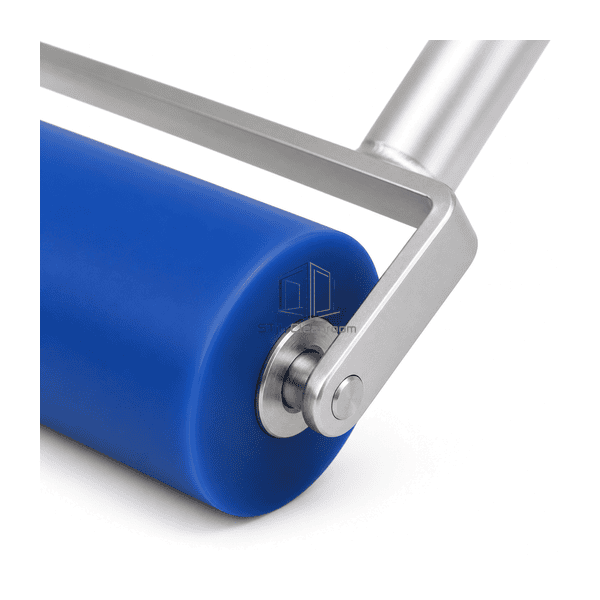

| Joint Type | Reusable roller cylinder mounted on a two-arm axle handle |
| Customization | Available based on the intended application and operating environment. |
Available Options
100-400 mm roller widthsLow, medium or high tackBlue or clear silicone formulationABS plastic or aluminium handleReplacement cylinder or complete rollerClean bagging for controlled-area transfer
Planning a Silicone Tacky Roller specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
