Cleanroom Doors, Windows and Interlock Systems

PVC Strip Curtain Door

An overlapping flexible strip barrier that permits hands-free passage while limiting drafts, dust and direct air exchange through a busy opening.

Hands-Free Traffic Separation
Clear Neutral PVC
200 or 300 mm Strips
Cold-Room Formulation Option

Request a Quote Browse Products

Product Introduction

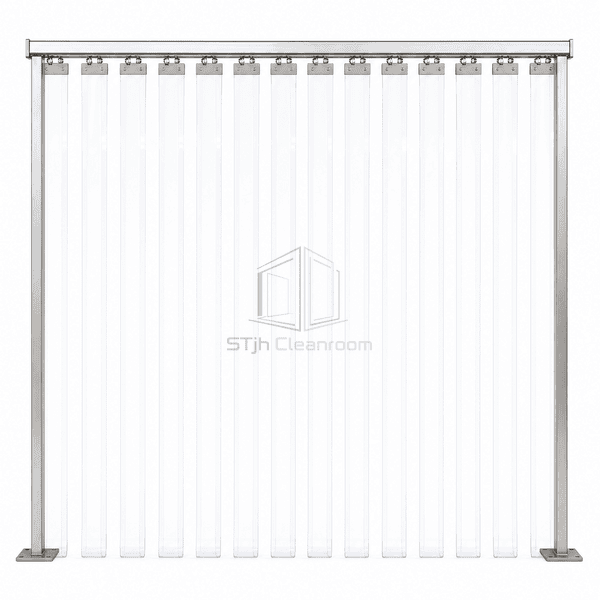

The PVC Strip Curtain Door suspends individually replaceable clear flexible strips from a stainless or aluminum hook-on track. Selected overlap between adjacent strips creates a passive barrier while allowing people and carts to pass without operating hardware. Clear neutral PVC preserves visibility through the opening, and alternative formulations can support low-temperature, antistatic or ribbed traffic conditions.

Key Features

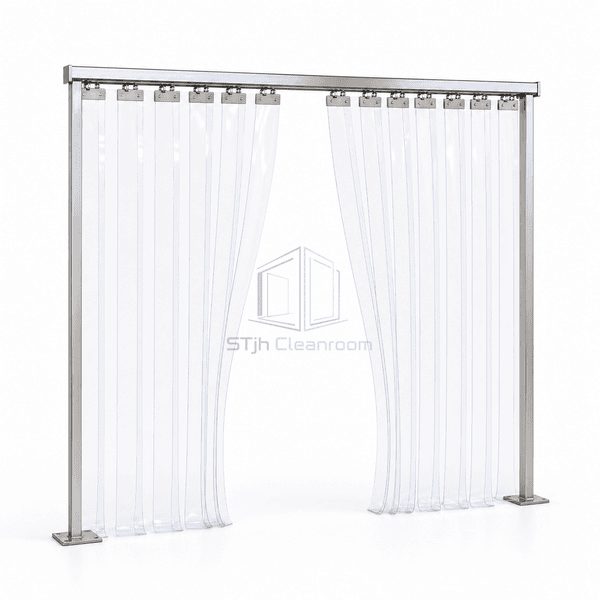

Overlapping flexible strips close automatically after personnel or carts pass through.

Clear PVC maintains sightlines for opposing traffic at busy openings.

Individual strips can be replaced without removing the complete hanging system.

Hook-on mounting allows overlap and strip position to be adjusted locally.

Smooth non-porous material can be removed for wash-down or periodic replacement.

Customer Product Concerns

A permanently open doorway permits continuous drafts and airborne dust movement.Overlapping strips reform a passive barrier immediately after traffic passes.

Opaque partitions hide approaching personnel and vehicles.High-transmission clear PVC maintains visual awareness across the opening.

Damage to one section forces replacement of a complete flexible curtain.Each strip hangs independently and can be changed from the track.

Standard PVC stiffens or cracks in cold process areas.Low-temperature strip formulations retain flexibility at reduced operating temperatures.

Typical Applications

Clean support warehousesFood-processing transfer openingsTemperature-zoned production areasDust-control partitionsCart and pedestrian passages

Technical Parameters

Core Material	Flexible clear polyvinyl chloride strips

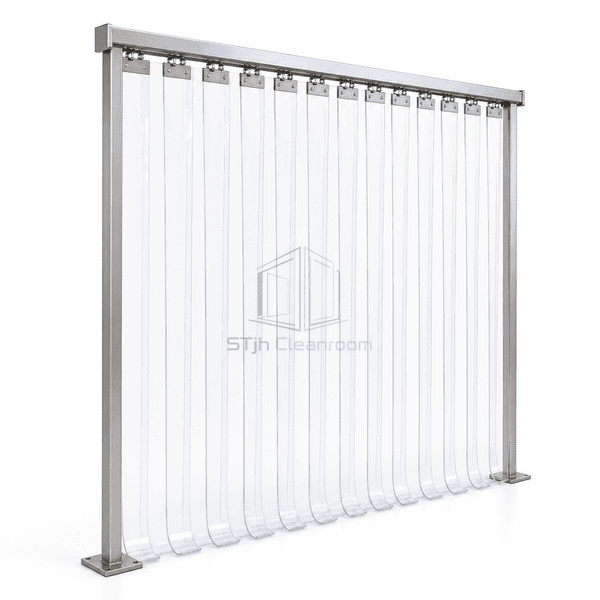

Panel Thickness	2.0–4.0 mm strip thickness
Effective Width	800–4000 mm assembled opening width
Maximum Length	Up to 4000 mm strip drop
Steel Facing Thickness	Not applicable to PVC strips; stainless hanging track typically 1.2–2.0 mm
Core Density	Approximately 1200–1300 kg/m³ for flexible PVC
Thermal Conductivity	Approximately 0.14–0.17 W/(m·K) for flexible PVC
Surface Finish	Smooth clear neutral PVC with optional ribbed, low-temperature or antistatic formulation

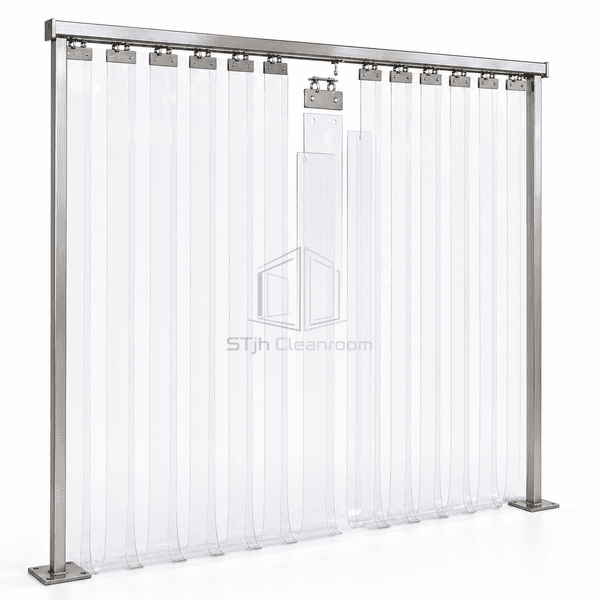

Joint Type	Overlapping suspended strips attached by removable hook-on plates to a stainless or aluminum track
Customization	Available based on the intended application and operating environment.

Available Options

200 or 300 mm strip widthStandard or low-temperature PVCRibbed forklift-traffic stripsAntistatic or tinted formulations
