PVC High-Speed Roll-Up Door

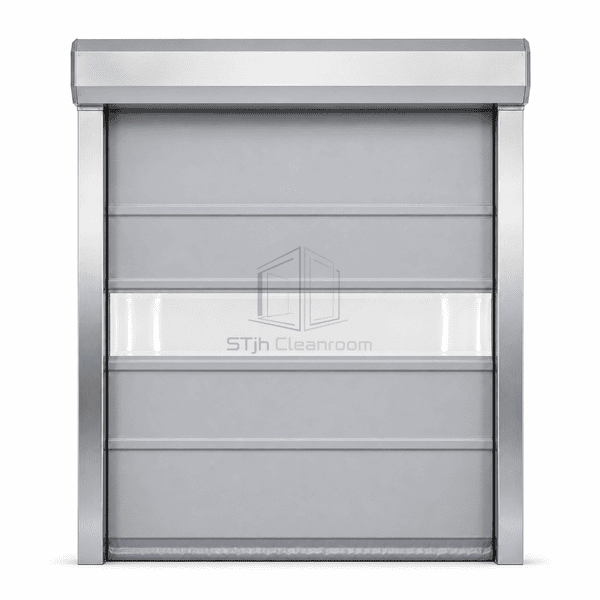

A fast interior traffic door with a smooth flexible PVC curtain, slim side guides and automatic controls for separating busy production and logistics areas.

Internal Production Traffic
Reinforced PVC-Coated Polyester
Galvanized or Stainless Frame
Transparent Vision Band Option

Request a Quote Browse Products

Product Introduction

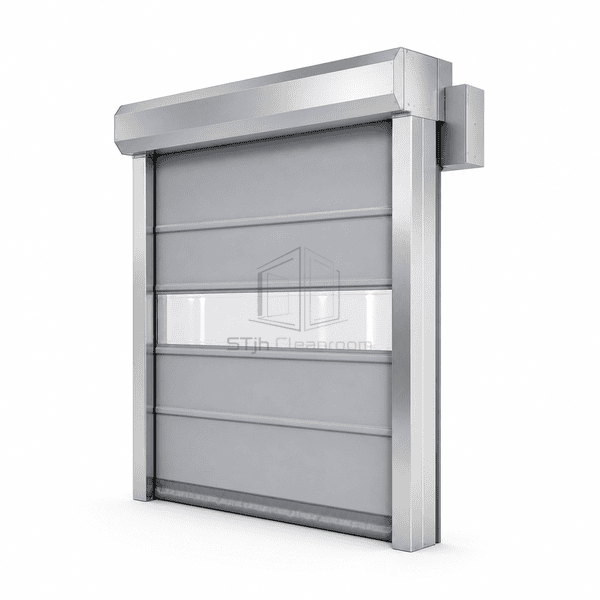

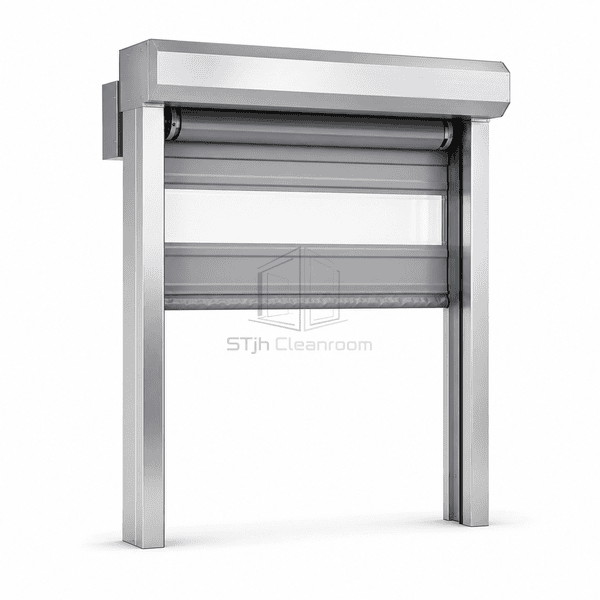

The PVC High-Speed Roll-Up Door is an interior door system built around a reinforced flexible curtain, low-friction side guides, overhead drum and frequency-controlled motor. Its compact footprint fits openings with limited side room, while rapid cycling supports uninterrupted pedestrian, cart and forklift movement. The smooth curtain can be wiped clean and supplied with a transparent vision band. Because the curtain contains no rigid wind bars, minor contact is less likely to damage vehicles or the door assembly.

Key Features

Slim vertical guides preserve usable clearance where wall space is restricted.

Flexible PVC curtain offers a smooth cleanable surface with optional transparent viewing band.

Variable-speed drive provides controlled acceleration and deceleration during frequent cycles.

Self-reinserting edges restore the curtain into its tracks after common low-energy impacts.

Photoelectric monitoring and a soft lower edge protect mixed pedestrian and cart traffic.

Customer Product Concerns

Frequent traffic queues at a slow conventional shutter.Rapid vertical travel and automatic activation keep the opening clear for short transfer cycles.

A bulky header or guide frame cannot fit beside process equipment.Compact side columns and a small overhead roll minimize the installation envelope.

Rigid curtain bars increase collision damage and injury risk.The soft curtain and lower edge flex under contact and contain no rigid transverse members.

Dust and marks accumulate on complex sectional-door surfaces.A single smooth PVC face is straightforward to wipe and inspect.

Typical Applications

Internal production traffic lanesPackaging and dispatch areasHygienic food-processing zonesWarehouse-to-production transitionsClean support and utility corridors

Technical Parameters

Core Material	Reinforced flexible PVC-coated polyester curtain without rigid wind bars
Panel Thickness	0.8–1.2 mm standard flexible curtain
Effective Width	1000–4000 mm clear opening
Maximum Length	Up to 4200 mm clear opening height
Steel Facing Thickness	Not applicable to the curtain; galvanized frame members typically 2.0–3.0 mm
Core Density	Approximately 1200–1400 kg/m³ for the PVC compound
Thermal Conductivity	Approximately 0.14–0.17 W/(m·K); the single curtain is not a thermal-insulation panel
Surface Finish	Smooth colored PVC with galvanized, powder-coated or stainless-steel guide structure

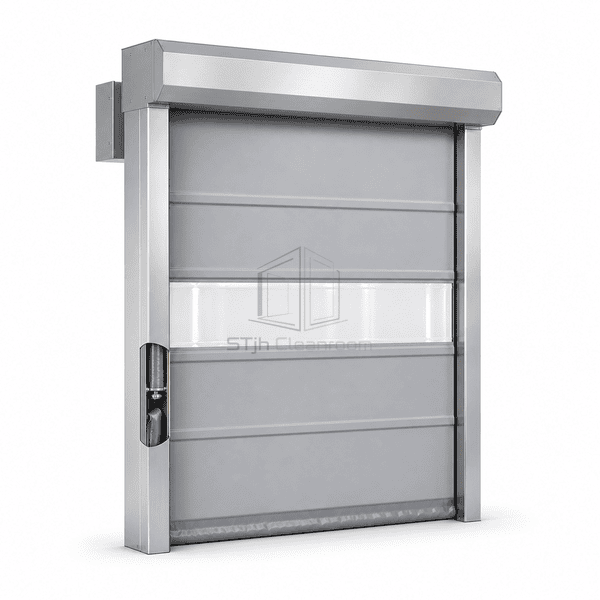

Joint Type	Flexible curtain rolled onto an overhead drum and retained by continuous low-friction side guides
Customization	Available based on the intended application and operating environment.

Available Options

Full-width transparent vision panelStainless steel structurePrinted safety markingsRadar, loop, pull-cord or push-button activation
