Cleanroom Cleaning, Disinfection and Sterilization
Plasma Air Disinfection Unit
A mobile recirculating air-treatment unit combining particulate filtration, an ionizing plasma stage, and optional molecular media for occupied controlled environments.
- Multi-stage recirculation captures particles and treats the moving airstream
- Adjustable airflow supports continuous occupied-room operation
- Service-access design simplifies filter and plasma-module maintenance
Product Introduction

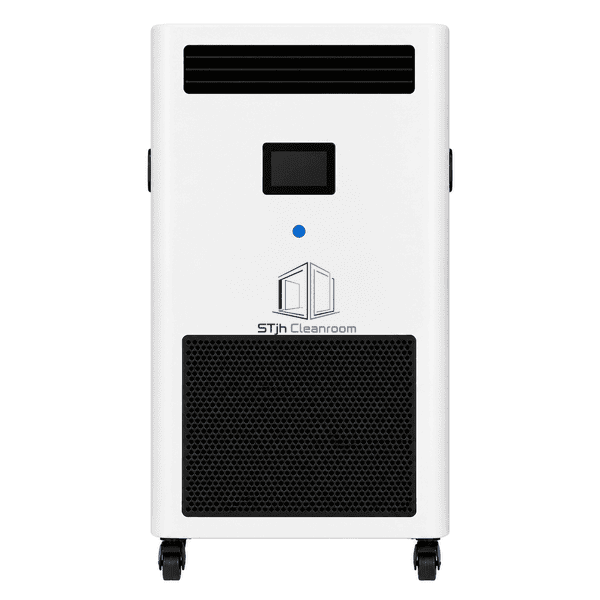

This plasma air disinfection unit supplements—not replaces—the facility ventilation and cleaning program. A stable wheeled cabinet houses the fan, filters, plasma module, sensors, and control system. The filtration sequence and airflow are selected for the room size and contaminant profile; cleanable exterior surfaces suit laboratories, healthcare support areas, and controlled production rooms.
Key Features
Optional molecular carbon filter
Variable-speed low-noise fan
Touchscreen or membrane control panel
Filter differential-pressure indication
Plasma-module status and fault monitoring

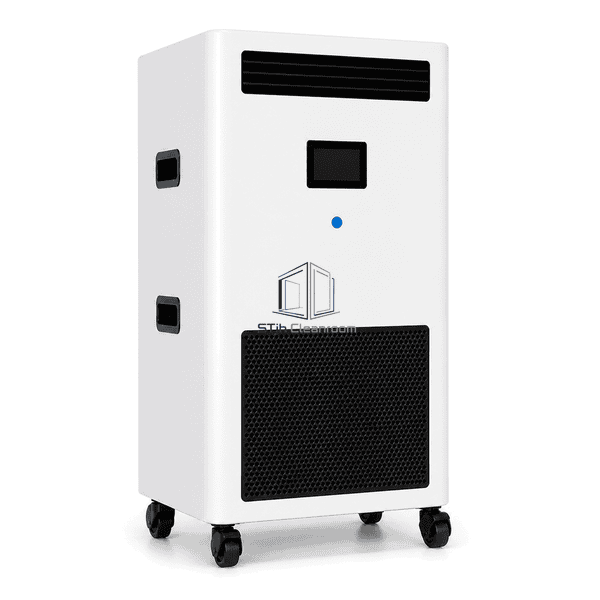

Locking castors and recessed transport handles
Tool-access service door with safety isolation
Customer Product Concerns
Indoor particle and odor loads can vary quickly with occupancy and processes. Supplemental recirculation must provide useful air movement without excessive noise, and ionization equipment requires correct application, maintained electrodes, and verified byproduct performance.
How is capacity selected?Airflow and unit quantity are matched to room volume, existing ventilation, contaminant generation, noise limits, and the treatment objective.
How are filters monitored?Differential-pressure sensing and service alarms indicate loading so filters can be replaced under a planned maintenance schedule.
Can odors be addressed?An application-specific molecular filter stage can be added for compatible odors and gaseous contaminants.

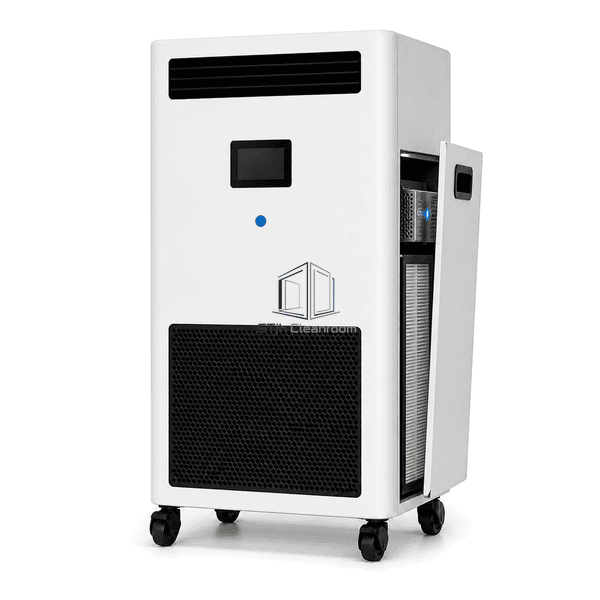

How is the plasma stage maintained?The isolated service compartment allows scheduled inspection and cleaning of electrodes or replacement of the removable module.
Typical Applications
Pharmaceutical support spacesLaboratories and sample preparation roomsHealthcare waiting and treatment support areasFood and beverage controlled zonesOffices and training roomsControlled manufacturing environments
Technical Parameters

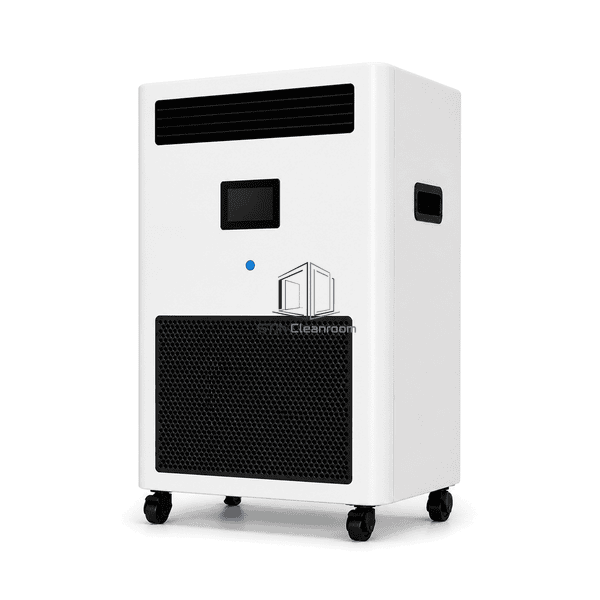

Room air passes through a prefilter, high-efficiency particulate filter, and electrically energized ionization module before returning through a directional outlet. Optional activated-carbon media targets selected odors and gaseous contaminants. Airflow, filter loading, and module status can be monitored at the front controller.
| Core Material | Powder-coated steel or stainless-steel cabinet with polymeric filter seals |
|---|---|
| Panel Thickness | 20–40 mm reinforced and acoustically lined panels |
| Effective Width | 450–700 mm cabinet width |
| Maximum Length | 900–1500 mm overall cabinet height |
| Steel Facing Thickness | 0.8–1.2 mm steel facing |
| Core Density | 35–60 kg/m³ acoustic insulation where fitted |
| Thermal Conductivity | 0.030–0.040 W/(m·K) for optional cabinet insulation |
| Surface Finish | White powder coating or brushed stainless steel with cleanable inlet grille |
| Joint Type | Gasketed service panels with sealed filter tracks and removable plasma-module connection |
| Customization | Available based on the intended application and operating environment. |
Available Options
Powder-coated or stainless-steel cabinetHEPA filter grades and molecular mediaVariable airflow and quiet modeParticle, VOC, temperature, and humidity sensorsRemote alarm and BMS interfaceFixed feet or locking castorsAlternative electrical supplies
