Laminar Flow and Containment Equipment

Pharmaceutical Dispensing Booth

A downflow work zone arranged for opening bulk containers and subdividing pharmaceutical ingredients into weighed process quantities.

Bulk-to-Batch Dispensing
Low-Level Dust Capture
Integrated Weighing Options
Container Handling Space

Request a Quote Browse Products

Product Introduction

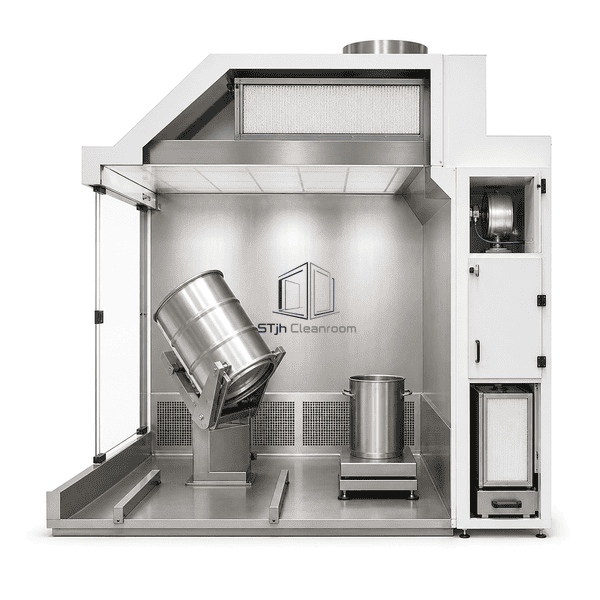

The dispensing booth provides more container-handling space than a compact weighing enclosure. Drums, lined bins or bags are positioned inside the filtered downflow zone, and measured quantities are transferred to receiving containers on an integrated or separate scale. Rear returns collect airborne dust below the operator's breathing zone, while optional lifts, drum tippers and pallet stops reduce manual reach. The booth is configured around the actual container sizes and powder characteristics.

Key Features

A deep work zone accommodates source drums and receiving containers together.

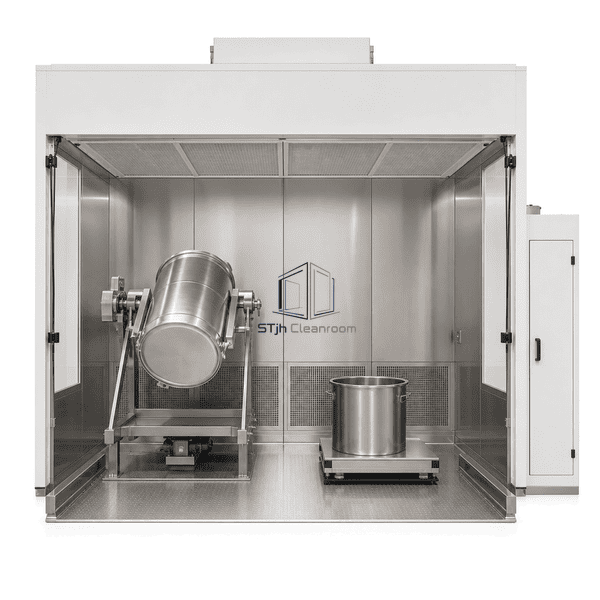

Low rear returns capture dust released during scooping and bag opening.

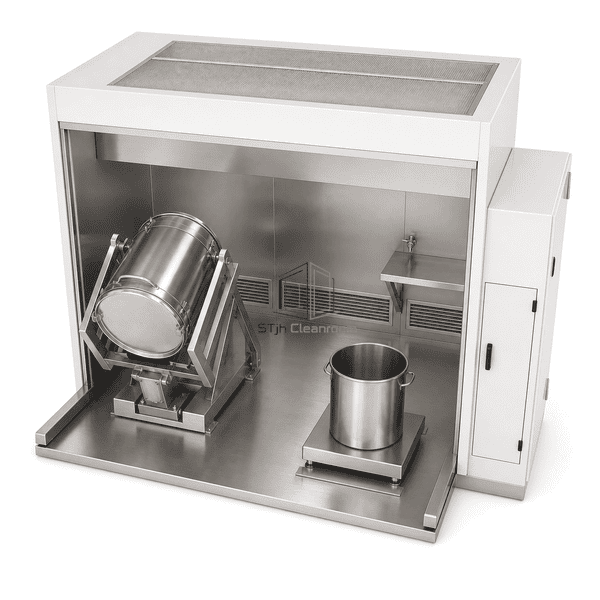

Drum lifts or tilters can position material without deep operator reach.

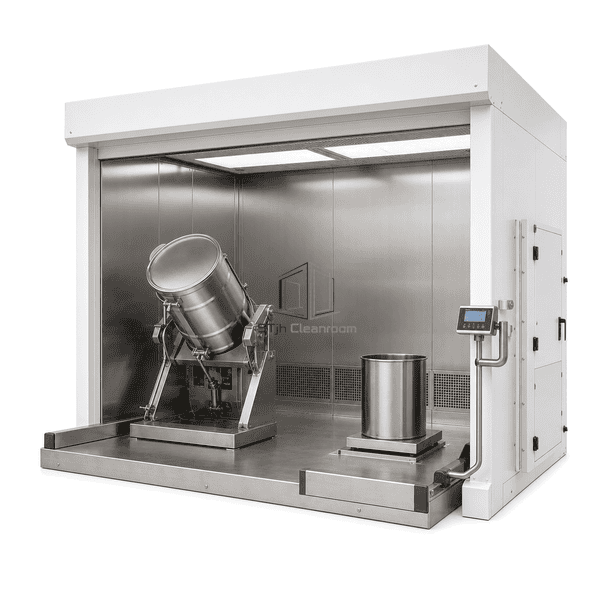

Pallet stops keep mobile containers clear of the return grilles.

A flush weighing display can be located outside the direct powder path.

Customer Product Concerns

Dispensing combines open powder handling, weighing and container movement, so the airflow zone must remain clear around bulky equipment.

Operators lean deep into drums to reach remaining powder.An integrated tilter raises and angles the drum toward the handling zone.

Pallets block the low return grilles.Floor rails and pallet stops preserve the designed return-air clearance.

Loose bags and tools crowd the balance surface.Separate staging shelves organize source, receiving and completed containers.

Powder coats exposed display controls.A flush remote display keeps controls outside the direct dispensing plume.

Typical Applications

Batch ingredient dispensingRaw-material subdivisionPre-weighed kit preparationPowder container repacking

Technical Parameters

Typical configurable construction ranges for a pharmaceutical dispensing booth are listed below.

Core Material	Mineral-wool insulated booth panels with SUS304 inner liners, return plenums and handling rails
Panel Thickness	50-100 mm insulated booth panels
Effective Width	1800-4000 mm clear dispensing width
Maximum Length	Up to 6000 mm booth depth
Steel Facing Thickness	1.0-1.5 mm SUS304 inner facing; 0.8-1.2 mm coated outer facing
Core Density	80-120 kg/m³ mineral-wool core
Thermal Conductivity	0.035-0.045 W/(m·K) for the mineral-wool core
Surface Finish	Brushed SUS304 process zone with sealed white powder-coated exterior
Joint Type	Flush sealed panel joints with welded low-return plenums and reinforced equipment interfaces
Customization	Available based on the intended application and operating environment.

Available Options

Drum lift or tilterIntegrated floor scaleSafe-change filtersPallet stops and mobile workbench
