Personnel and Material Decontamination Equipment
Personnel Decontamination Shower
A walk-through wash chamber for complete personnel rinsing between a controlled work area and a changing room.
- Full-Body Wash Coverage
- Thermostatic Water Control
- Privacy-Safe Door Logic
- Raised Drain Grate
Product Introduction

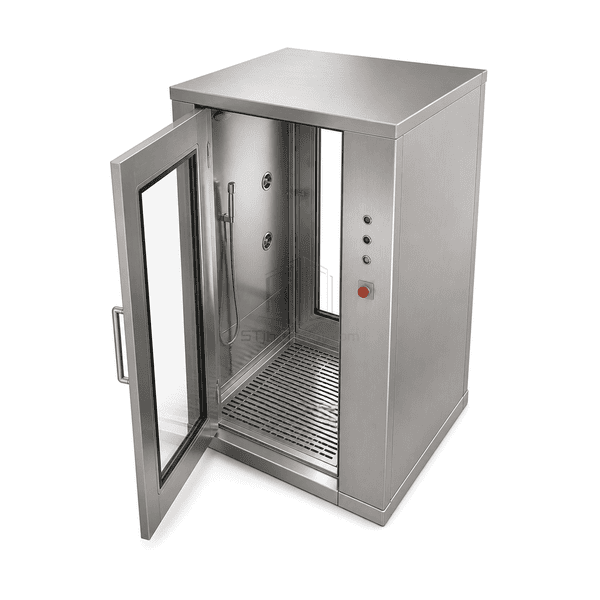

The personnel decontamination shower provides an enclosed wash stage rather than only a garment wet-down. Overhead, side and hand-held outlets support practical cleaning of body or protective clothing, while a thermostatic valve stabilises the water supply. The drain pan remains below a removable anti-slip grate, and door logic maintains privacy while retaining emergency-release access.
Key Features

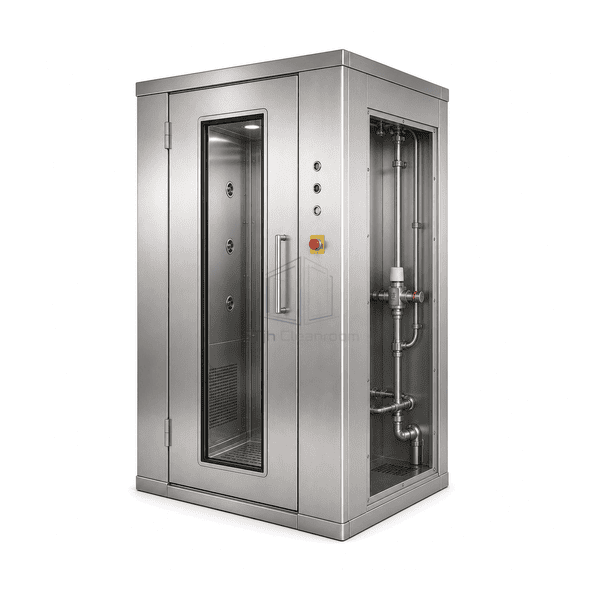

A thermostatic mixing valve moderates normal supply temperature variation.
Privacy mode keeps both doors secured during the wash stage.
A raised removable grate separates footwear from drained runoff.

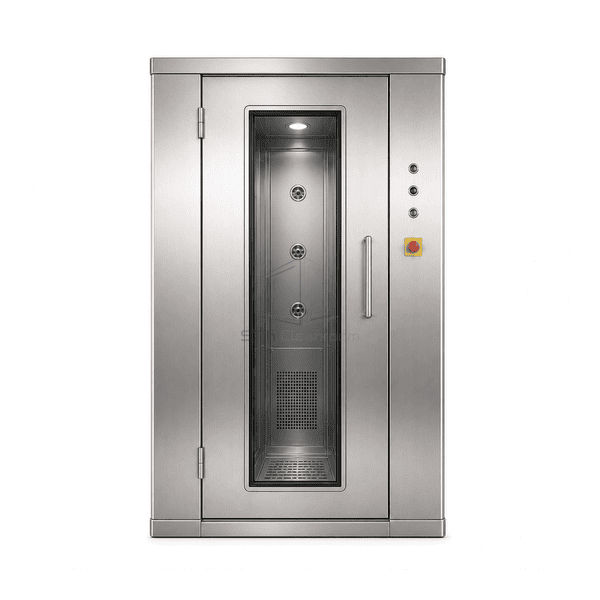

Wall controls and emergency release remain accessible inside the chamber.
Customer Product Concerns
A personnel wash stage must combine coverage, comfortable water control, privacy and reliable drainage.

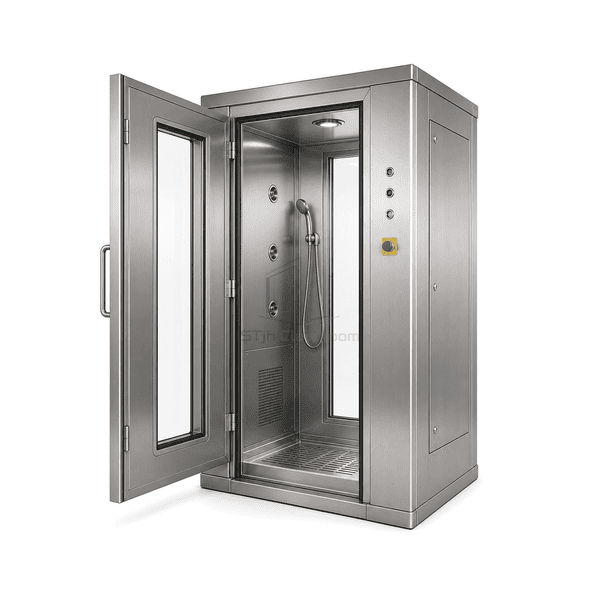

An overhead head does not wash boots, folds or the back of the legs.Side sprays and a flexible hand shower supplement the overhead outlet.
Supply changes make water uncomfortably hot or cold.A thermostatic valve stabilises outlet temperature.
Standard airlock timing conflicts with privacy during washing.A privacy sequence secures both doors while keeping emergency exit available.
Pool water contaminates footwear at the end of a wash.A graded pan drains below a removable raised grate.
Typical Applications
Containment laboratory exitsPharmaceutical de-gowning suitesToxic-dust hygiene stationsAnimal-research support rooms
Technical Parameters
Representative hygienic construction ranges for a personnel decontamination shower are listed below.
| Core Material | PIR-insulated SUS 304 or SUS 316L chamber with thermostatic water set, shower outlets and trapped drain |
|---|---|
| Panel Thickness | 75-100 mm insulated privacy enclosure panels |
| Effective Width | 1000-1500 mm clear internal width |
| Maximum Length | Up to 2500 mm walk-through length |
| Steel Facing Thickness | 1.2-1.5 mm stainless-steel internal facing |
| Core Density | 40-45 kg/m³ rigid PIR insulation |
| Thermal Conductivity | 0.021-0.026 W/(m·K) for the insulated panel core |
| Surface Finish | Brushed stainless steel with coved corners, non-slip grate and cleanable fittings |
| Joint Type | Liquid-tight flush seams with compression-gasketed privacy doors and sanitary water connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Tempered-water recirculationBench and garment hooksEmergency drench pull handleLow-threshold access configuration
Planning a Personnel Decontamination Shower specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
