Cleanroom Furniture and Stainless Steel Products
Pedal Cleanroom Waste Bin
A 50 L Type 304 stainless cleanroom waste bin with a hands-free blue foot pedal, damped hinged lid, removable blue inner bucket and enclosed mechanical linkage.
- Hands-free pedal opening
- Damped stainless lid
- Removable 50 L inner bucket
- Enclosed rear linkage
Product Introduction

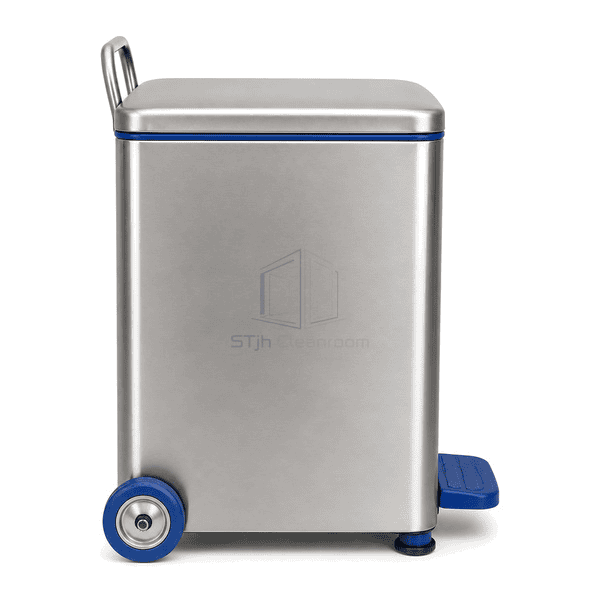

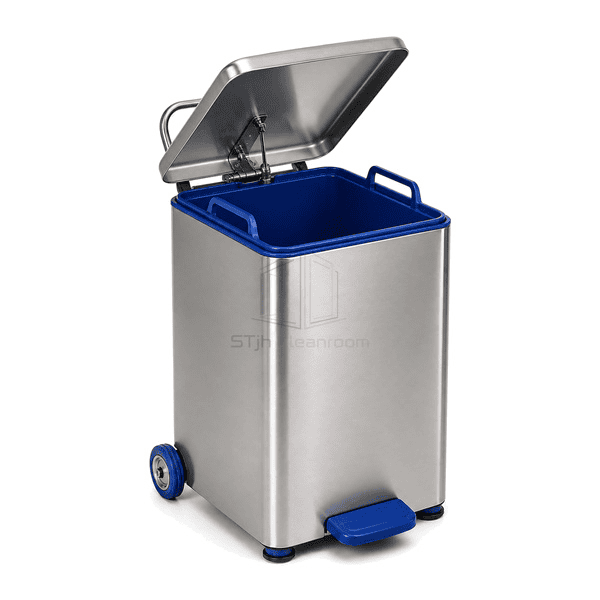

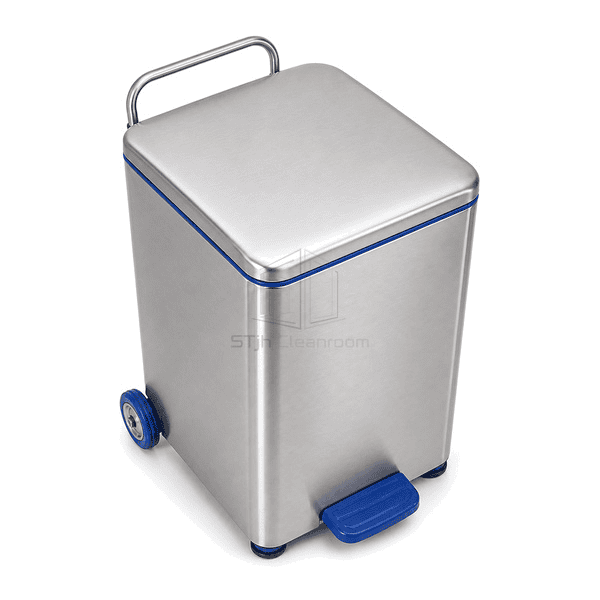

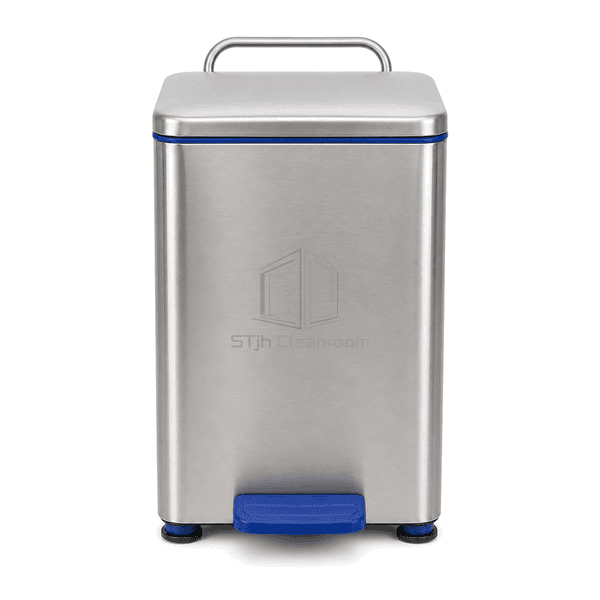

The pedal cleanroom waste bin provides closed, hands-free collection at workstations where operators cannot touch a lid between process steps. A wide cobalt-blue pedal moves an enclosed stainless linkage that lifts the lid through a controlled damper. The welded Type 304 outer shell has rounded vertical edges and surrounds a removable blue 50 L inner bucket with two lifting handles. Two small rear wheels and a stainless pull grip permit relocation while the front leveling pads keep the bin steady in use.
Key Features
The lid damper controls closing speed and reduces impact at the stainless rim.
A blue removable bucket isolates the waste liner from the welded outer shell.
Rear transport wheels lift only when the operator tilts the bin, leaving it stable during disposal.
Customer Product Concerns
Closed cleanroom disposal requires hands-free access, controlled lid movement and an inner container that can be removed without exposing the mechanical pedal linkage.
Operators contaminate gloves when lifting a waste lid by hand.The front pedal actuates the lid through a fully enclosed rear linkage.
A free-falling stainless lid closes loudly and traps the liner at the rim.A compact damper slows the final lid travel against the blue perimeter seal.
Cleaning the outer shell is difficult when loose waste contacts its corners.A rigid blue inner bucket lifts out by two handles before the shell is wiped.
Four freely swiveling wheels let a bin roll away when the pedal is pressed.Fixed front pads carry the operating load while rear transport wheels engage only when tilted.
Typical Applications
Cleanroom workstation waste collectionLaboratory glove and wipe disposalPharmaceutical gowning exitsMedical-device assembly stationsHygiene-controlled packaging rooms
Technical Parameters
Typical configurable specifications for a shrouded pedal-operated cleanroom waste bin are listed below.
| Core Material | Type 304 stainless outer shell and lid with blue HDPE inner bucket, silicone seal and non-slip pedal |
|---|---|
| Panel Thickness | 1.0 mm welded outer shell and lid panels |
| Effective Width | 400 mm nominal body width |
| Maximum Length | 500 mm maximum depth including pedal and rear wheels |
| Steel Facing Thickness | 1.0 mm Type 304 shell; 1.5 mm pedal-linkage members |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless components |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless components |
| Surface Finish | Satin Scotch-Brite stainless shell with cobalt-blue pedal, seal and removable inner bucket |
| Joint Type | Continuous welded shell with pinned lid hinge, damped enclosed pedal linkage and lift-out inner bucket |
| Customization | Available based on the intended application and operating environment. |
Available Options
75 L or 90 L capacityType 316L stainless shellFour locking castersConductive inner bucket
Planning a Pedal Cleanroom Waste Bin specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
