Pass Box Door Gasket

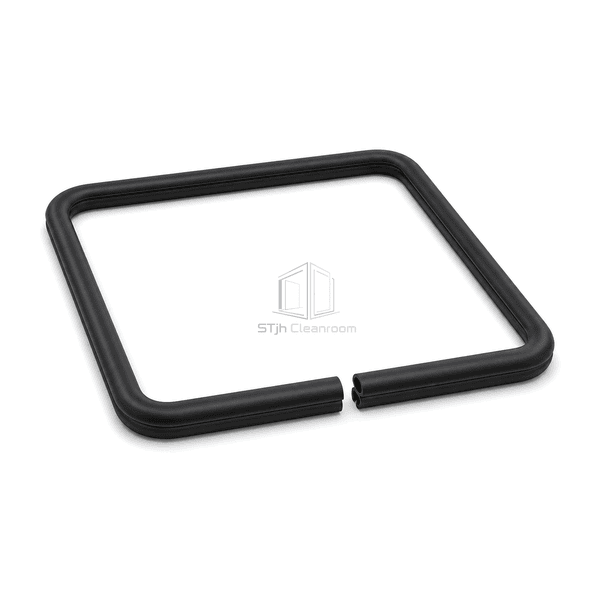

A continuous rounded EPDM bulb gasket that restores controlled compression around a pass box door perimeter.

Continuous Perimeter Seal
Compressible Hollow Bulb
Rounded Corner Geometry
Cleanable EPDM Surface

Request a Quote Browse Products

Product Introduction

The pass box door gasket forms the compressible perimeter interface between a transfer-chamber door and frame. Its hollow EPDM bulb deflects under latch pressure to accommodate small surface variation, while the carrier profile locates the seal along the mounting edge. Rounded corners reduce local stress and a single joined perimeter limits leakage paths. Replacement dimensions should match the existing groove or carrier, bulb height, compression allowance, corner radius and door closing force.

Key Features

A hollow bulb provides controlled recovery through repeated door cycles.

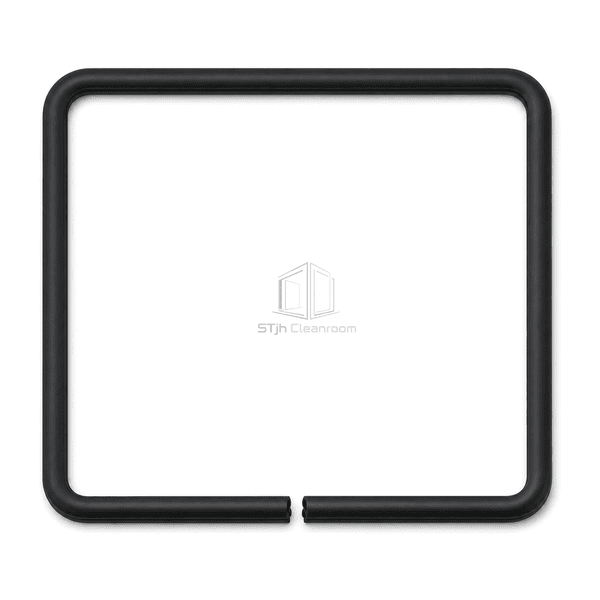

The continuous rectangular perimeter limits unnecessary joints in the sealing path.

Rounded corners avoid sharp folds that can restrict compression.

Dark EPDM provides a durable surface for routine cleanroom wipe-down.

Customer Product Concerns

Seal performance depends on matching the profile and applying even compression around the complete door perimeter.

An undersized bulb leaves gaps where the door or frame is slightly uneven.Bulb height and compression range are selected to maintain contact around the full perimeter.

Excessive compression increases latch force and permanently deforms the seal.The installed gap is matched to the profile so the bulb works within its normal deflection range.

Poor corner forming causes kinks and localized leakage.Rounded corners preserve a consistent hollow section and smooth contact line.

An incompatible carrier profile will not remain seated during cleaning and door movement.The base geometry is matched to the existing groove, adhesive bed or mechanical retainer.

Typical Applications

Static pass box doorsDynamic transfer chamber doorsMaterial hatch gasket replacementCleanroom cabinet perimeter sealing

Technical Parameters

Typical material and dimensional ranges for pass box EPDM bulb gaskets are shown below.

Core Material	Closed-skin EPDM elastomer with hollow compressible bulb and integral carrier
Panel Thickness	2-6 mm nominal carrier-wall thickness
Effective Width	10-35 mm nominal installed profile width
Maximum Length	Up to 6000 mm continuous cut length before joining
Steel Facing Thickness	0.3-0.8 mm optional embedded steel carrier thickness
Core Density	1050-1250 kg/m³ for solid EPDM profile sections
Thermal Conductivity	0.20-0.30 W/(m·K) for EPDM elastomer
Surface Finish	Smooth dark-charcoal non-marking extruded EPDM skin

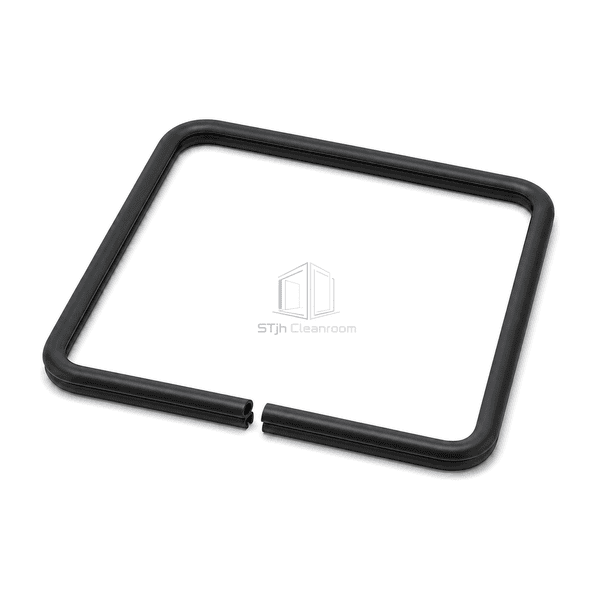

Joint Type	Single joined rectangular loop with rounded corners and hollow bulb-on-carrier cross-section
Customization	Available based on the intended application and operating environment.

Available Options

Alternative bulb diameterAdhesive-backed or push-fit carrierCustom corner radiusFactory-spliced perimeter loop

Planning a Pass Box Door Gasket specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
