Cleanroom Cleaning, Disinfection and Sterilization
Ozone Generator

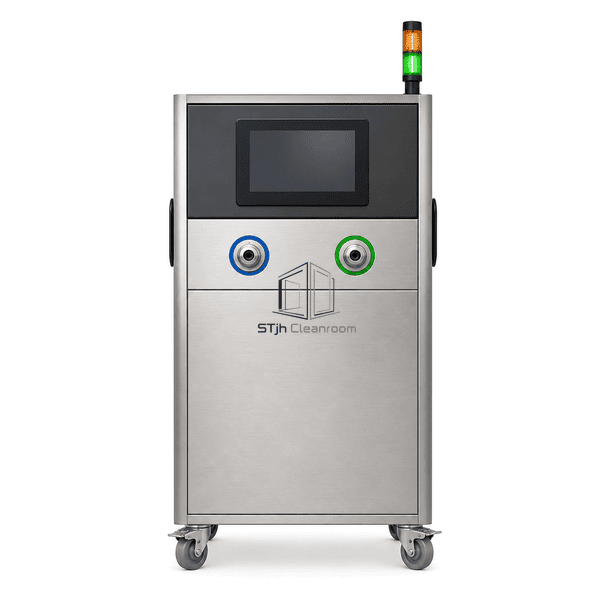

Industrial corona-discharge ozone generator with integrated oxygen feed, adjustable gas output and safety-monitor interfaces for sealed-room treatment.
- Stable corona-discharge ozone production
- Integrated oxygen concentrator and dryer
- Remote control and ambient-monitor interlocks
Product Introduction

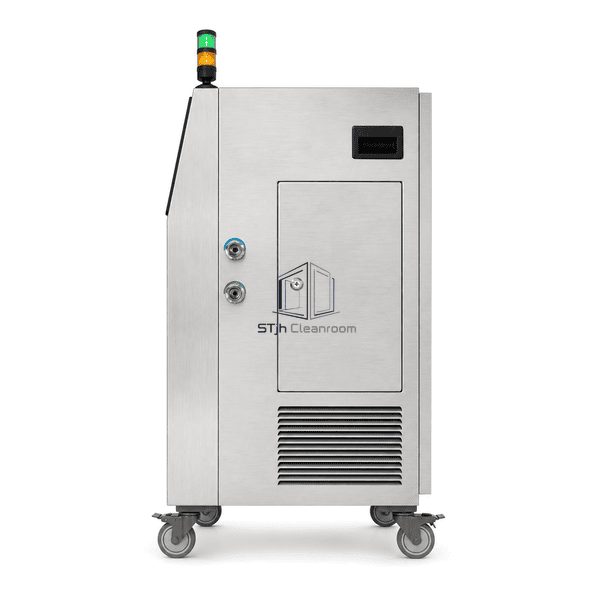

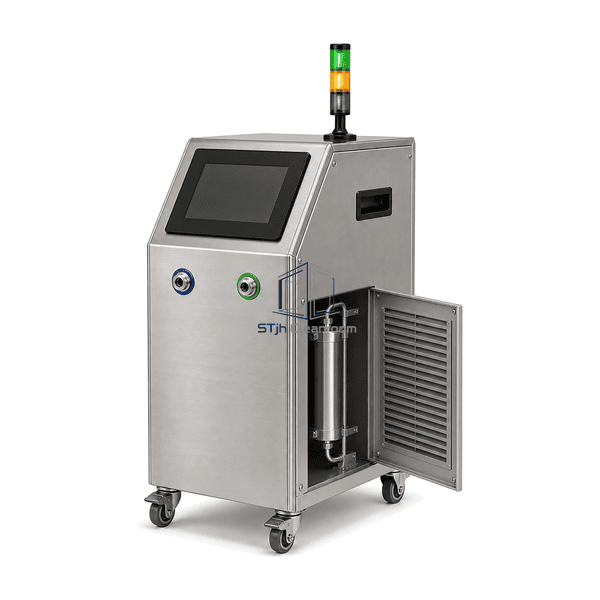

The Ozone Generator feeds dry oxygen-enriched gas through a corona-discharge cell and delivers adjustable ozone through an oxidation-resistant outlet. Integrated cooling and gas drying stabilize production, while a sealed controller manages output and timed cycles. Connections for ambient ozone sensors, remote shutdown and catalytic destruction support safe operation in sealed, unoccupied rooms followed by monitored ventilation.
Key Features
Adjustable output supports volume-based cycle development.
Stainless enclosure protects internal gas components.
Remote start keeps operators outside the treatment area.
Sensor interlock can stop output at defined conditions.

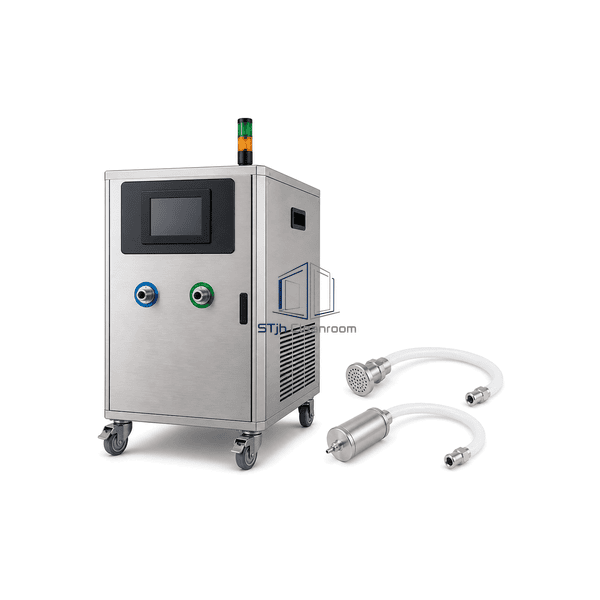

Catalyst connection supports controlled residual-gas removal.
Customer Product Concerns
The unit addresses moisture-sensitive ozone cells, unstable gas concentration, unsafe occupied-area exposure and difficult post-cycle ventilation.
Output instabilityOxygen enrichment and gas drying stabilize the corona cell.
Material attackPTFE tubing and compatible stainless fittings form the ozone path.
Personnel exposureRemote start and ambient-monitor interlocks support exclusion controls.
Residual ozoneCatalyst connection and ventilation phase aid controlled gas reduction.
Typical Applications
Unoccupied cleanroom treatmentHVAC duct oxidation cyclesPharmaceutical support roomsFood and cosmetic production areasControlled odor and residue remediation
Technical Parameters
The ranges below represent compact air-cooled ozone systems configured for controlled, unoccupied enclosed-space treatment.
| Core Material | Stainless cabinet with ceramic dielectric ozone cell and PTFE gas tubing |
|---|---|
| Panel Thickness | 1.0-1.5 mm enclosure panel thickness |
| Effective Width | 500 mm nominal unit width |
| Maximum Length | 800 mm nominal cabinet length |
| Steel Facing Thickness | 1.2 mm nominal Type 304 stainless facing |
| Core Density | 7900 kg/m³ nominal stainless-steel density |
| Thermal Conductivity | 15 W/(m·K) nominal for stainless enclosure structure |
| Surface Finish | Brushed stainless exterior with sealed control interface |
| Joint Type | Compression gas fittings with locking ozone outlet coupling |
| Customization | Available based on the intended application and operating environment. |
Available Options
5-100 g/h ozone outputIntegrated or external oxygen concentratorAmbient ozone sensor packageCatalytic destruction moduleWall-mounted or mobile cabinet
Planning a Ozone Generator specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
