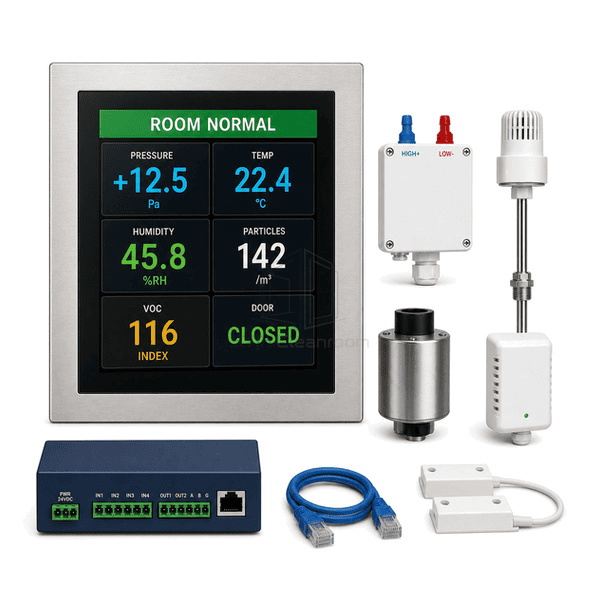

Complete multi-parameter cleanroom display with stainless bezel and colorful sensor tiles

Cleanroom Control and Environmental Monitoring Systems

Multi-Parameter Environmental Display

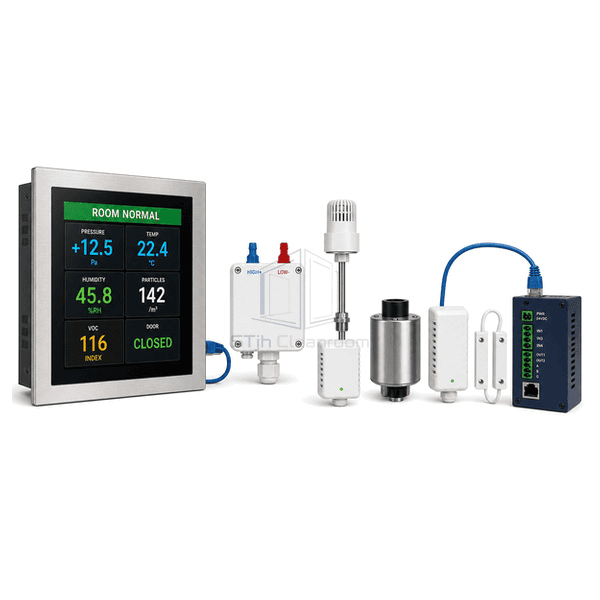

A configurable room touchscreen that combines pressure, temperature, humidity, particles, gases and door status on one cleanroom entrance interface.

Configurable Sensor Tiles
Overall Room Status
Trend and Alarm Views
Networked Data Integration

Request a Quote Browse Products

Product Introduction

The multi-parameter environmental display presents measurements from local inputs or the cleanroom monitoring network as configurable tiles. Essential room conditions remain on the primary page, while trend, alarm history and sensor details are available without crowding the overview. A prominent overall status banner summarizes whether all configured parameters are within their limits. The display can receive pressure, temperature, humidity, particle, gas, occupancy and door signals, making it suitable for rooms that need more context than a dedicated single-variable monitor.

Key Features

Configurable tiles let each room prioritize its actual environmental and access parameters.

An overall status banner summarizes multiple limits without hiding the individual values.

Local trends reveal whether an alarm is transient, recovering or progressively worsening.

Network and hardwired inputs combine legacy instruments with modern digital sensors.

Customer Product Concerns

Adding more sensor values can make a display harder to use unless the layout preserves priority and clear alarm context.

A crowded screen makes critical room pressure hard to find.Configurable tile size and order keep the most important variables visually dominant.

One abnormal parameter is hidden among many normal numbers.The overall banner and color-coded tile isolate the active alarm immediately.

New sensors require replacing the existing wall display.Modular analog and network inputs allow the parameter set to expand without changing the front hardware.

Operators see the alarm but cannot tell whether conditions are improving.Short local trends show direction and recovery directly at the room entrance.

Typical Applications

Critical pharmaceutical roomsBiocontainment laboratoriesHigh-specification cleanroomsMulti-sensor airlocks

Technical Parameters

Typical construction values for a multi-parameter cleanroom environmental display are shown below.

Core Material	Industrial touchscreen behind tempered glass with 304 stainless steel bezel and FR-4 I/O electronics
Panel Thickness	55-110 mm display depth
Effective Width	250-500 mm front bezel width
Maximum Length	Up to 650 mm bezel dimension
Steel Facing Thickness	1.0-1.5 mm 304 stainless steel bezel
Core Density	7900-8030 kg/m³ for stainless bezel components
Thermal Conductivity	14-17 W/(m·K) for 304 stainless steel bezel
Surface Finish	Brushed stainless bezel with black glass and multicolor sensor-status tiles

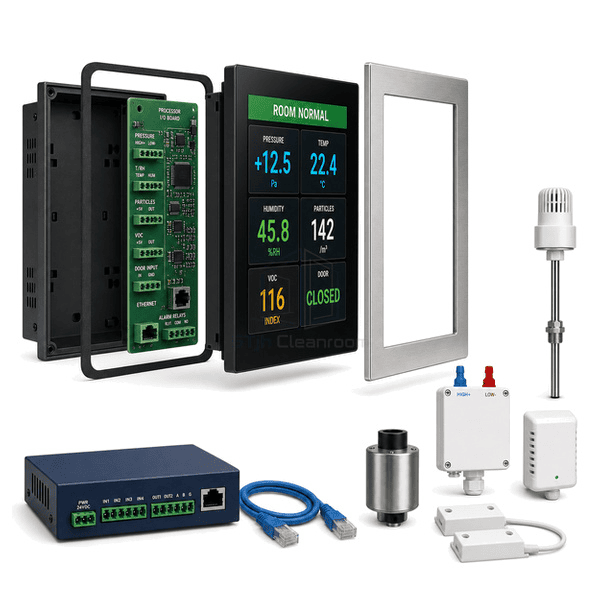

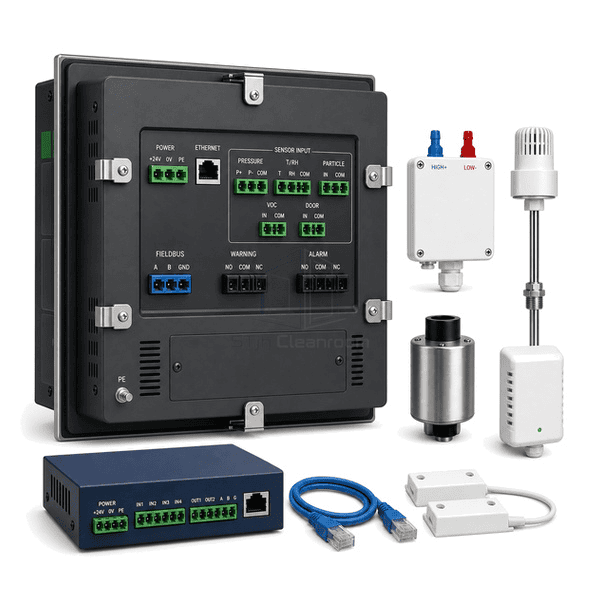

Joint Type	Flush wall cassette with gasketed front, modular I/O terminals and Ethernet connector
Customization	Available based on the intended application and operating environment.

Available Options

Pressure, T-RH, particle and gas inputsConfigurable room tile layoutsTouch or view-only modeEthernet, BACnet or Modbus
