Cleanroom Furniture and Stainless Steel Products

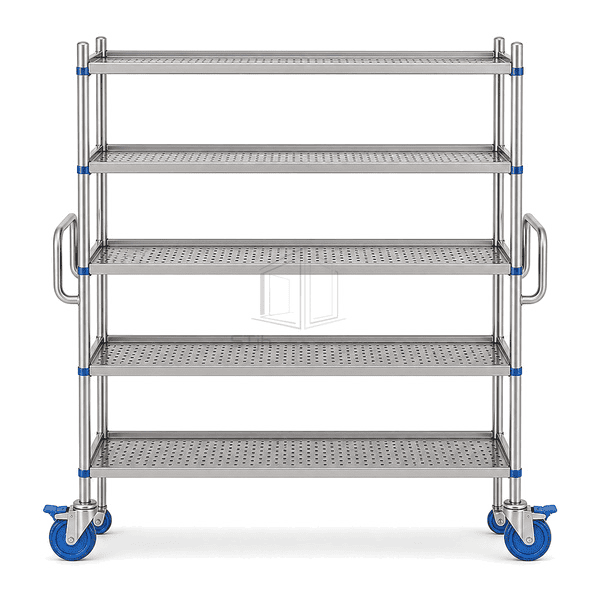

Mobile Cleanroom Rack
A tall Type 304 stainless transport rack with five adjustable perforated shelves, twin push handles and blue polyurethane locking casters for organized movement inside clean production areas.
- Five perforated stainless shelves
- Twin ergonomic push handles
- 125 mm polyurethane casters
- Two total-lock wheel brakes
Product Introduction

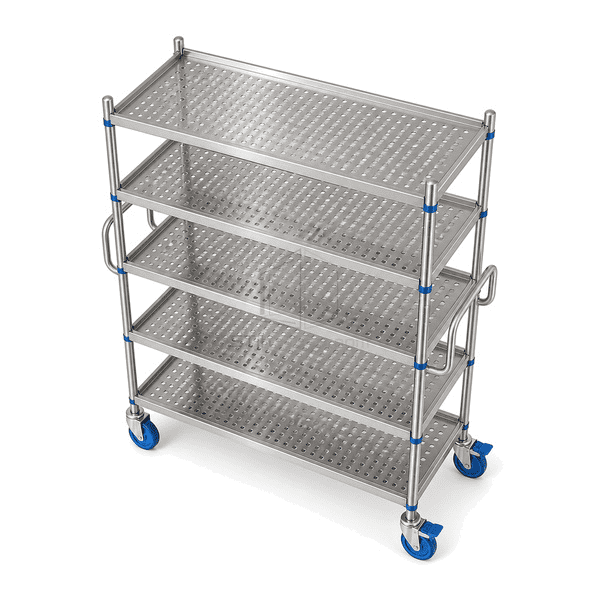

The mobile cleanroom rack provides five perforated Type 304 stainless shelves on a tall four-post frame sized for totes, sealed component trays and packaged consumables. Perforations reduce horizontal obstruction to room airflow and leave the underside of each stored load visible. Twin rounded handles are welded to the narrow ends so operators can steer from either direction without gripping a shelf edge. Four 125 mm blue polyurethane casters use stainless forks; two total-lock brakes secure both wheel rotation and swivel during loading. Adjustable post collars permit the shelf clearances to be matched to the carried inventory.
Key Features

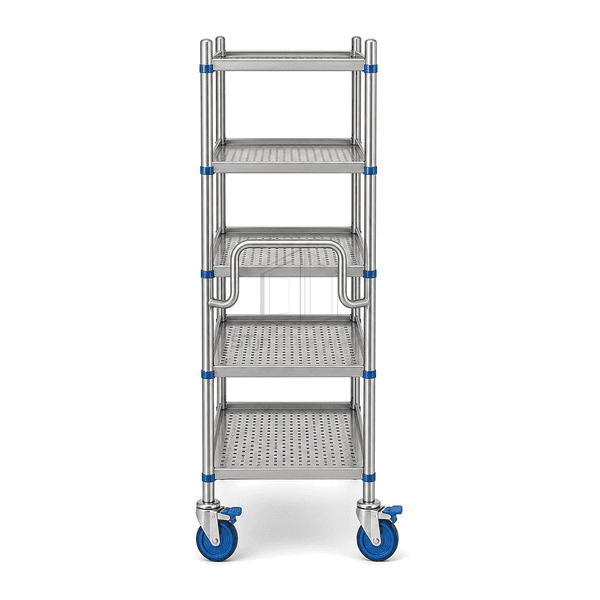

Handles on both narrow ends keep hands away from stored materials and allow direction changes in restricted aisles.
Blue polyurethane wheels roll quietly without the dark marking associated with common rubber casters.
Two total-lock casters arrest both swivel and wheel rotation, keeping the tall rack stable while containers are transferred.
Customer Product Concerns
Mobile vertical storage must carry multiple tray levels while remaining steerable, cleanable and stable at the point of loading.
Separate trips are required when trays are staged on small two-level carts.Five independently spaced shelves consolidate multiple tote or package levels on one narrow mobile rack.
Operators touch shelf edges and stored packs when a rack has no dedicated handle.Rounded stainless handles on both ends provide defined steering points away from the load.
A tall rack pivots or creeps while containers are transferred at an upper level.Two total-lock polyurethane casters immobilize both wheel and swivel mechanisms during stationary use.
Solid mobile shelves interrupt downward airflow and hide debris beneath stored trays.Regular perforations preserve air passage and make each shelf underside visible during inspection.
Typical Applications
Packaged component transfer between cleanroom stationsSealed tote staging beside production linesSterile consumable replenishmentMedical-device work-in-process transportClean utility-room inventory movement
Technical Parameters
Typical configurable specifications for a five-level mobile stainless cleanroom rack are listed below.
| Core Material | Type 304 stainless four-post rack with five perforated shelves, twin tubular push handles and four 125 mm blue polyurethane casters |
|---|---|
| Panel Thickness | 1.2 mm perforated shelf pans with reinforced formed edges |
| Effective Width | 1220 mm overall rack width excluding end handles |
| Maximum Length | 1750 mm maximum overall height including casters |
| Steel Facing Thickness | 1.2 mm Type 304 stainless shelf pans and 1.5 mm tubular post walls |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Brushed Type 304 stainless frame and perforated shelves with cobalt-blue non-marking polyurethane wheel treads |

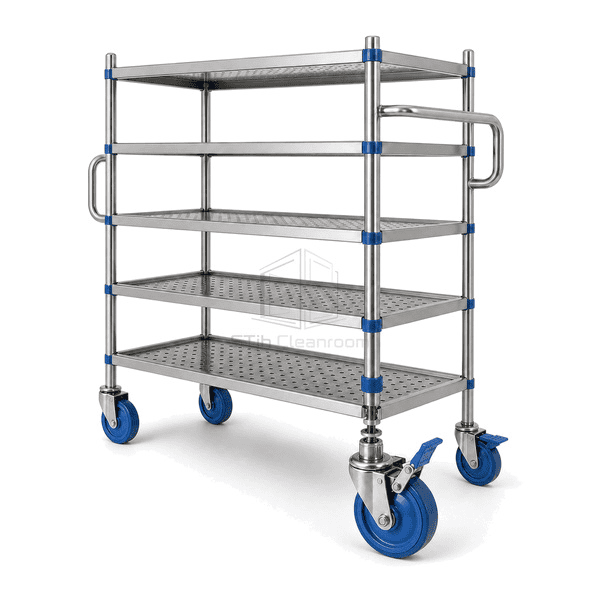

| Joint Type | Tapered adjustable shelf collars on split post sleeves, welded end handles and stainless stem-mounted swivel casters with two total locks |
| Customization | Available based on the intended application and operating environment. |
Available Options
Solid or wire shelf combinationsStatic-dissipative caster packageRemovable stainless shelf ledgesClear cleanroom cover
Planning a Mobile Cleanroom Rack specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
