Microbiological Environmental Monitoring Products

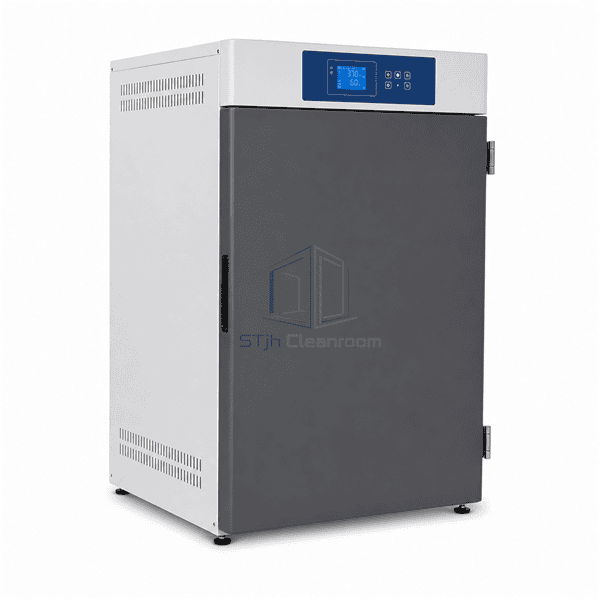

Microbiological Incubator
A temperature-controlled laboratory chamber with uniform convection and adjustable shelving for reliable incubation of environmental monitoring media.
- Stable Temperature Control
- Stainless Inner Chamber
- Adjustable Convection
- Overtemperature Protection
Product Introduction

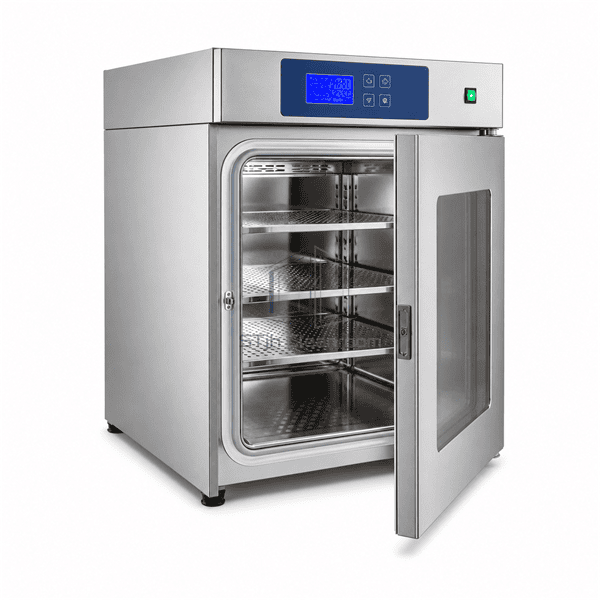

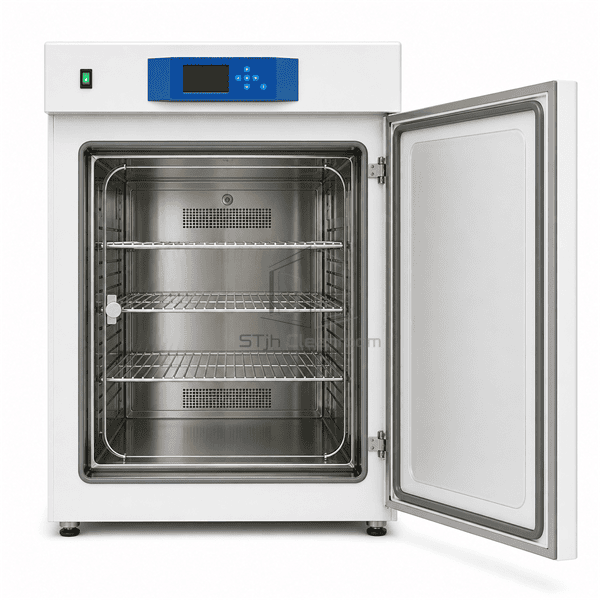

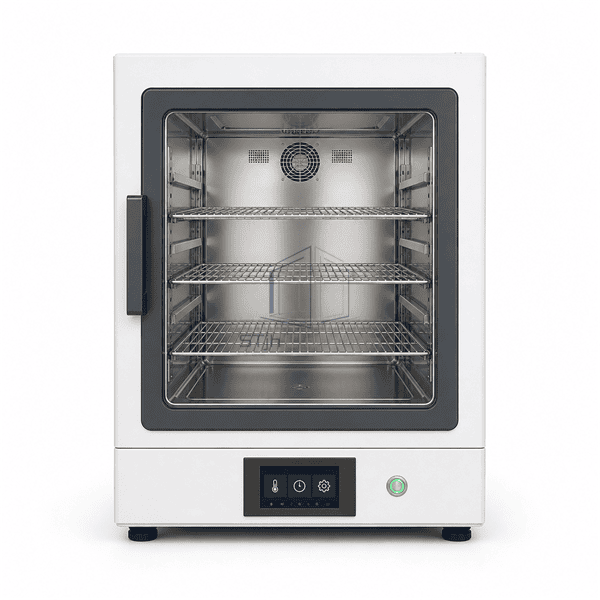

The Microbiological Incubator provides a stable heated environment for culture plates, tubes and microbiology vessels. An insulated cabinet surrounds a corrosion-resistant stainless chamber with adjustable shelves, while controlled gravity or mechanical convection distributes heat. Digital setpoint control, independent overtemperature protection and an accessible door system support repeatable daily incubation workflows.
Key Features
A smooth stainless-steel interior simplifies routine wiping and spill cleanup.
Adjustable shelves accommodate contact plates, settle plates, bottles and tube racks.
Independent alarm and overtemperature functions protect samples from control deviation.
Customer Product Concerns
Incubation must maintain a repeatable thermal environment without overcrowding, drying media or exposing cultures during observation.
Temperature gradients create inconsistent colony recovery between shelves.Controlled convection and calibrated sensing improve chamber uniformity.
Fixed shelf positions waste capacity for mixed vessel sizes.Multiple adjustable shelf rails allow flexible loading patterns.
Spills and condensation make the chamber difficult to clean.Rounded stainless interior surfaces and removable shelves provide accessible cleaning.
Controller failure can overheat valuable monitoring samples.An independent temperature limiter and audible or visual alarm provide secondary protection.
Typical Applications
Environmental monitoring plate incubationMicrobial growth and enumerationQuality-control culture workFood pharmaceutical and research microbiology
Technical Parameters
Typical construction values for a benchtop microbiological incubator are listed below.
| Core Material | Insulated powder-coated steel cabinet with stainless-steel inner chamber |
|---|---|
| Panel Thickness | 35-60 mm nominal insulated cabinet wall |
| Effective Width | 180-600 mm usable chamber width |
| Maximum Length | Up to 800 mm external cabinet depth |
| Steel Facing Thickness | 0.8-1.2 mm cabinet and chamber sheet |
| Core Density | 35-50 kg/m³ for cabinet thermal insulation |
| Thermal Conductivity | 0.022-0.030 W/(m·K) for cabinet insulation |
| Surface Finish | White powder-coated exterior with smooth stainless-steel chamber |
| Joint Type | Hinged insulated door with compression gasket and adjustable shelf supports |
| Customization | Available based on the intended application and operating environment. |
Available Options
Gravity or mechanical convectionCompact or high-capacity chamberSolid or glass inner doorData port and monitoring output
Planning a Microbiological Incubator specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
