Microbiological Environmental Monitoring Products
Microbial Sampler Head

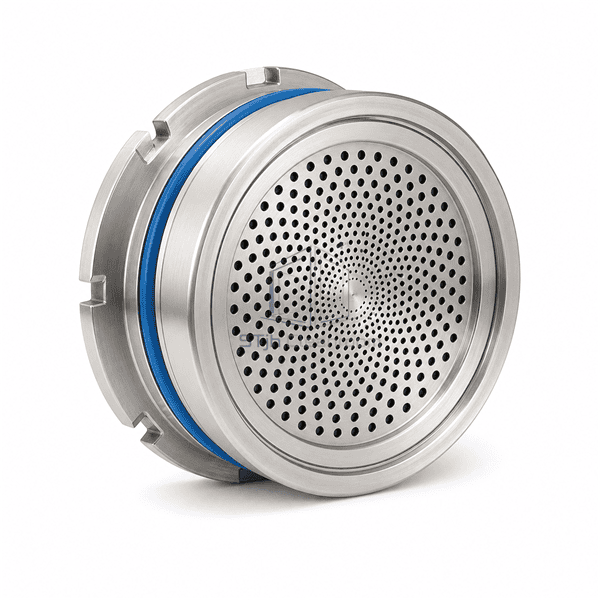

An electropolished stainless-steel sieve head that directs active-air samples uniformly onto prepared microbiological media.
- Precision Sieve Pattern
- Electropolished 316L Body
- Cleanable Sealed Joint
- Secure Bayonet Interface
Product Introduction
The Microbial Sampler Head is a removable flow-conditioning assembly for active viable-air monitoring. A precision perforated lid forms multiple controlled air jets over the culture medium, while the machined body maintains repeatable plate positioning and flow geometry. Electropolished stainless steel, a replaceable elastomer seal and a positive mounting interface support cleaning, decontamination and routine controlled-area use.
Key Features
Electropolished 316L stainless steel resists common cleanroom disinfectants.
A removable lid and accessible surfaces simplify cleaning and sterilization.

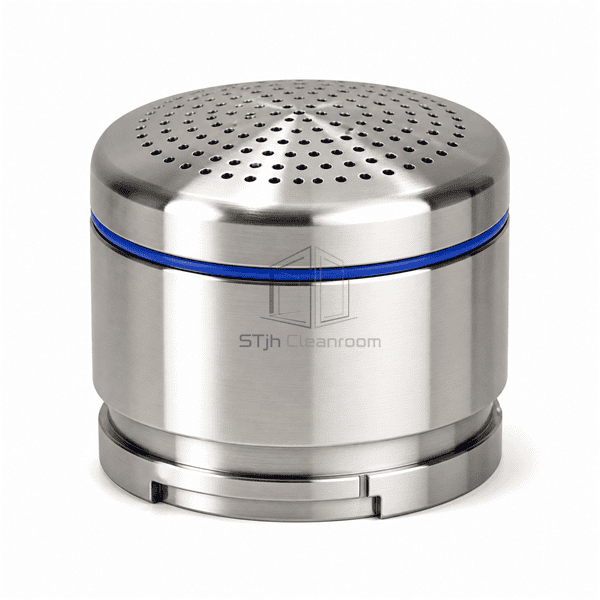

Bayonet or threaded mounting keeps the head stable during calibrated sampling.
Customer Product Concerns
The sampling head must preserve collection efficiency while remaining cleanable, securely mounted and geometrically repeatable.

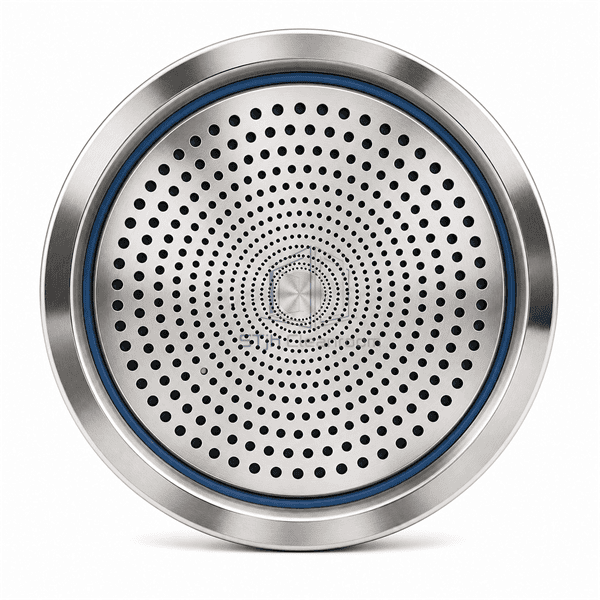

Uneven air jets overload one area of the agar plate.A concentric precision-hole pattern spreads impaction over the usable collection surface.
Residue trapped in rough metal surfaces compromises cleaning.Electropolished stainless steel provides a smooth accessible product-contact finish.
Head movement changes the air path during a sample cycle.A positive bayonet or threaded interface locates the head securely on the sampler.

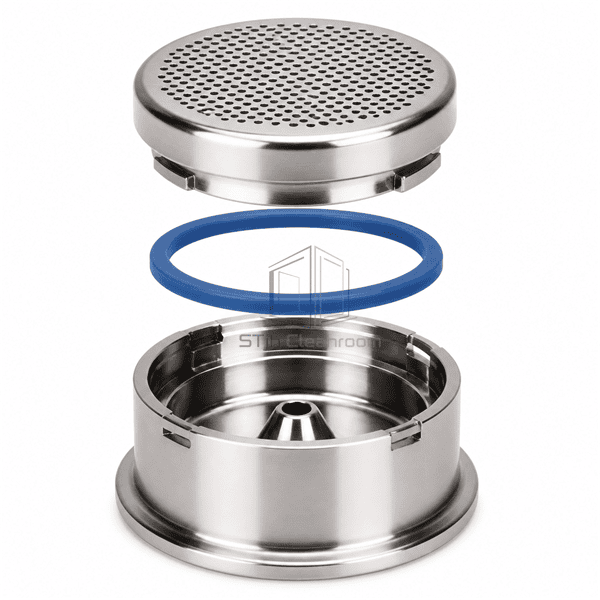

Repeated sterilization degrades sealing performance.A replaceable silicone O-ring maintains a defined cleanable joint.
Typical Applications
Active cleanroom air monitoringIsolator and RABS samplingPortable viable-air sampler accessoriesRemote fixed sampling points
Technical Parameters
Typical construction values for a stainless-steel active-air microbial sampler head are listed below.
| Core Material | Electropolished 316L stainless steel with silicone sealing ring |
|---|---|
| Panel Thickness | 2-4 mm nominal sieve plate thickness |
| Effective Width | 90-100 mm nominal collection-head diameter |
| Maximum Length | Up to 120 mm overall head diameter |
| Steel Facing Thickness | 1.5-3.0 mm machined stainless body wall |
| Core Density | 7900-8000 kg/m³ for 316L stainless steel |
| Thermal Conductivity | 14-16 W/(m·K) for 316L stainless steel |
| Surface Finish | Electropolished silver finish with smooth crevice-minimized surfaces |
| Joint Type | Removable sieve lid with silicone seal and bayonet or threaded sampler mount |
| Customization | Available based on the intended application and operating environment. |
Available Options
Perforated impaction sieve headGelatin-filter sampling headBayonet or threaded mountingAutoclavable seal materials
Planning a Microbial Sampler Head specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
