Medical Hermetic Sliding Door

A flush medical sliding door that moves inward against its frame at the end of travel to compress the perimeter seal and control leakage in critical rooms.

Operating Theatre Entrance
Isolation Room Access
Stainless or HPL Finish
Manual or Automatic Drive

Request a Quote Browse Products

Product Introduction

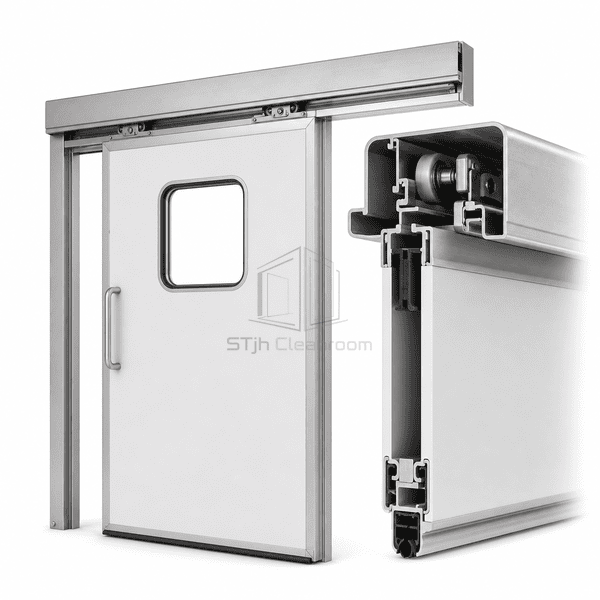

The Medical Hermetic Sliding Door combines a rigid hygienic sandwich leaf, wrap-around frame, precision track and continuous compression gaskets. During the final closing movement, guided rollers draw the leaf toward the frame and sill, producing a controlled seal without projecting hardware on the clean side. The smooth face tolerates routine wipe-down and can be supplied for manual or automatic operation with observation glazing, stainless protection and touchless activation.

Key Features

Final drop-and-inward travel compresses the head, jamb and sill seals instead of relying on loose brush contact.

Flush leaf faces and concealed fixings reduce ledges around operating-room and isolation-room entrances.

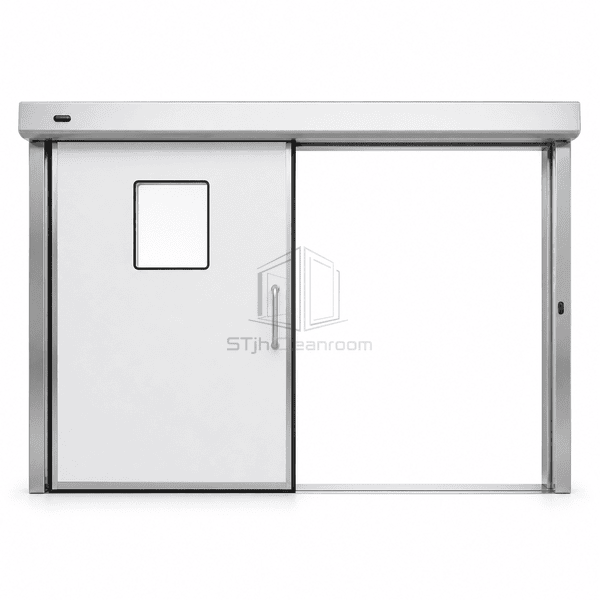

Heavy-duty top track carries the door without a contamination-trapping floor rail across the clear opening.

Adjustable automatic control supports low-energy opening, obstacle detection and configurable hold-open time.

Optional flush glazing gives staff visibility while retaining a continuous cleanable door face.

Customer Product Concerns

A conventional sliding leaf leaves uncontrolled gaps that disturb room pressure.Guided closing motion draws the leaf onto continuous compression seals at the frame and sill.

Floor tracks collect residues and interrupt trolley movement.The top-hung mechanism keeps the clear opening free from a recessed running rail.

Door faces with exposed beads and fasteners take longer to disinfect.Flush skins, concealed fixings and sealed vision panels form a continuous wipeable surface.

Heavy medical doors can close abruptly around staff and equipment.Frequency-controlled automation, presence sensors and adjustable travel profiles manage movement safely.

Typical Applications

Operating theatres and procedure roomsIsolation and quarantine roomsHospital sterile corridorsPharmaceutical dispensing suitesClinical laboratories with controlled pressure

Technical Parameters

Core Material	Aluminum honeycomb or rigid polyurethane foam within a sealed hygienic leaf
Panel Thickness	40–60 mm
Effective Width	800–2500 mm clear opening
Maximum Length	Up to 2700 mm clear opening height
Steel Facing Thickness	0.8–1.2 mm stainless or coated-steel face, depending on finish
Core Density	40–60 kg/m³ for polyurethane-core construction; honeycomb grade selected by leaf size
Thermal Conductivity	0.024–0.040 W/(m·K), depending on core and facing configuration
Surface Finish	Brushed 304 stainless steel, powder-coated steel, compact laminate or hygienic HPL

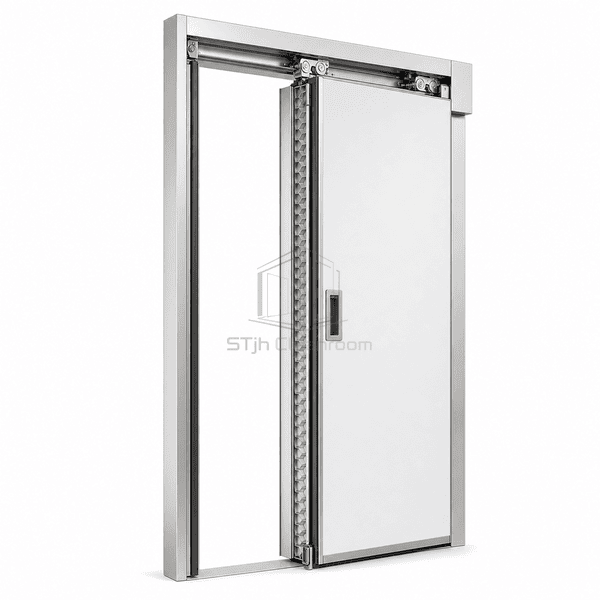

Joint Type	Top-hung sliding leaf with final drop-and-inward compression against continuous perimeter gaskets
Customization	Available based on the intended application and operating environment.

Available Options

Manual or automatic operationFlush double-glazed vision panelTouchless activation and access controlStainless kick plates or full stainless finish

Planning a Medical Hermetic Sliding Door specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
