Personnel and Material Decontamination Equipment
Laboratory Specimen Pass Box
A compact, interlocked stainless steel chamber with a removable tray for transferring labelled specimen containers.
- Dedicated specimen transfer route
- Raised-edge removable tray
- Visible door status
- Compact wall installation
Product Introduction

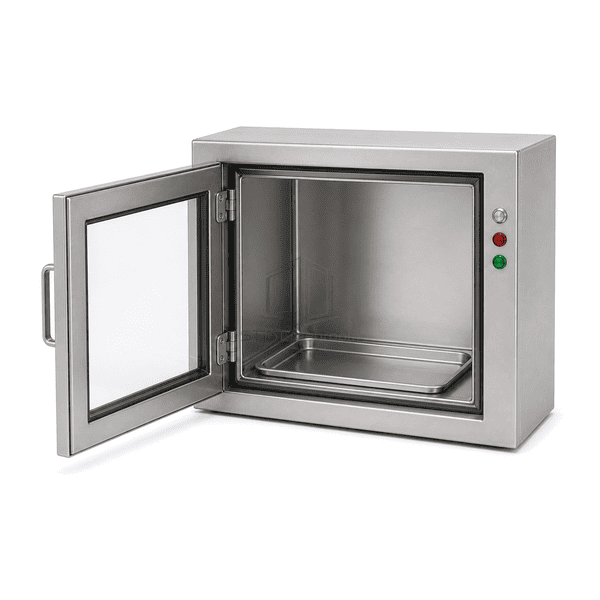

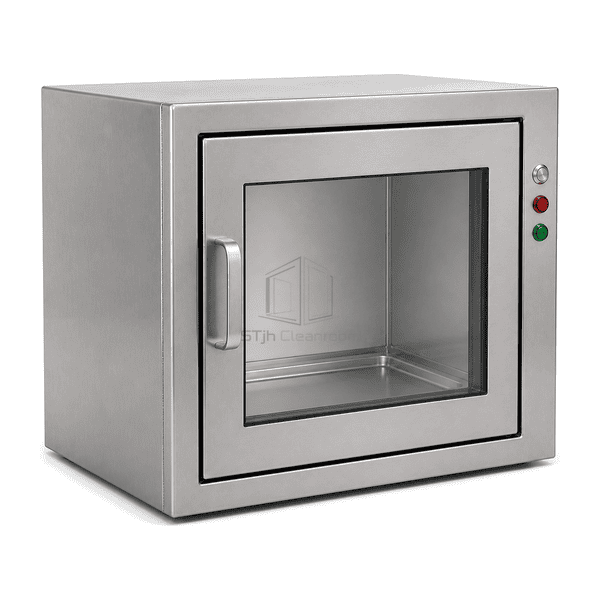

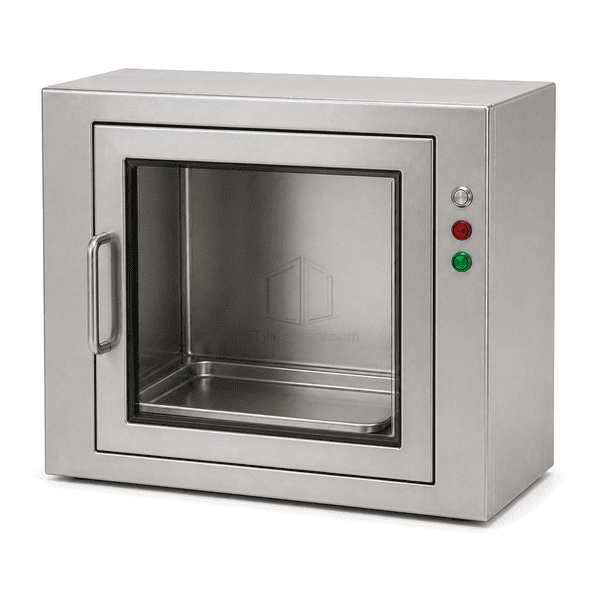

The Laboratory Specimen Pass Box provides a controlled handover point for sealed specimen containers and racks between collection and laboratory areas. A removable raised-edge tray supports the contents and can be cleaned separately if a container leaks. Interlocked doors, optional vision panels and side-specific indicators help receiving staff confirm the chamber state without converting a door opening into an informal collection point.
Key Features
Compact chamber proportions suit common specimen racks rather than bulk supplies.

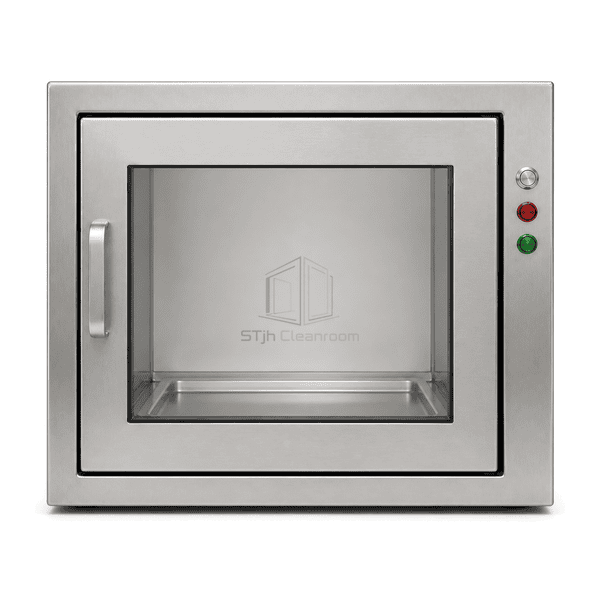

Status lamps can indicate occupancy and door availability from either side.
Vision-panel choices permit a contents check before the receiving door is opened.
Coved stainless surfaces support frequent wiping with compatible cleaning agents.
Customer Product Concerns
Specimen handover needs a defined physical route that protects room separation while keeping racks and small containers organised.
Sample racks are handed across an open counter or doorway.The interlocked chamber creates a closed transfer point between the two areas.
A minor leak contaminates a fixed shelf inside the unit.The raised-edge tray can be removed for separate cleaning or replacement.
Receiving staff repeatedly open the hatch only to check for an arrival.Vision panels and status indication show chamber occupancy without an opening.
Several labelled samples become disorganised during batch handover.Optional rack dividers and document holders separate transfer groups on the tray.
Typical Applications
Hospital specimen receptionPathology laboratoriesClinical trial sample transferDiagnostic testing roomsBiological research laboratories
Technical Parameters
The specimen pass box is normally configured around rack size, wall depth and the required transfer notification arrangement.
| Core Material | SUS304 stainless steel chamber, doors and removable spill tray |
|---|---|
| Panel Thickness | 1.0–1.2 mm stainless steel chamber and door panels |
| Effective Width | 300–600 mm clear chamber width |
| Maximum Length | 300–600 mm chamber depth |
| Steel Facing Thickness | 1.0–1.2 mm SUS304 |
| Core Density | 7900–8000 kg/m³ for stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for stainless steel |
| Surface Finish | Brushed or electropolished stainless steel with removable spill tray |
| Joint Type | Sealed coved chamber with gasketed electronically interlocked doors |
| Customization | Available based on the intended application and operating environment. |
Available Options
Clear or amber vision panelsSpecimen-arrival call indicatorRack divider insertDocument holder bracket
Planning a Laboratory Specimen Pass Box specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
