Microbiological Environmental Monitoring Products
Isolator Microbial Sampling System
A compact remote active-air sampling system with cleanable stainless satellite head and external control for isolators and RABS.
- Low-Profile Isolator Satellite
- Remote External Control
- VHP-Resistant Flow Path
- Protected Agar Plate Chamber
Product Introduction
The Isolator Microbial Sampling System places only a compact stainless sampling satellite inside the critical enclosure while keeping control and vacuum components outside. A perforated head directs sampled air onto a protected agar plate, and sealed tubing with backflow protection maintains the boundary. Autoclavable or VHP-compatible internal components support decontamination and reduce space demands near aseptic operations.
Key Features
External control reduces heat, service access and operator interaction within the barrier.
Electropolished stainless internal parts tolerate repeated decontamination workflows.

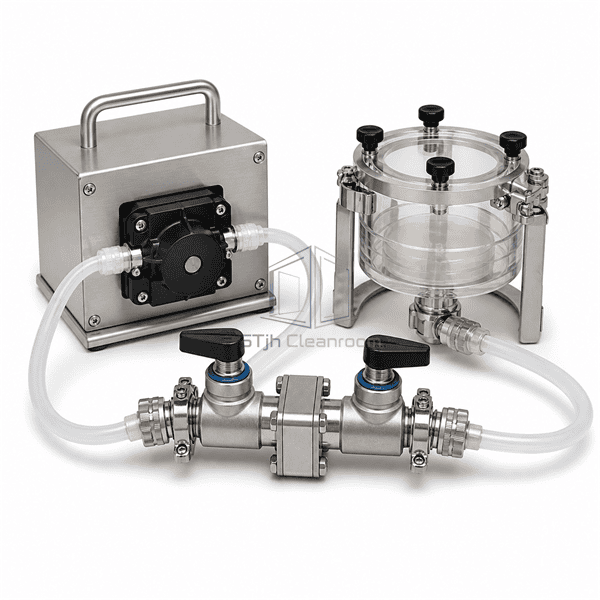

Double-valve and sealed hose options reduce reverse-flow contamination risk.
Customer Product Concerns
Barrier sampling must preserve containment, resist decontamination and occupy minimal critical-zone space while delivering representative air collection.

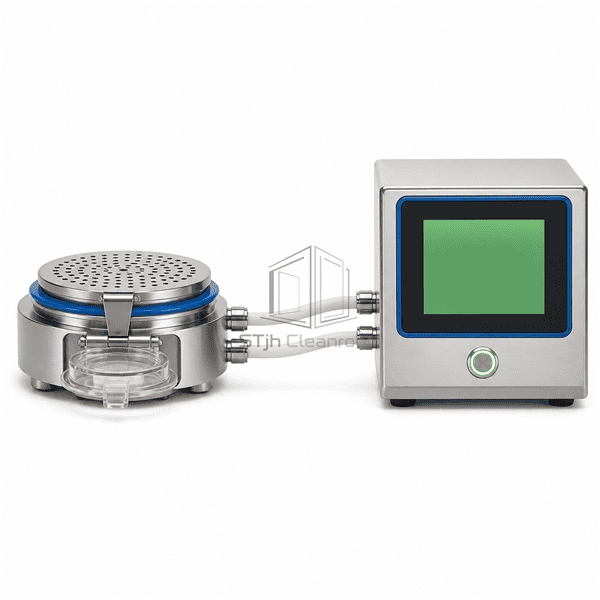

Conventional samplers consume valuable isolator working space.A low-profile satellite places only the sampling head and plate chamber inside.
Opening the barrier to operate equipment increases intervention risk.External controls and remote connections manage sampling without routine enclosure access.
VHP exposure damages unsuitable internal components.Stainless, silicone and selected engineered materials support isolator decontamination cycles.

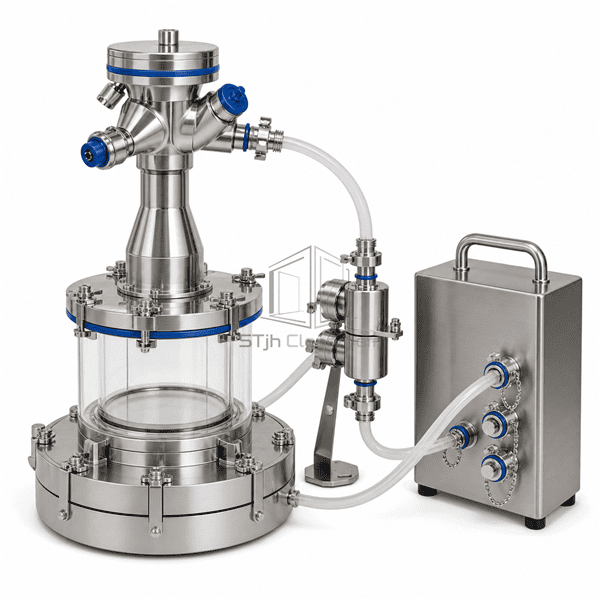

Air-line reversal can challenge the protected environment.A sealed flow path with backflow-protection valves maintains directional sampling.
Typical Applications
Isolator viable-air monitoringRABS filling-line samplingGrade A remote microbial collectionBarrier-system environmental monitoring
Technical Parameters
Typical construction values for a remote isolator microbial sampling system are listed below.
| Core Material | Electropolished 316L stainless satellite with silicone seals and VHP-compatible tubing |
|---|---|
| Panel Thickness | 2-4 mm nominal sampling-head and controller wall |
| Effective Width | 90 mm standard agar plate collection format |
| Maximum Length | Up to 20000 mm remote connection length |
| Steel Facing Thickness | 1.5-3.0 mm machined stainless sampling components |
| Core Density | 7900-8000 kg/m³ for stainless components |
| Thermal Conductivity | 14-16 W/(m·K) for stainless components |
| Surface Finish | Electropolished silver satellite with clear plate chamber and blue silicone seals |
| Joint Type | Sealed hose couplings with double backflow valve and removable sampling head |
| Customization | Available based on the intended application and operating environment. |
Available Options

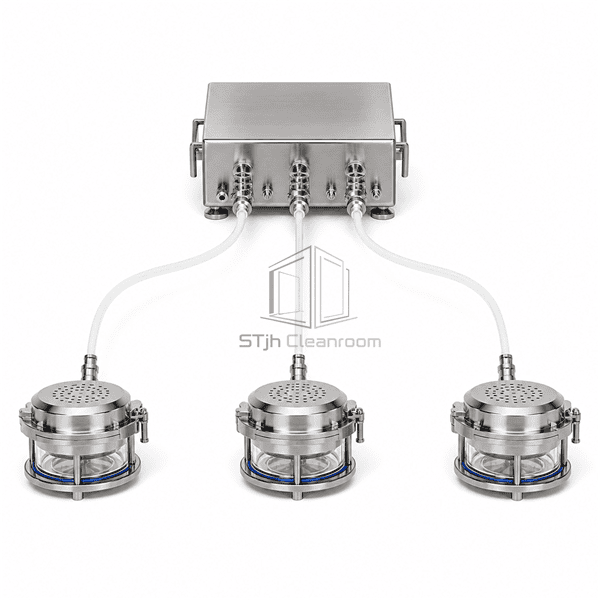

One to three sampling satellitesExternal vacuum or integrated pumpAutoclavable internal assemblyExtended remote connection cable and tubing
Planning a Isolator Microbial Sampling System specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
