ESD and Antistatic Products

Ionizing Air Blower

The Ionizing Air Blower is a compact single-fan benchtop unit that delivers balanced positive and negative ions across electronics assembly, inspection and clean manufacturing work areas.

Balanced ionized airflow neutralizes charge on parts and insulating materials without direct contact.
Adjustable U-shaped stand aims the single-fan output across a bench or into a compact process area.
Variable airflow and separate operating-status lamps support quick workstation setup and daily checks.

Request a Quote Browse Products

Product Introduction

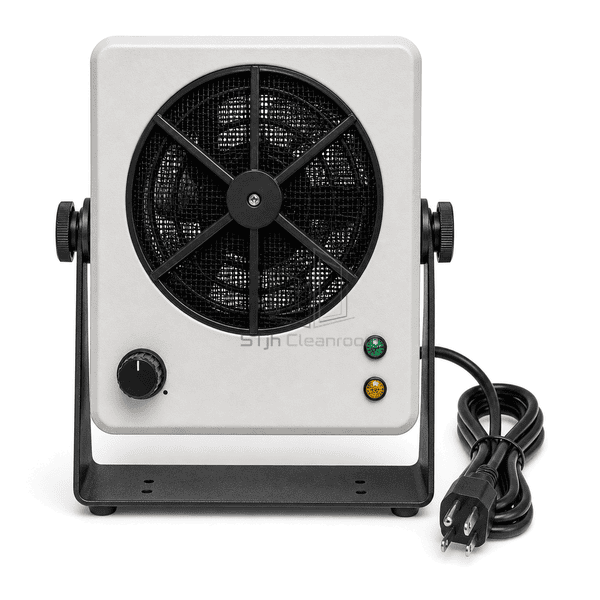

This blower combines a powder-coated steel enclosure, guarded axial fan and high-voltage ion-emitter assembly in an adjustable tabletop frame. The front rotary control regulates airflow, while separate green and amber indicators provide clear operating feedback. Tilting pivots on both sides allow the outlet to be aimed toward a work surface or component fixture. The rear grille provides service access to the fan and emitter region, and the integrated power cord supports portable workstation placement.

Key Features

Single guarded axial fan produces targeted airflow without occupying overhead space.

Positive and negative ion generation reduces electrostatic potential on conductors and insulators.

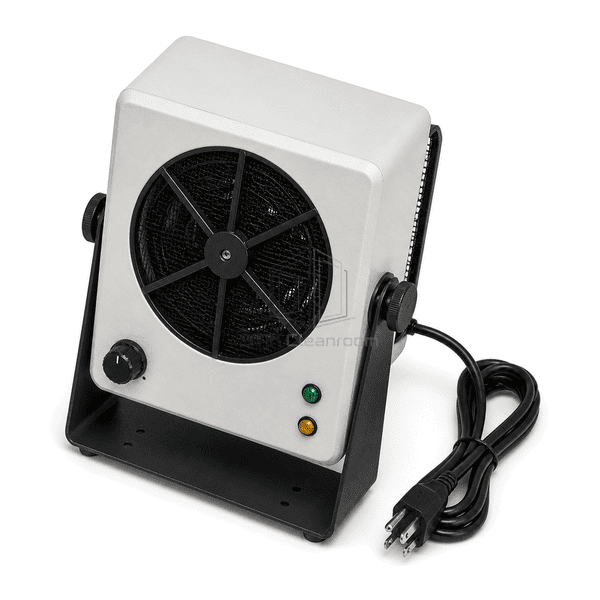

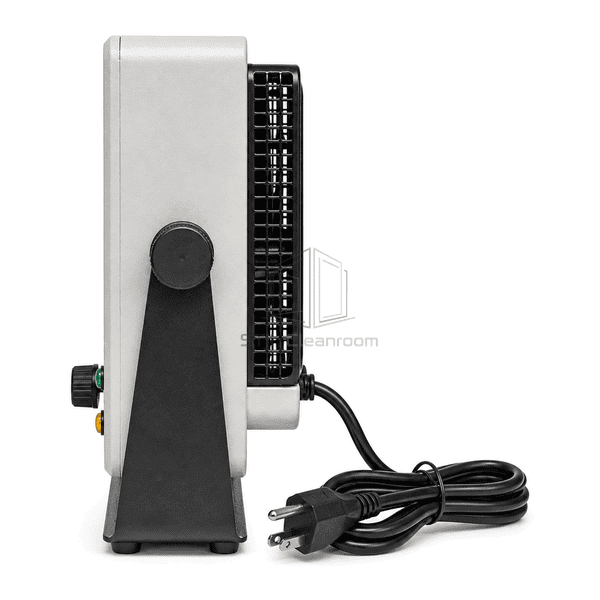

Side pivots hold the enclosure at a selected upward or downward working angle.

Front rotary control allows airflow to be matched to part size and operator comfort.

Two-color status indication separates normal operation from service or attention conditions.

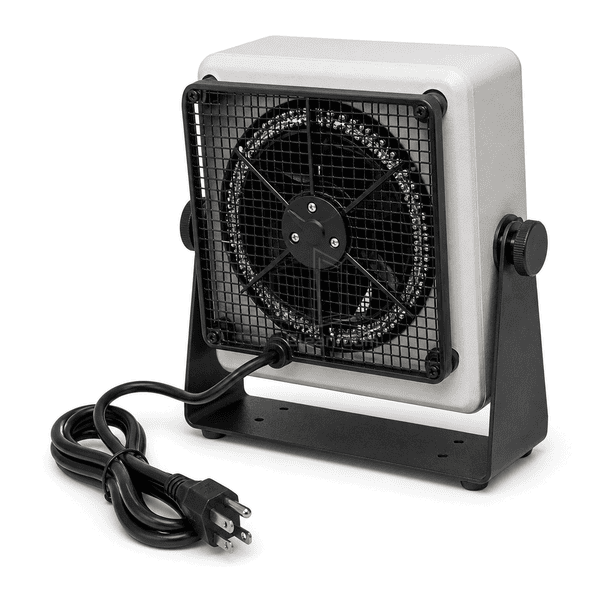

Open rear grille supports inspection and routine cleaning of the fan and emitter region.

Stable steel stand with rubber feet limits movement and vibration on the workbench.

Customer Product Concerns

Localized static charge often persists on insulating parts even when the operator and bench are grounded, so the ionizer must provide balanced coverage without disrupting the process.

Grounding alone cannot remove charge from plastics, films or isolated components.Balanced positive and negative ions neutralize either polarity on non-groundable surfaces.

Fixed airflow misses parts positioned above or below the fan centerline.The pivoting stand directs the outlet toward the actual handling zone.

Excessive airflow can move lightweight components or create operator discomfort.Variable fan control allows the air volume to be reduced while maintaining useful ion delivery.

Dirty emitter points gradually reduce neutralization performance.The accessible rear guard and visible emitter region simplify scheduled inspection and cleaning.

Operators may not notice an ionizer that is powered but requires attention.Separate status lamps provide an immediate visual operating indication at the workstation.

Typical Applications

Electronics assembly and PCB rework benches.Semiconductor-device inspection and handling stations.Medical-device and optical-component assembly.Packaging areas for static-sensitive parts and films.Compact clean manufacturing cells and process-tool loading points.Laboratory weighing, sample preparation and instrument work areas.

Technical Parameters

The representative configuration below suits point-of-use static neutralization at assembly and inspection stations. Supply voltage, fan capacity, ion-balance control, alarms, heating and monitoring outputs can be selected for the destination facility and required coverage.

Core Material	Powder-coated steel enclosure and stand with flame-retardant polymer fan guard and stainless-steel emitter points
Panel Thickness	1.0–1.5 mm enclosure-panel thickness
Effective Width	170–300 mm nominal ionized-air outlet width
Maximum Length	Up to 320 mm enclosure depth including stand and rear guard
Steel Facing Thickness	1.0–1.5 mm powder-coated steel facing thickness
Core Density	7800–8000 kg/m³ steel enclosure-material density
Thermal Conductivity	14–17 W/(m·K) for the stainless-steel emitter and enclosure components
Surface Finish	Neutral off-white textured powder coat with matte black grille, controls and adjustable stand
Joint Type	Pivot-mounted single-fan enclosure with guarded emitter assembly and integrated power-cord connection
Customization	Available based on the intended application and operating environment.

Available Options

100–120 VAC or 220–230 VAC power configuration.Self-balancing or adjustable ion-balance control.Emitter-point cleaning mechanism.Removable fan filter for controlled environments.Audible alarm and facility-monitoring output.Heater-assisted airflow for operator comfort.Alternative stand, machine-mount bracket and cord length.
