Industry-Specific Cleanroom Equipment

Hygiene Turnstile

A stainless access-control pedestal that releases its three-arm turnstile only after a valid two-hand disinfection cycle.

Dual-Hand Sensor Chamber
Motorized Three-Arm Gate
Cycle-Verified Release
Hygienic Stainless Housing

Request a Quote Browse Products

Product Introduction

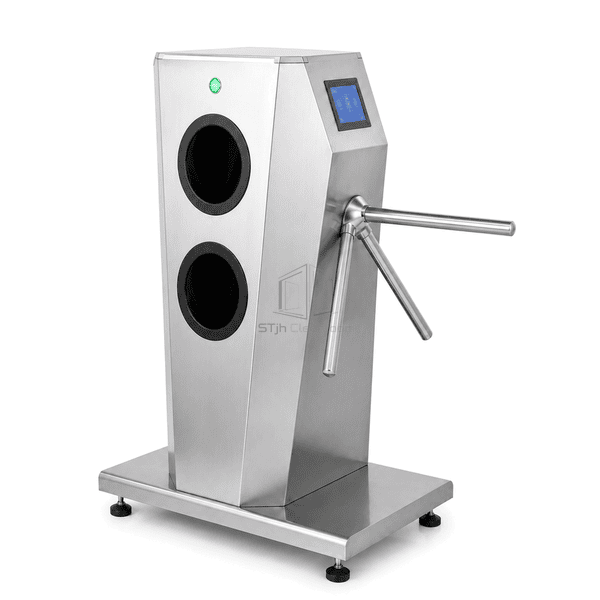

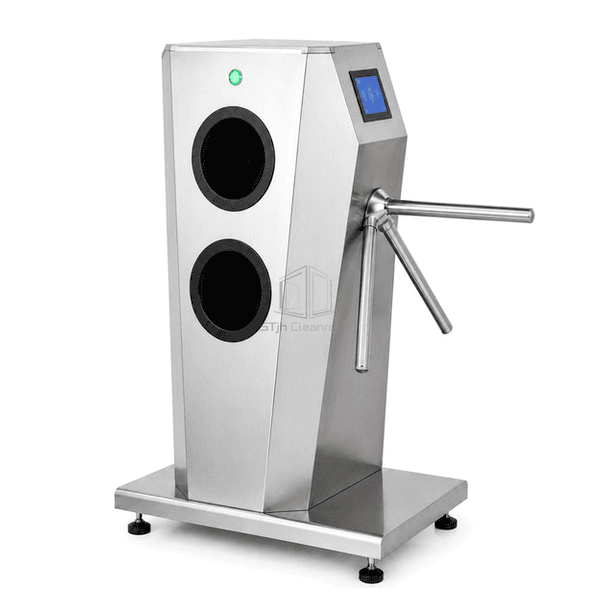

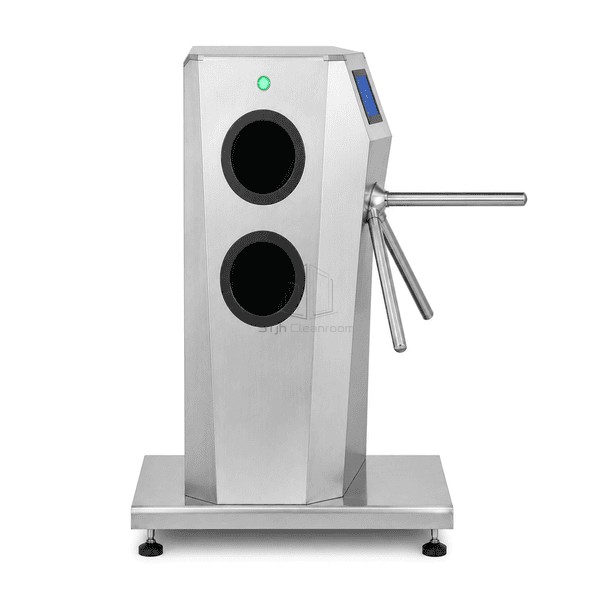

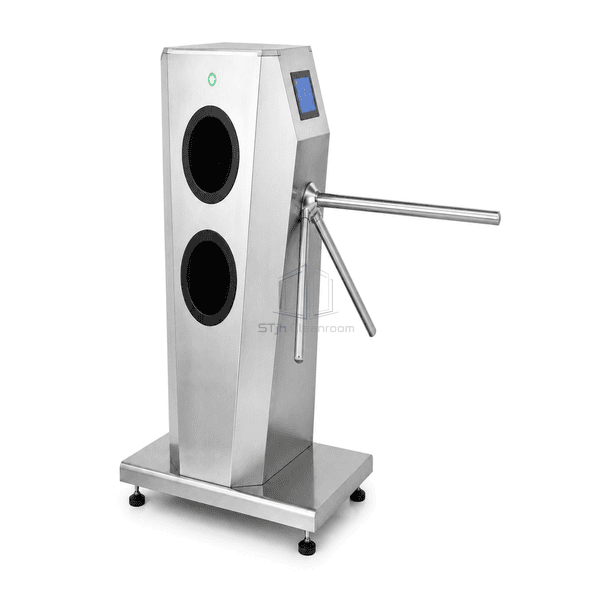

The hygiene turnstile integrates two hand-entry chambers, sanitizer dosing and a motorized access gate in a compact pedestal. Sensors verify simultaneous hand placement and complete the programmed spray cycle before the three-arm hub unlocks. A status light and angled display guide the user, while the enclosed stainless body protects pumps, reservoir connections and control hardware.

Key Features

Two vertically arranged openings require both hands to enter the controlled spray zone.

The motorized three-arm gate releases only after a completed hygiene cycle.

A green indicator and angled display provide clear access status.

The compact stainless pedestal fits narrow personnel entrances and cleans easily.

Customer Product Concerns

Standalone sanitizer dispensers cannot prevent personnel from entering controlled areas without completing hand disinfection.

Personnel may bypass an optional sanitizer dispenser.The locked turnstile connects physical access to verified cycle completion.

One-hand activation leaves uneven sanitizer coverage.Two separate hand openings require simultaneous placement for the programmed spray.

Users cannot tell when the gate is ready.A visible status light and display indicate cycle and release state.

Large hygiene barriers do not fit every corridor.The narrow floor-mounted pedestal combines dosing and access control in one footprint.

Typical Applications

Food-production staff entrancesPharmaceutical hygiene barriersHigh-care packaging accessLaboratory changing areas

Technical Parameters

Typical configurable construction values for a hand-disinfection hygiene turnstile are listed below.

Core Material	304 stainless-steel pedestal and turnstile with polymer hand-entry liners and dosing hardware
Panel Thickness	40-80 mm pedestal enclosure sections
Effective Width	550-800 mm controlled passage width
Maximum Length	Up to 1400 mm overall base and arm envelope
Steel Facing Thickness	1.2-2.0 mm stainless pedestal and base facing
Core Density	7950-8050 kg/m³ for stainless-steel construction
Thermal Conductivity	14-16 W/(m·K) for austenitic stainless steel
Surface Finish	Brushed hygienic stainless with black hand liners and polished turnstile arms
Joint Type	Sealed dosing pedestal with bolted motorized three-arm hub and floor-mounted base plate
Customization	Available based on the intended application and operating environment.

Available Options

Bidirectional or entry-only operationAccess-card and personnel-record interfaceRemote alarm and low-level outputLeft- or right-hand turnstile orientation

Planning a Hygiene Turnstile specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
