Industry-Specific Cleanroom Equipment

Food-Grade Clean Workbench

An open-front stainless workbench that supplies HEPA-filtered vertical airflow across a cleanable food-handling and quality-control work zone.

HEPA Vertical Airflow
All-Stainless Work Zone
Open-Front Access
Washable Base Cabinet

Request a Quote Browse Products

Product Introduction

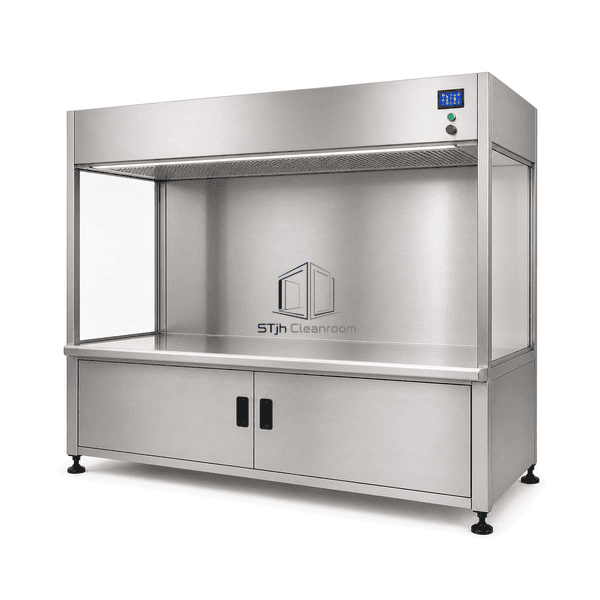

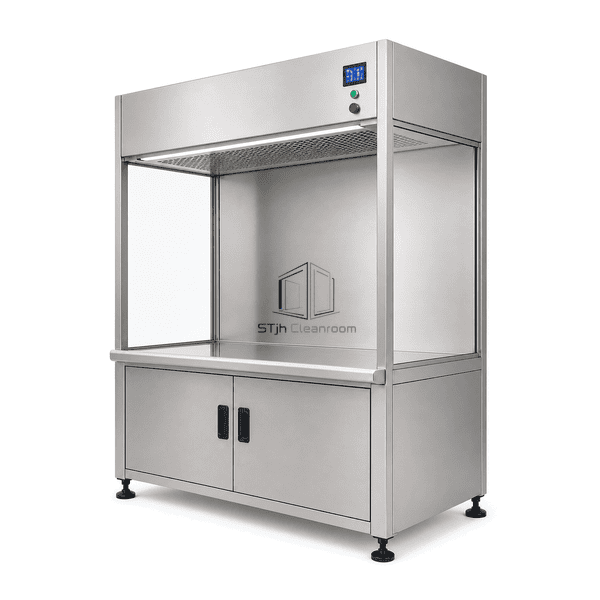

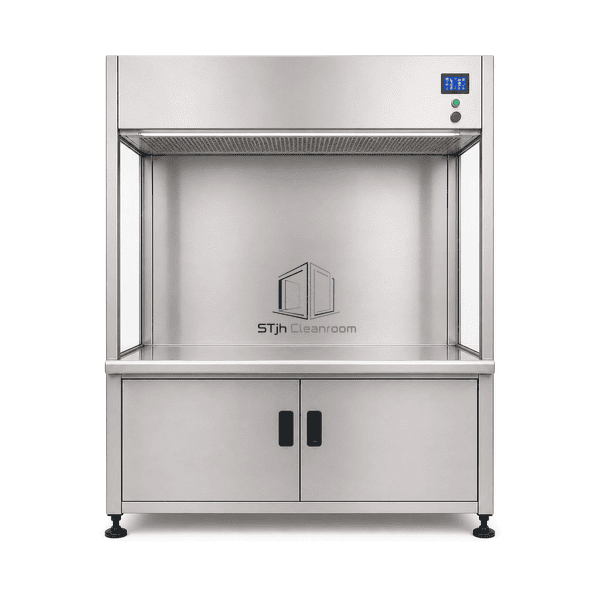

The food-grade clean workbench combines an overhead fan-filter plenum, perforated supply diffuser and smooth stainless work deck above an enclosed service base. Filtered vertical airflow reduces particle deposition on exposed utensils, packaging components and non-hazardous samples while the open front preserves direct operator access. Radiused internal transitions, removable diffuser sections and sealed lighting support regular sanitation in food-development, inspection and high-care preparation areas.

Key Features

An overhead fan and HEPA filter deliver uniform vertical air across the working surface.

A one-piece stainless deck with rounded front edge reduces joints and exposed particle traps.

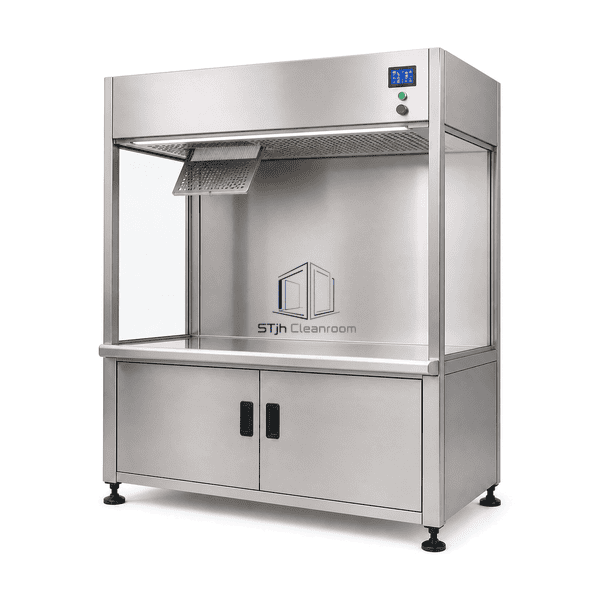

Flush task lighting and a perforated diffuser keep the upper work-zone surface smooth and accessible.

Lower stainless doors isolate electrical and storage spaces from the clean working area.

Customer Product Concerns

Small food-handling tasks need cleaner localized airflow without placing every support operation inside a separate high-grade room.

Room particles can settle on open samples and clean packaging components.HEPA-filtered vertical airflow continuously sweeps the protected work zone.

Seams and unfinished bench joints retain product residue during sanitation.A continuous stainless deck and radiused internal corners provide direct wipe-down access.

Large process items interfere with rear-to-front horizontal airflow.Vertical supply air approaches from above and accommodates taller objects on the work deck.

Exposed wiring and storage items complicate cleaning around the bench.A closed lower cabinet contains service components and keeps the external base surfaces clear.

Typical Applications

Food quality-control sample preparationHigh-care packaging component stagingStarter culture and ingredient handlingClean utensil inspection and assembly

Technical Parameters

Typical configurable construction values for a stainless food-grade clean workbench are listed below.

Core Material	304 stainless steel enclosure and work deck with HEPA filter, perforated stainless diffuser and tempered side glazing
Panel Thickness	40-80 mm double-skin airflow plenum and cabinet sections
Effective Width	900-1800 mm clear working-zone width
Maximum Length	Up to 2400 mm overall workbench length
Steel Facing Thickness	1.0-1.5 mm stainless steel work-zone and cabinet facing
Core Density	7900-8000 kg/m³ for austenitic stainless steel components
Thermal Conductivity	14-16 W/(m·K) for austenitic stainless steel
Surface Finish	Satin stainless steel with smooth radiused work-zone transitions and polished cleanable edges
Joint Type	Continuously welded work deck with sealed plenum seams, gasketed filter frame, removable diffuser and sealed utility penetrations
Customization	Available based on the intended application and operating environment.

Available Options

304 or 316L stainless work zoneHEPA or ULPA terminal filterFixed or height-adjustable support baseAirflow monitor, outlets and task-light options
