Personnel and Material Decontamination Equipment

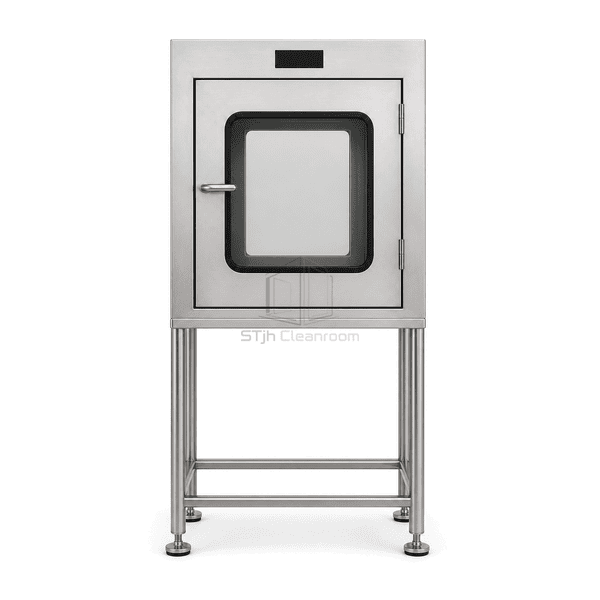

Floor-Standing Cleanroom Pass Box
A reinforced, floor-supported cleanroom pass box for transferring larger loads at a practical handling height.
- Floor-Supported Structure
- Low Transfer Sill
- Interlocked Large Doors
- Optional Roller Floor
Product Introduction
The floor-standing pass box is built on a rigid stainless base rather than being suspended entirely within a wall. Its larger chamber and low sill accommodate trays, bins and compatible wheeled loads. Interlocked doors preserve the material airlock function, while adjustable levelling feet and wall trim support installation at a partition opening.
Key Features

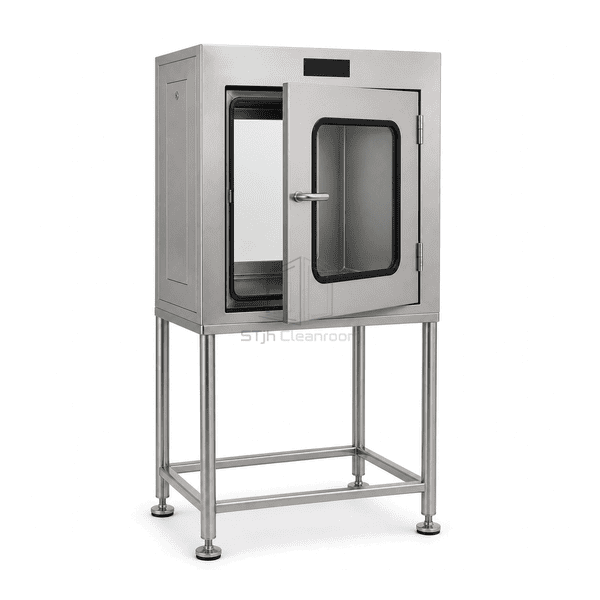

The low transfer sill reduces lifting at the opening.
Large interlocked doors suit bulky containers.

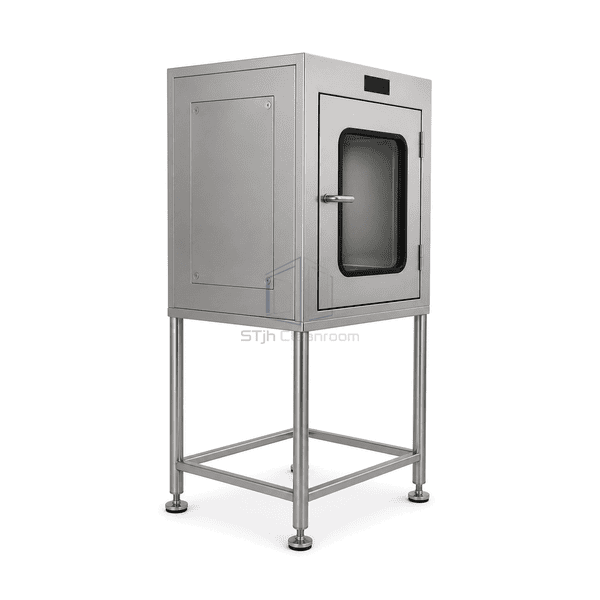

Adjustable feet help align the chamber with finished floor level.

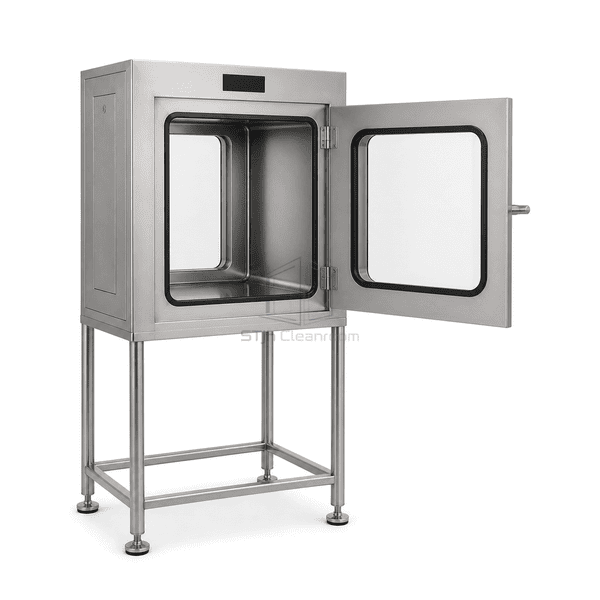

Optional rollers ease straight-through movement of compatible trolleys.
Customer Product Concerns
Large loads need a stable, accessible transfer route without relying on a wall structure to carry the cabinet weight.
A wall-mounted cabinet cannot support heavy bins safely.The load-bearing frame transfers weight through the floor-standing base.
High sills increase manual lifting and handling risk.A low, flush transfer threshold reduces the required lift.
Large doors sag after repeated use.Reinforced frames and adjustable hinges support the wider opening.
Trolley wheels damage the chamber floor.A reinforced deck or optional roller surface is selected for the load type.
Typical Applications
Pharmaceutical warehouse interfaceMedical-device logisticsCleanroom cart transferLarge laboratory supply rooms
Technical Parameters
Representative dimensions for a floor-standing cleanroom pass box are provided below.
| Core Material | SUS 304 double-wall chamber on a reinforced floor base with interlocked doors and adjustable feet |
|---|---|
| Panel Thickness | 80-120 mm reinforced double-wall cabinet construction |
| Effective Width | 800-1600 mm clear transfer width |
| Maximum Length | Up to 1800 mm chamber depth |
| Steel Facing Thickness | 1.2-1.5 mm stainless-steel facing |
| Core Density | 35-40 kg/m³ polyurethane insulation in the double-wall cabinet section |
| Thermal Conductivity | 0.022-0.028 W/(m·K) for polyurethane cabinet infill |
| Surface Finish | Brushed stainless steel with reinforced floor deck and optional roller tracks |
| Joint Type | Welded floor base with sealed cabinet seams, compression-gasketed doors and wall trim |
| Customization | Available based on the intended application and operating environment. |
Available Options
Roller conveyor floorPowered sliding doorsLoad-rated reinforced deckAdjustable floor-to-wall trim
Planning a Floor-Standing Cleanroom Pass Box specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
