Firestop Penetration System

A modular elastomer sealing system in a stainless frame for closing multi-cable penetrations while keeping individual services organized.

Modular Red Seal Blocks
Three Cable Passages
Stainless Transit Frame
Replaceable Compression Modules

Request a Quote Browse Products

Product Introduction

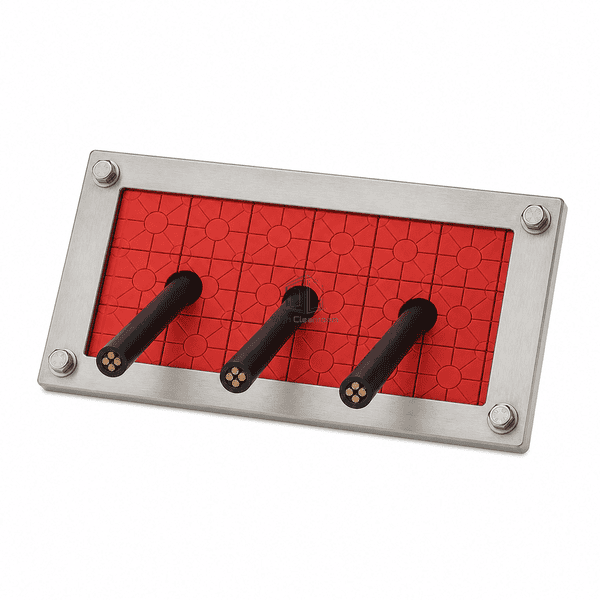

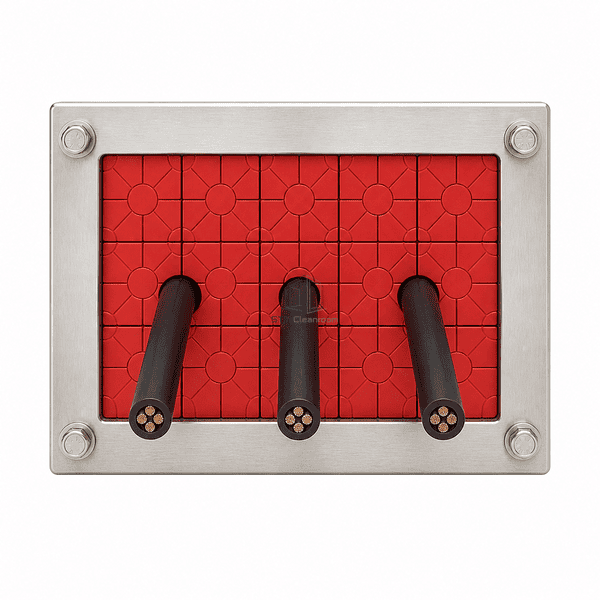

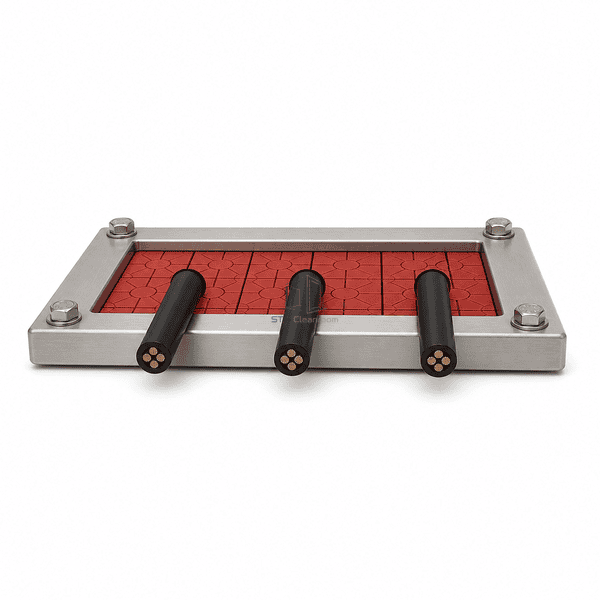

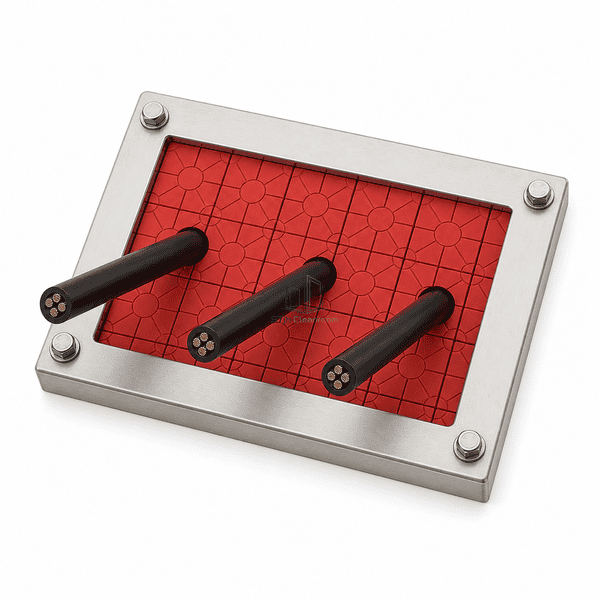

The system uses a rectangular stainless transit frame packed with fitted red elastomer modules around three individual black cables. Four corner bolts retain the frame while the modular grid fills unused opening area and provides defined service passages.

Key Features

Individual modules organize separate cable routes.

A rigid stainless frame protects the penetration perimeter.

Replaceable blocks support compatible service changes.

Four-point mounting provides accessible retention.

Customer Product Concerns

Mixed cable bundles leave irregular voids that are difficult to close consistently and inspect.

Loose cable bundles create uncontrolled gaps.Fitted modules close space around each cable.

Raw openings expose rough partition edges.The stainless frame defines and protects the perimeter.

Permanent filler complicates cable changes.Compatible modules can be removed and rearranged.

Uneven packing leaves local weak points.A complete modular grid provides repeatable filling.

Typical Applications

Cleanroom cable transitsControl-room service openingsElectrical room boundariesUtility-panel penetrations

Technical Parameters

Typical construction ranges for a modular cleanroom firestop cable transit are listed below.

Core Material	Red firestop elastomer modules in a 304 or 316 stainless frame
Panel Thickness	50-250 mm compatible wall assembly thickness
Effective Width	5-100 mm cable diameter per module opening
Maximum Length	Up to 600 mm overall transit frame length
Steel Facing Thickness	2.00-6.00 mm stainless frame thickness
Core Density	Approximately 1200-1600 kg/m³ for filled elastomer modules
Thermal Conductivity	Approximately 0.20-0.45 W/(m·K) for elastomer modules
Surface Finish	Red molded modules with brushed satin stainless frame
Joint Type	Modular compression block packing within a bolted rectangular transit frame
Customization	Available based on the intended application and operating environment.

Available Options

Different frame sizesMixed cable diametersSpare blank modules304 or 316 stainless frame
