FFU Communication Controller

A compact industrial interface that links individual FFU controllers to a grouped monitoring or building-control network.

Multi-FFU Networking
Industrial Field Interfaces
DIN-Rail Installation
Status and Link Indication

Request a Quote Browse Products

Product Introduction

The FFU communication controller exchanges operating commands and status data between fan filter units and a supervisory control layer. Shielded network ports support controller-to-controller or upstream links, while pluggable field terminals connect power, local buses and dry-contact signals. Status indicators provide immediate feedback on power and data activity. The communication protocol, addressing method, electrical isolation, terminal assignment and node capacity must match the installed FFU controllers.

Key Features

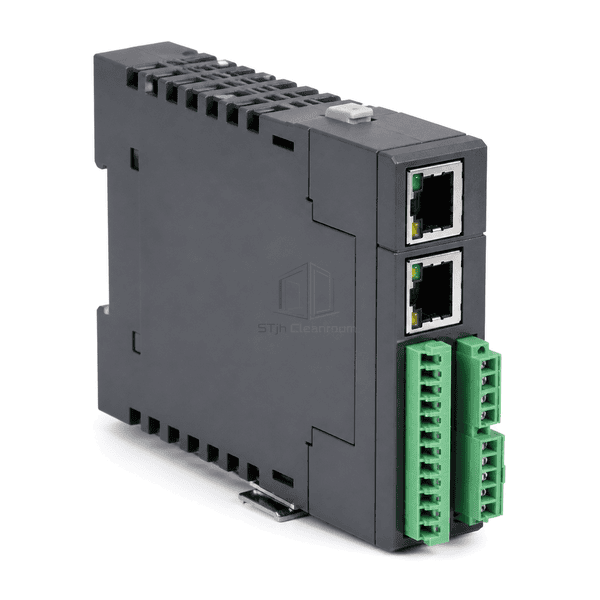

Dual shielded communication ports support daisy-chain or upstream/downstream network layouts.

Pluggable field terminals simplify installation and controller replacement inside a control cabinet.

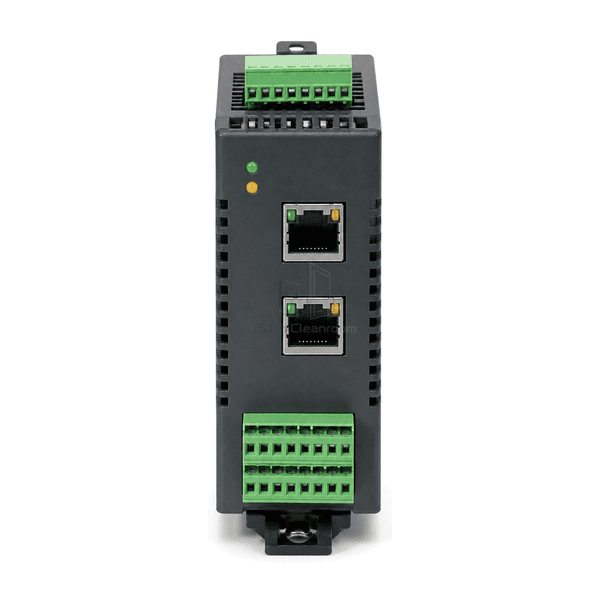

Separate status LEDs provide local indication of power, link and communication activity.

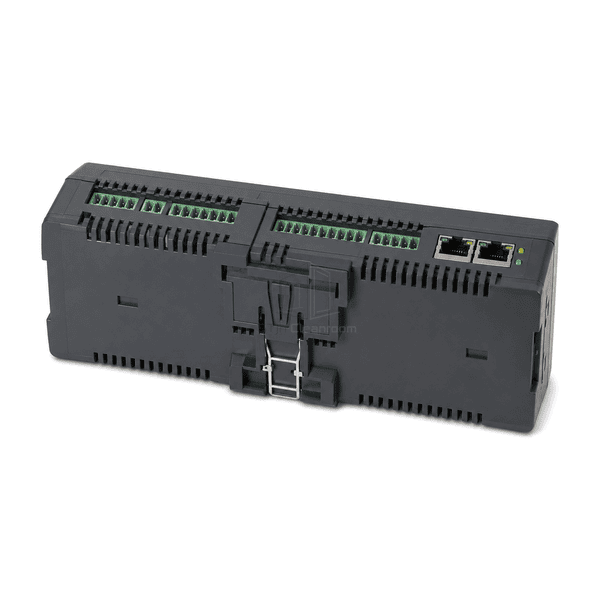

DIN-rail mounting keeps multiple communication modules organized in grouped FFU panels.

Customer Product Concerns

Reliable grouped FFU control depends on protocol, wiring and addressing compatibility across every network node.

A replacement gateway uses a protocol that existing FFU controllers cannot interpret.The communication interface is selected for the installed controller protocol and physical bus standard.

Long daisy chains experience intermittent data caused by poor termination or shielding.Shielded ports, defined bus topology and matched end termination support stable field communication.

Technicians cannot quickly identify whether a fault is power, link or data related.Dedicated local indicators separate supply status from physical-link and communication activity.

Unclear terminal assignments create wiring errors during retrofit work.Pluggable, grouped terminal blocks can be configured to match the original power and signal pinout.

Typical Applications

Networked cleanroom FFU arraysGrouped fan filter unit control panelsMini-environment fan networksFFU supervisory-system retrofits

Technical Parameters

Typical construction ranges for compact FFU communication controllers are shown below.

Core Material	FR-4 control board with copper conductors, isolated communication transceivers and industrial connectors

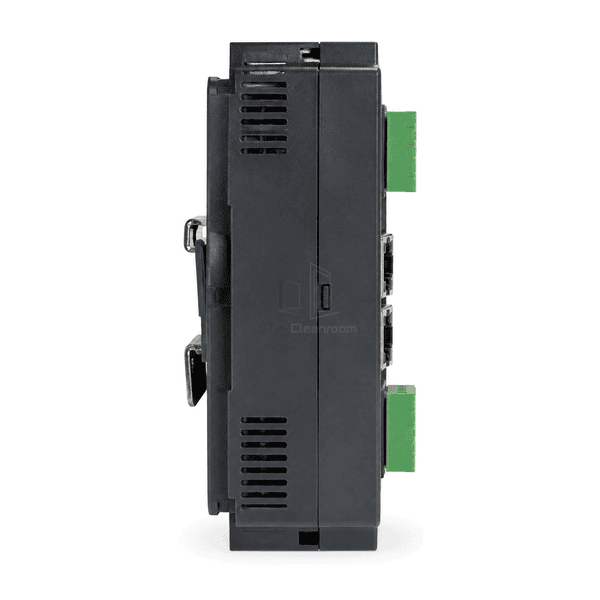

Panel Thickness	45-90 mm nominal module depth
Effective Width	70-180 mm nominal module width
Maximum Length	Up to 250 mm overall module length
Steel Facing Thickness	0.8-1.2 mm optional steel mounting plate or port shield
Core Density	1850-2000 kg/m³ for FR-4 circuit-board substrate
Thermal Conductivity	0.25-0.40 W/(m·K) through typical FR-4 substrate
Surface Finish	Dark-gray flame-retardant enclosure with green terminals and shielded metal network ports
Joint Type	DIN-rail clip with pluggable screw terminals and shielded modular communication ports
Customization	Available based on the intended application and operating environment.

Available Options

RS-485 or Ethernet physical interfaceModbus-compatible integrationCustom node capacity and addressingMatched pluggable terminal layout
