FFU and Terminal Air Purification Equipment

FFU BMS Communication Gateway

A DIN-rail industrial gateway that translates an FFU field bus into selected BACnet or Modbus points for the building management system.

Isolated RS-485 Network
BACnet or Modbus Mapping
DIN-Rail Installation
Visible Port Diagnostics

Request a Quote Browse Products

Product Introduction

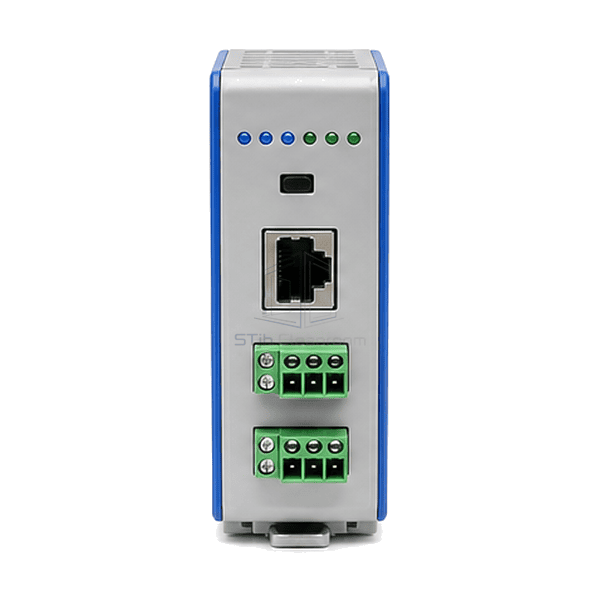

The FFU BMS communication gateway sits between an addressable fan filter network and the facility automation system. Isolated RS-485 ports connect downstream controllers, while Ethernet or a second serial interface presents mapped commands, feedback and alarm states to BACnet or Modbus. Front LEDs indicate power, communication and fault activity, and a local service port supports setup without interrupting the main network. The gateway limits the BMS to defined points rather than giving it direct electrical control of each motor.

Key Features

Protocol translation links an FFU field network to common building-automation interfaces.

Galvanically isolated serial channels reduce fault propagation and ground-potential problems.

Front status LEDs distinguish network traffic, port failure and power conditions during service.

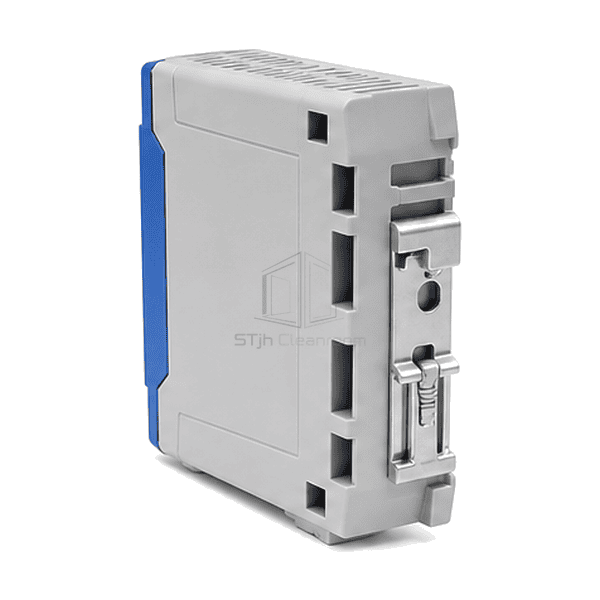

DIN-rail construction allows the gateway to share a protected low-voltage control enclosure.

Customer Product Concerns

FFU networks and building systems often use different protocols, addressing rules and electrical references even when they need to exchange only a small set of operating points.

The BMS cannot read the proprietary or low-level serial messages used by the FFU network.The gateway translates selected fan data into standard BACnet or Modbus objects.

A ground fault on a long field bus disrupts the supervisory controller.Electrical isolation separates downstream RS-485 wiring from the building-side interface.

Technicians cannot identify whether a problem is on the FFU side or the BMS side.Independent port activity and fault LEDs show communication state for each network.

Unrestricted external commands could override cleanroom safety and operating sequences.Configurable point mapping exposes only approved setpoints, status values and alarms.

Typical Applications

BACnet-integrated cleanroomsModbus FFU networksSemiconductor facility monitoringPharmaceutical building automationCleanroom energy-management systems

Technical Parameters

Typical construction ranges for an industrial FFU BMS communication gateway are shown below.

Core Material	Industrial communication processor with isolated RS-485 transceivers, Ethernet interface and non-volatile configuration memory
Panel Thickness	25-60 mm DIN-rail module depth
Effective Width	45-120 mm module width
Maximum Length	Up to 160 mm installed module height including pluggable terminals
Steel Facing Thickness	0.8-1.0 mm optional steel shielding plate or protected control-enclosure mounting panel
Core Density	Approximately 1800-1900 kg/m³ nominal density of the FR-4 substrate used in the BMS communication gateway
Thermal Conductivity	Approximately 0.25-0.40 W/(m·K) through the FR-4 communication board inside the BMS gateway
Surface Finish	Light-grey flame-retardant polymer housing with blue status LEDs and green pluggable terminals

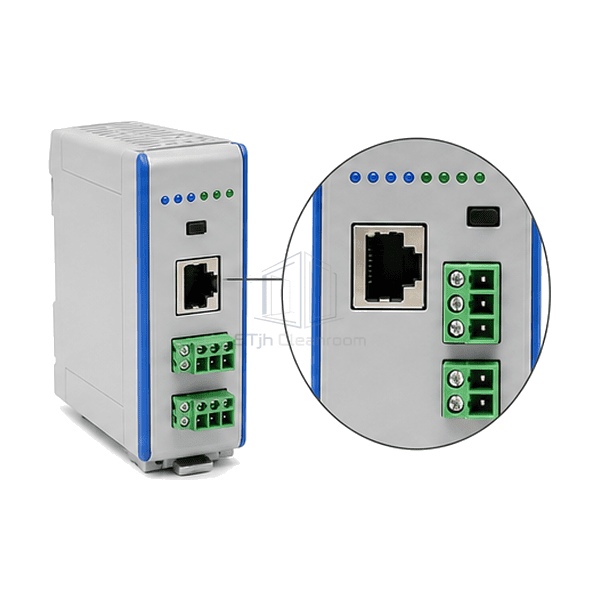

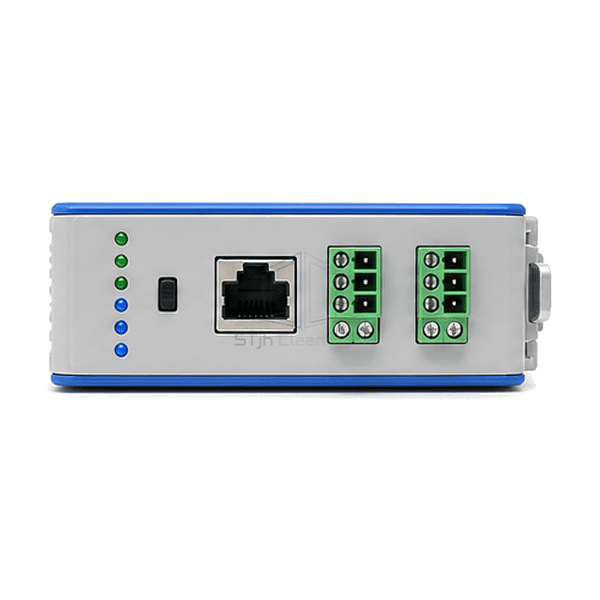

Joint Type	35 mm DIN-rail latch with RJ45 Ethernet and shielded pluggable RS-485 terminal connections
Customization	Available based on the intended application and operating environment.

Available Options

BACnet MS/TP or BACnet/IPModbus RTU or Modbus TCPSingle or dual isolated RS-485 channelsPanel-mounted service port
