ESD Tote Box

The ESD Tote Box is a rigid reusable container for moving and storing electrostatic-sensitive parts within electronics production and controlled industrial areas.

Conductive polypropylene body provides a continuous charge-dissipation path when placed in a controlled handling system.
Reinforced rim and corner ribs withstand repeated stacking, transport and washing cycles.
Smooth interior and integral grips support clean, efficient movement of electronic assemblies.

Request a Quote Browse Products

Product Introduction

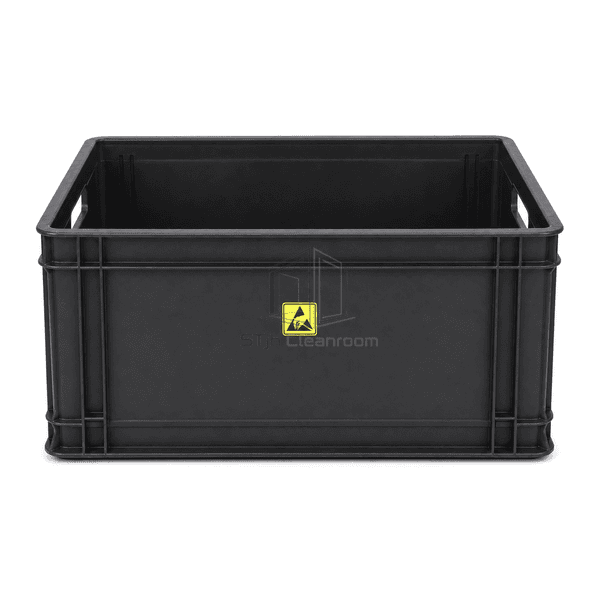

This tote uses carbon-filled polypropylene molded into a one-piece charcoal-black body. Reinforced vertical ribs and a broad stacking rim resist distortion under routine material-handling loads, while gently tapered walls permit empty boxes to nest. The open interior avoids loose dividers that may trap debris, and molded hand grips keep the exterior compact. A permanent ESD protective symbol allows personnel to distinguish the container from ordinary insulating bins.

Key Features

One-piece conductive polypropylene construction avoids removable conductive liners.

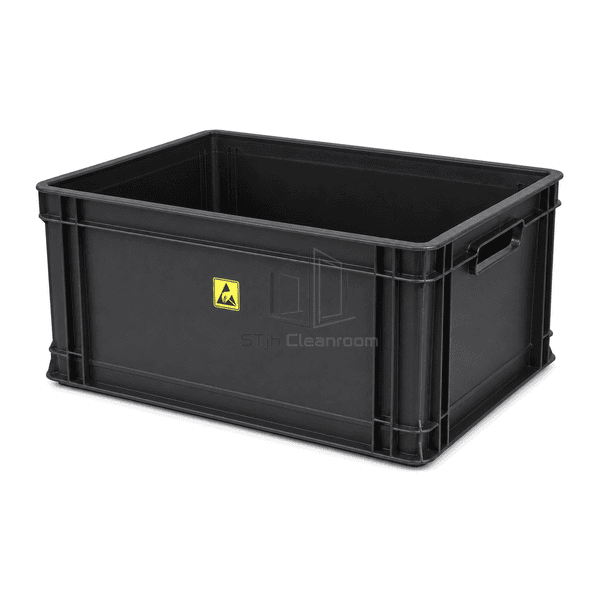

Robust upper rim registers with compatible totes for stable vertical stacking.

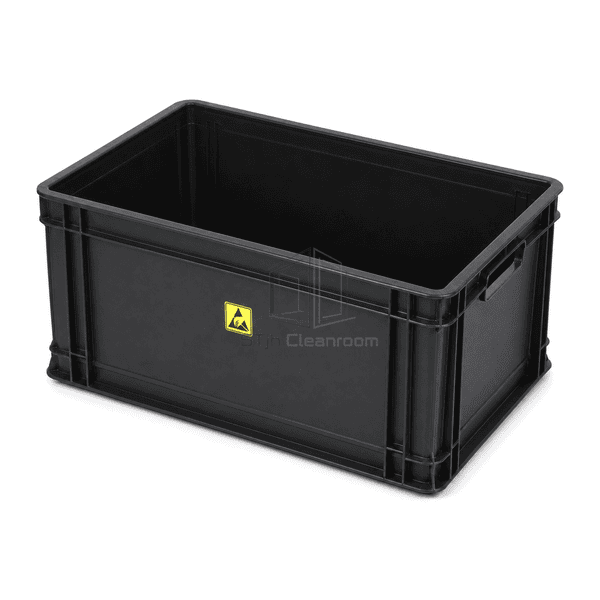

Tapered walls reduce empty return and storage volume.

Integrated hand grips provide controlled lifting without projecting hardware.

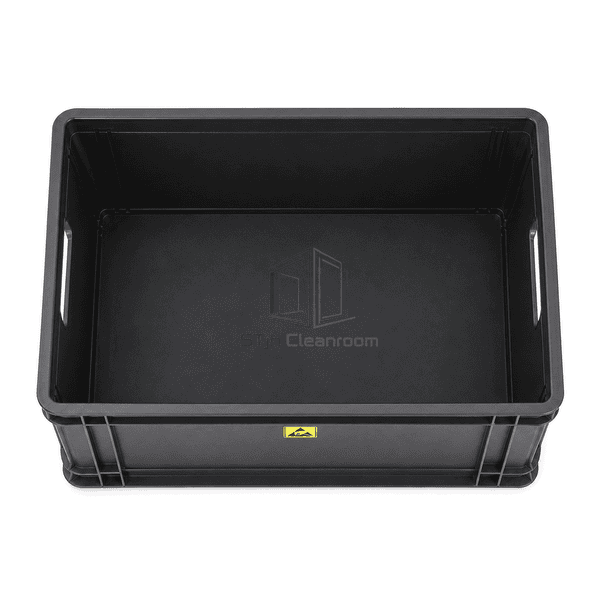

Smooth internal surfaces are accessible for routine wiping and washing.

Molded corner and side ribs reinforce impact-prone areas.

Standard and application-specific footprints can coordinate with carts and shelving.

Customer Product Concerns

Production teams need reusable containers that control static risk without sacrificing stack strength, cleaning access or handling efficiency.

Ordinary plastic totes can accumulate charge during movement.The carbon-filled body provides conductive continuity through the complete container.

Loaded boxes distort or disengage when stacked.A broad reinforced rim and ribbed corner posts maintain registration and shape.

Empty containers consume excessive return space.Slightly tapered walls permit compatible empty totes to nest.

Recesses and loose inserts retain dust.The open smooth interior is accessible for wiping or washing.

ESD containers are mixed with conventional inventory.Charcoal conductive color and a durable ESD protective symbol make identification immediate.

Typical Applications

PCB and electronic subassembly transfer.Semiconductor and sensor component storage.Kitting between SMT, inspection and packing stations.ESD-protected warehouse and line-side replenishment.Medical-electronics and precision-instrument assembly.Returnable in-plant packaging loops.

Technical Parameters

The representative specification covers a medium industrial tote. Footprint, height, wall reinforcement, handles, lid, partitions and electrical resistance range can be adapted to the handling route.

Core Material	Carbon-filled electrically conductive polypropylene (PP)
Panel Thickness	2.5–5.0 mm molded wall thickness, depending on rib location
Effective Width	300–600 mm external tote width
Maximum Length	Up to 800 mm external tote length
Steel Facing Thickness	0 mm; one-piece polymer construction without steel facing
Core Density	950–1150 kg/m³ conductive polypropylene compound density
Thermal Conductivity	0.20–0.35 W/(m·K) for the polypropylene compound
Surface Finish	Fine-textured charcoal-black molded surface with smooth cleanable interior
Joint Type	One-piece molded body with reinforced stacking rim and optional drop-on lid
Customization	Available based on the intended application and operating environment.

Available Options

Alternative footprint and height combinations.Stack-only, nesting or stack-and-nest geometry.Conductive lid, hinged lid or open-top configuration.Removable partitions and conductive dunnage.Label holder, barcode pocket or molded identification area.Drain holes, sealed base or reinforced closed base.Application-specific resistance and cleanliness package.
