ESD Floor Mat

A conductive ESD floor mat provides a durable, groundable walking or standing surface for integration with compatible ESD footwear in controlled production areas.

Homogeneous conductive rubber creates a localized floor contact zone.
Replaceable grounding cord connects the fitted stud to the designated ground.
Low-profile textured surface and beveled edges suit standing work positions.

Request a Quote Browse Products

Product Introduction

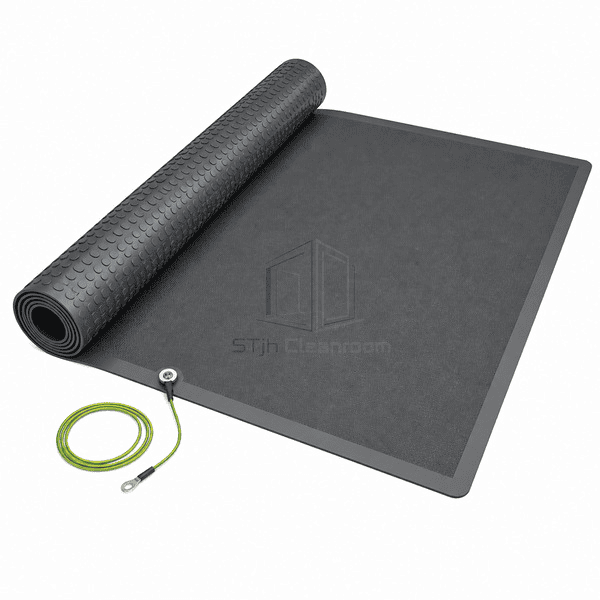

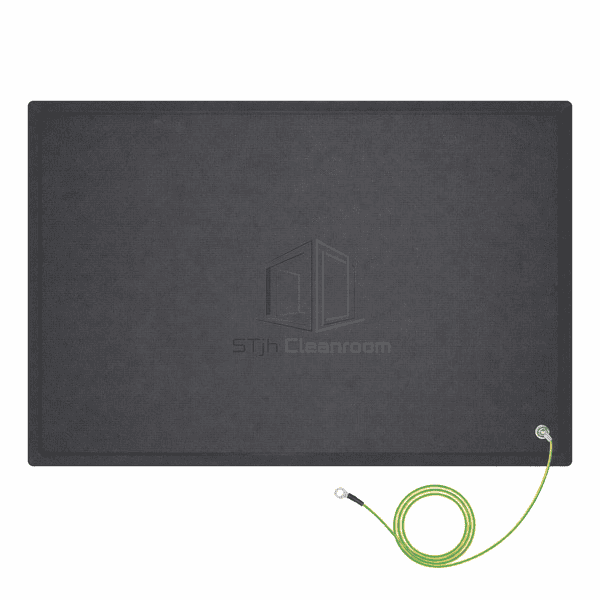

The ESD Floor Mat is formed from dense conductive rubber with a low-glare textured surface and tapered perimeter. When connected through its fitted stud and ground cord, the mat becomes part of the designated footwear-flooring path. The abrasion-resistant sheet protects localized work positions and can be placed over an existing suitable substrate. Final electrical performance depends on the complete installed mat, ground connection, footwear and maintenance program.

Key Features

Homogeneous conductive rubber provides electrical continuity through the mat body.

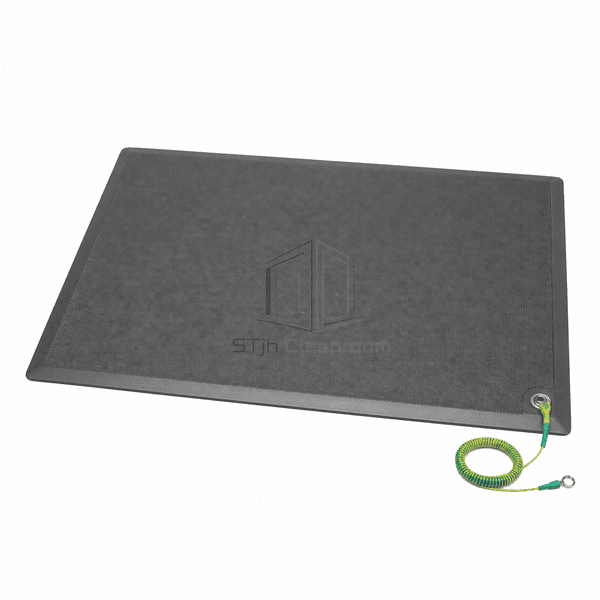

Fitted grounding point accepts a removable cord for connection to the designated ground.

Fine anti-slip texture supports standing and light wheeled traffic.

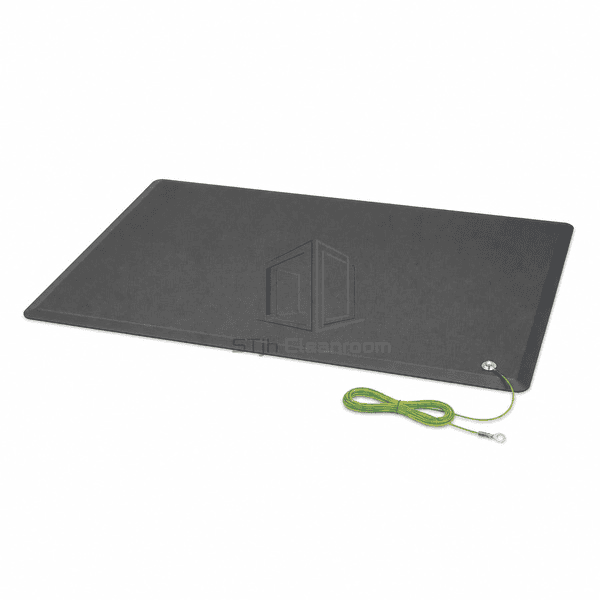

Beveled edges reduce the abrupt height transition around the mat perimeter.

Dense nitrile-rubber options resist abrasion, stretching and common process fluids.

Finished sizes and roll-cut formats support individual stations or longer work zones.

Customer Product Concerns

Floor-mat performance is determined by the complete footwear-flooring path, including reliable ground connection, clean contact surfaces and routine verification at the actual workstation.

Challenges IntroductionFloor-mat performance is determined by the complete footwear-flooring path, including reliable ground connection, clean contact surfaces and routine verification at the actual workstation.

Ordinary flooring interrupts the footwear ground pathThe conductive mat creates a defined local surface that can be bonded to the designated ESD ground.

Raised mat edges create a trip pointThe tapered perimeter provides a smoother transition from the surrounding floor.

Dirt increases contact resistanceThe low-profile textured rubber is accessible for routine cleaning and scheduled resistance verification.

Ground cords are damaged or misplacedDetachable hardware allows the cord to be inspected and replaced without discarding the mat.

Standard mat sizes do not fit the stationWidth, length, thickness, edge treatment and grounding-point position can be selected for the intended layout.

Typical Applications

Standing electronics assembly positions.ESD inspection and rework cells.Component packing and kitting zones.Local protection over ESD floor finishes.Light cart and chair traffic in controlled production areas.

Technical Parameters

These ranges describe common low-profile conductive rubber mats for localized ESD work areas. Mat dimensions, edge treatment, grounding hardware and footwear compatibility are confirmed for the installed station.

Core Material	Homogeneous conductive nitrile rubber
Panel Thickness	1.5–3.0 mm low-profile sheet
Effective Width	600–1200 mm
Maximum Length	Up to 2400 mm finished mat length
Steel Facing Thickness	0.5 mm stainless-steel grounding hardware
Core Density	1300–1550 kg/m³
Thermal Conductivity	0.20–0.30 W/(m·K)
Surface Finish	Dark-gray low-glare anti-slip texture with beveled perimeter
Joint Type	Single-piece conductive sheet with fitted ground stud and detachable cord
Customization	Available based on the intended application and operating environment.

Available Options

Conductive smooth or anti-fatigue constructions.Black or dark-gray rubber.Alternative finished dimensions and roll lengths.Straight or coiled grounding cord.One or two fitted grounding points.Square, rounded or beveled perimeter profiles.

Planning a ESD Floor Mat specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
