ESD and Antistatic Products
ESD Curtain
ESD Curtain uses transparent flexible PVC with a visible conductive grid to form a static-control partition around electronics assembly, inspection and material-transfer areas.
- Transparent flexible barrier preserves visibility between work zones.
- Conductive grid supports a defined charge-drain path when correctly grounded.
- Modular strips allow practical overlap, access and replacement.
Product Introduction

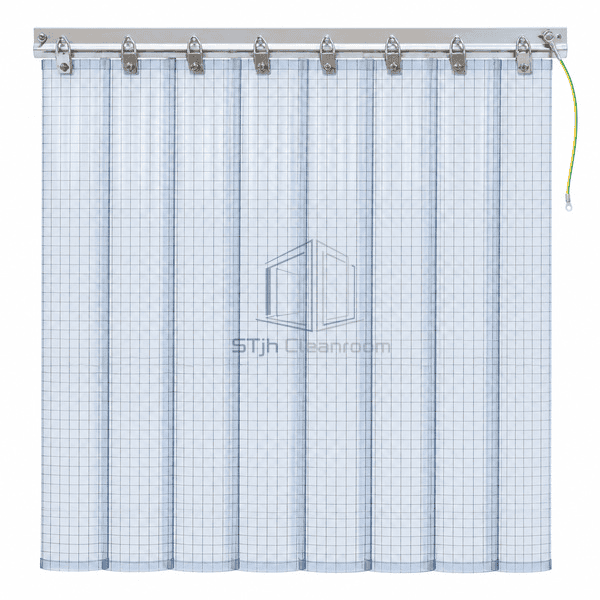

The curtain combines clear or lightly tinted PVC strips with regularly spaced conductive lines and grounded metal hanging hardware. Overlapping strips reduce open gaps while allowing personnel or carts to pass through. The modular construction can enclose benches, divide production zones or form flexible doorways without blocking supervision and ambient light.
Key Features
Integrated conductive grid distributes charge toward the designated grounding point.
Flexible strips recover their hanging position after routine passage.

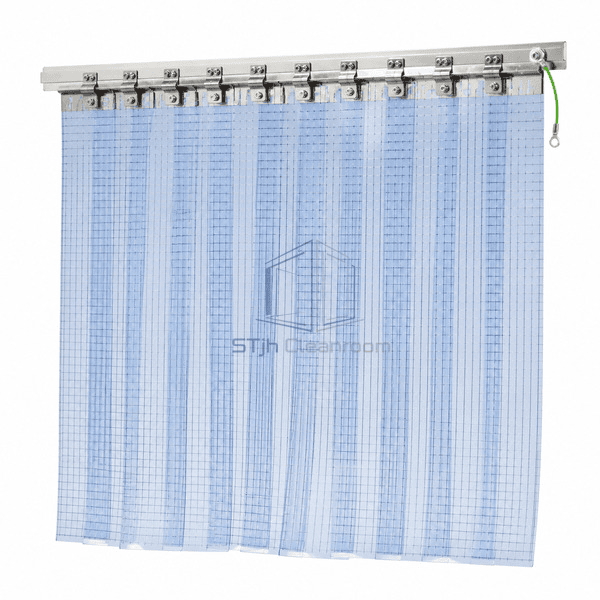

Stainless-steel clamps and rail simplify removal of individual strips.
Adjustable strip overlap balances access convenience and enclosure coverage.
Smooth PVC surfaces support routine wiping with compatible cleaning agents.
Customer Product Concerns

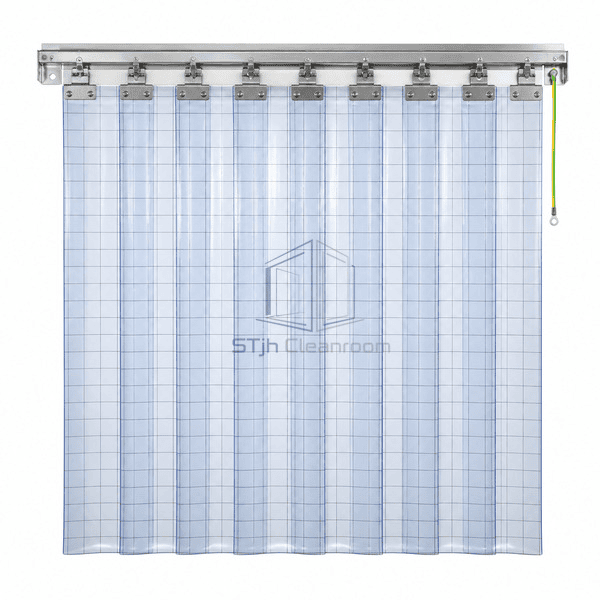

Curtain performance depends on continuous grid construction, an intentional grounding connection, suitable strip overlap and hardware that keeps the barrier correctly aligned.
Ordinary vinyl curtains can accumulate charge near exposed electronics.Conductive grid lines provide a distributed path to the specified ground connection.
An opaque barrier makes process supervision difficult.Transparent PVC maintains visibility and light transmission between separated areas.

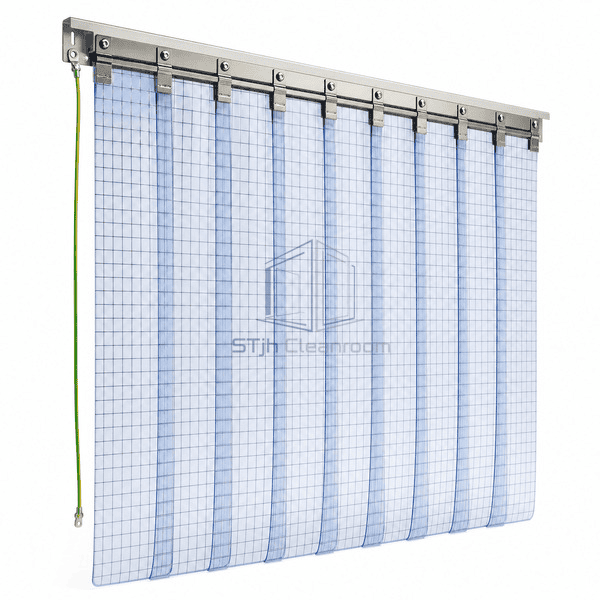

Wide flexible sheets become inconvenient at busy access points.Independently suspended overlapping strips permit personnel and carts to pass without opening the full partition.
Damaged sections require replacement of an entire enclosure.Modular clamps allow an individual strip to be removed and replaced.
Poorly aligned strips leave uncontrolled gaps.A straight hanging rail and specified overlap establish repeatable coverage across the opening.
Typical Applications
Electronics assembly and inspection cells.ESD protected area entrances.Component packing and handling zones.Temporary partitions around sensitive processes.Material-transfer openings requiring frequent passage.
Technical Parameters
The following values describe commonly supplied conductive-grid PVC curtain strips; dimensions and hardware can be matched to the intended opening and grounding layout.
| Core Material | Transparent flexible PVC with embedded carbon conductive grid |
|---|---|
| Panel Thickness | 0.3–2.0 mm |
| Effective Width | 300–1370 mm per strip or sheet |
| Maximum Length | Up to 30000 mm in roll format |
| Steel Facing Thickness | 1.0 mm nominal stainless-steel hanging clamp |
| Core Density | 1200–1400 kg/m³ |
| Thermal Conductivity | 0.14–0.19 W/(m·K) |
| Surface Finish | Smooth transparent or lightly tinted PVC with black conductive grid |
| Joint Type | Overlapping suspended strips with clamped rail and grounded grid connection |
| Customization | Available based on the intended application and operating environment. |
Available Options
Clear, smoke-gray or amber-tinted flexible PVC.Alternative conductive-grid spacing.Strip, sheet or roll supply formats.Stainless-steel rail and removable clamp sets.Customized strip width, length and overlap.Grounding lead and connection hardware.
Planning a ESD Curtain specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
