ESD Component Bin

The ESD Component Bin is an open-front stackable container for organized storage and picking of electrostatic-sensitive parts at shelves, benches and production lines.

Semiconductive polypropylene body supports controlled charge dissipation in an ESD protected area.
Open picking front provides direct access without removing stacked bins.
Divider grooves and label area keep small components separated and identifiable.

Request a Quote Browse Products

Product Introduction

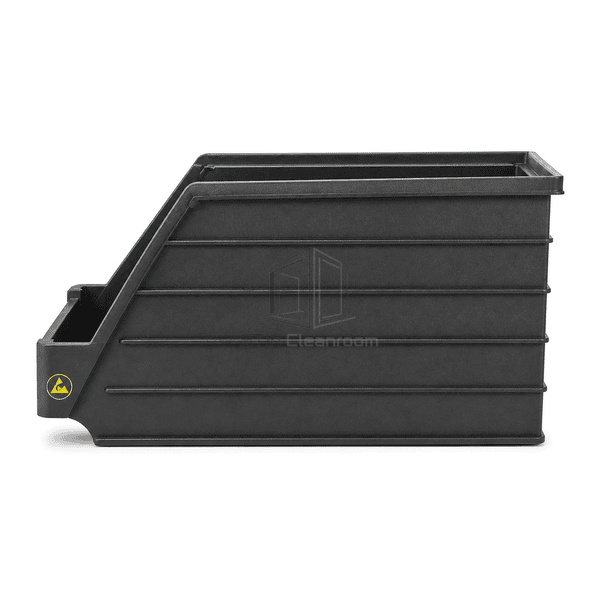

This component bin is injection molded from conductive polypropylene with a deep body, raised rear wall and lowered front opening. Reinforced stacking rails transfer vertical load around the storage cavity so compatible bins remain accessible when stacked. Internal divider grooves support flexible compartment layouts, and the recessed front label field allows reliable inventory identification. The smooth radiused interior helps prevent small parts from lodging in sharp corners.

Key Features

Conductive molded material provides permanent electrical continuity through the body.

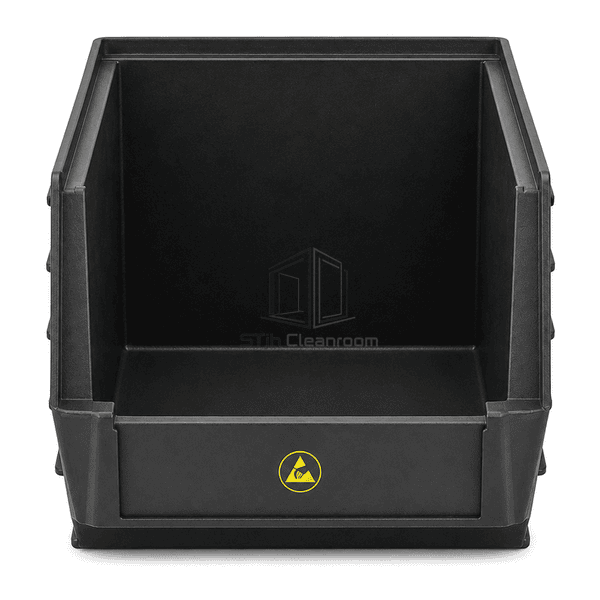

Open front permits visual stock checks and direct hand picking.

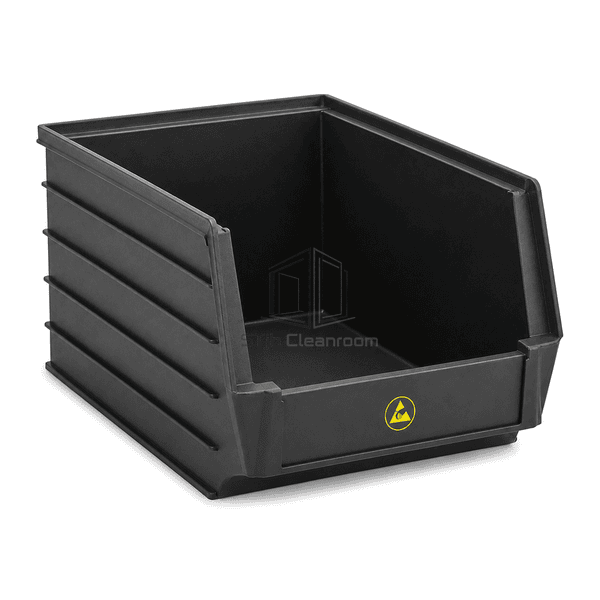

Interlocking top and base rails stabilize vertical stacks.

Molded divider grooves allow adjustable internal segmentation.

Recessed label holder keeps identification protected from abrasion.

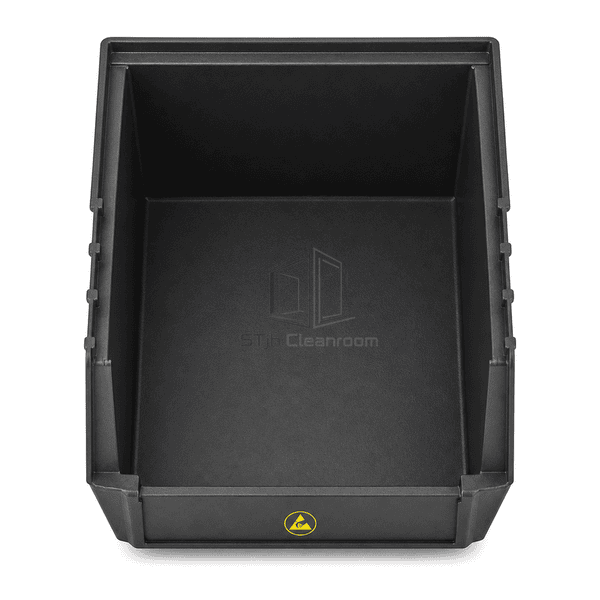

Rounded inner surfaces improve part retrieval and cleaning access.

Multiple sizes can share a coordinated shelving and bin system.

Customer Product Concerns

High-mix production needs bins that remain accessible and identifiable while controlling static and using shelf volume efficiently.

Closed containers slow frequent picking.The lowered open front keeps contents reachable in a stack.

Ordinary bins introduce an uncontrolled insulating surface.Conductive polypropylene provides a dissipative path through the bin body.

Small part numbers become mixed in a large cavity.Molded grooves accept movable dividers for tailored compartments.

Labels detach or become unreadable during handling.A protected recessed label field supports stable item identification.

Tall stacks shift during picking.Matching top and base rails register compatible bins vertically.

Typical Applications

Line-side storage of ICs, connectors and sensors.SMT feeder and maintenance-part organization.Electronics repair and test benches.ESD-protected stockrooms and supermarkets.Medical-device and instrumentation component picking.Kanban and two-bin replenishment systems.

Technical Parameters

The representative specification covers a medium open-front shelf bin. Width, depth, height, resistance range, divider pitch and mounting geometry can be coordinated with the storage system.

Core Material	Carbon-filled semiconductive polypropylene (PP)
Panel Thickness	2.0–4.0 mm molded wall thickness
Effective Width	90–400 mm external bin width
Maximum Length	Up to 600 mm external bin depth
Steel Facing Thickness	0 mm; one-piece polypropylene construction without steel facing
Core Density	950–1150 kg/m³ conductive polypropylene compound density
Thermal Conductivity	0.20–0.35 W/(m·K) for the conductive PP compound
Surface Finish	Fine-textured dark charcoal molded surface with smooth radiused interior
Joint Type	One-piece open-front bin with molded stacking rails and internal divider slots
Customization	Available based on the intended application and operating environment.

Available Options

Multiple widths, depths and heights.Solid, slotted or removable internal dividers.Front label, barcode or transparent label shield.Shelf-rail, louver-panel or free-stacking configuration.Conductive lid or dust cover.Dark charcoal, black or application-specific conductive compound.Clean-packed supply for controlled environments.
