Cleanroom Garments, PPE and Consumables
ESD Cleanroom Shoes

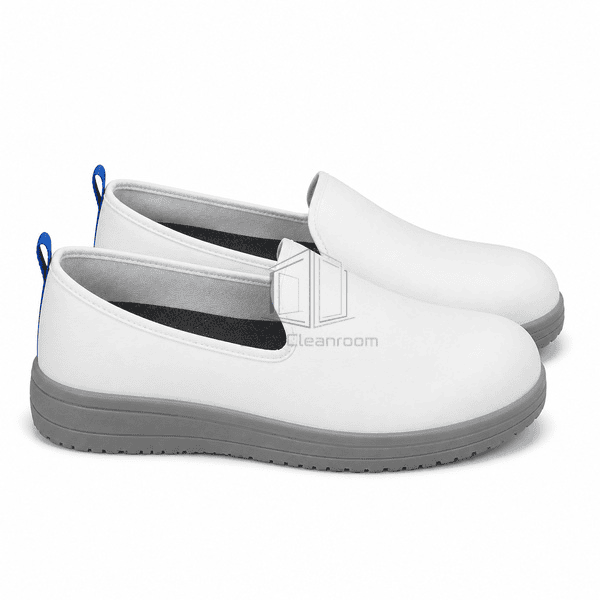

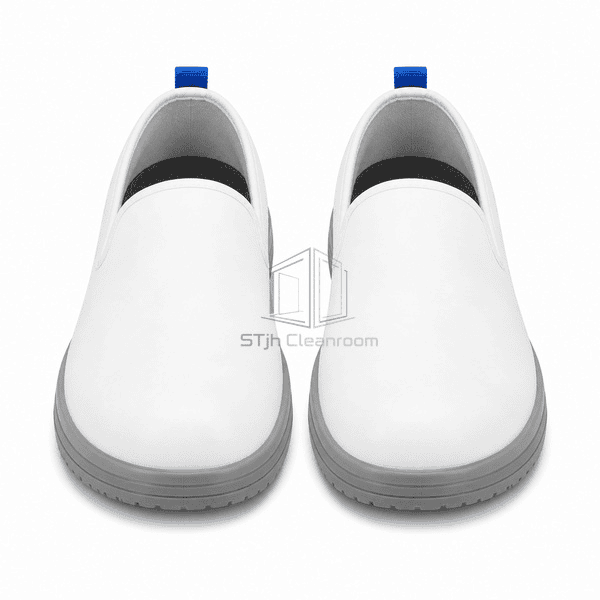

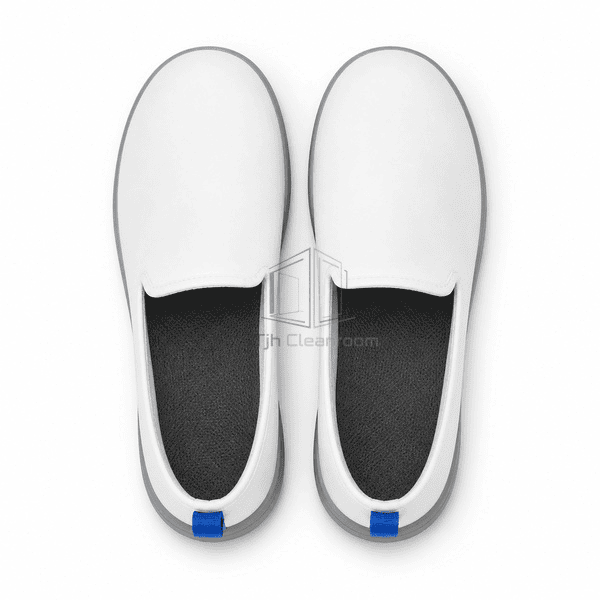

White lace-free ESD cleanroom shoes with smooth microfiber uppers, blue identification heel tabs and static-dissipative gray polyurethane soles.
- Static-dissipative gray PU sole supports personnel grounding
- White microfiber upper is smooth, washable and low shedding
- Blue ESD heel tab makes controlled footwear easy to identify
Product Introduction
ESD Cleanroom Shoes combine clean-compatible footwear construction with a dissipative path through the insole and outsole. The smooth white microfiber upper avoids laces and complex overlays, while a blue heel tab distinguishes the ESD model from ordinary facility shoes. A gray molded PU sole provides stable floor contact and controlled resistance when used as part of a verified personnel-grounding system.
Key Features
Smooth lace-free microfiber upper simplifies wipe-down
Enclosed heel supports consistent foot contact
Blue heel tab provides visible ESD model identification

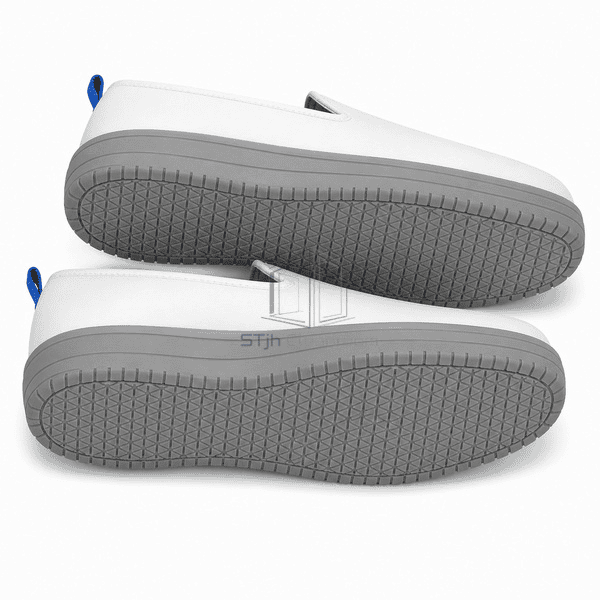

Textured gray outsole adds traction on smooth indoor floors
Customer Product Concerns
ESD footwear must provide reliable contact without adding particle traps or uncomfortable hardware. Product selection also needs to distinguish dissipative footwear from visually similar ordinary cleanroom shoes.
Ordinary soles can interrupt the personnel grounding path.Use a conductive or static-dissipative PU sole selected for the site ESD program.
Contaminated or worn insoles may alter electrical contact.Inspect and clean the insole and outsole according to a defined footwear schedule.
Similar-looking footwear can be mixed between controlled zones.Use a visible blue heel tab and controlled issue system for ESD pairs.
Complex closures can collect residue and slow gowning.Specify a smooth slip-on upper with limited seams and no laces.
Typical Applications
Used in semiconductor fabrication, electronics assembly, precision instruments, optical production, laboratories and other electrostatic-protected controlled environments.
Technical Parameters
The ranges below describe common soft-toe ESD cleanroom shoes. Electrical performance must be verified with the wearer, floor and site test method as a complete grounding system.
| Core Material | White microfiber PU upper with static-dissipative polyurethane sole |
|---|---|
| Panel Thickness | 1.2–1.8 mm upper material |
| Effective Width | 85–115 mm internal forefoot width by size |
| Maximum Length | 320 mm external shoe length |
| Steel Facing Thickness | 0 mm; soft-toe configuration |
| Core Density | 300–450 kg/m³ apparent molded-sole density |
| Thermal Conductivity | 0.09–0.15 W/(m·K), construction dependent |
| Surface Finish | Smooth white upper, blue ESD heel tab and textured gray outsole |
| Joint Type | Slip-on enclosed heel with dissipative insole and bonded or injected outsole |
| Customization | Available based on the intended application and operating environment. |
Available Options
EU sizes 34–50Soft-toe or protective-toe constructionWhite or black microfiber upperRemovable dissipative insoleConductive or static-dissipative sole rangeAlternative identification-tab colors
Planning a ESD Cleanroom Shoes specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
