Cleanroom Material Handling and Storage

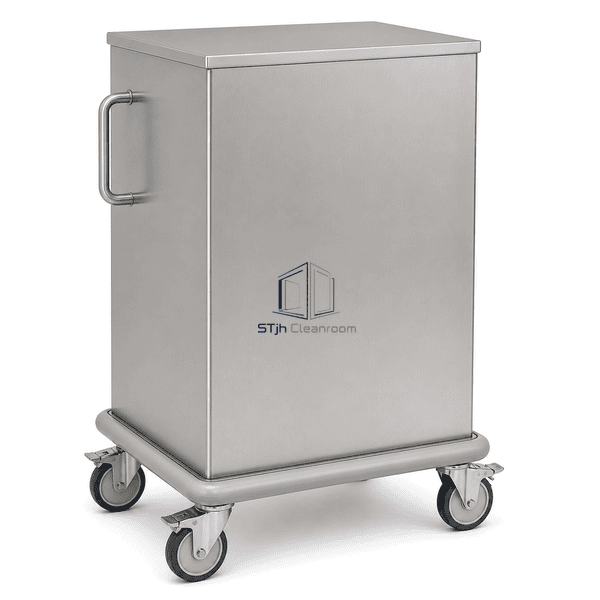

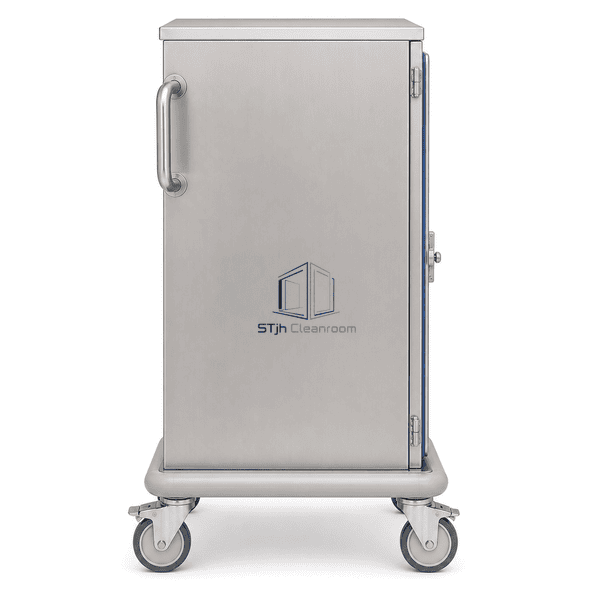

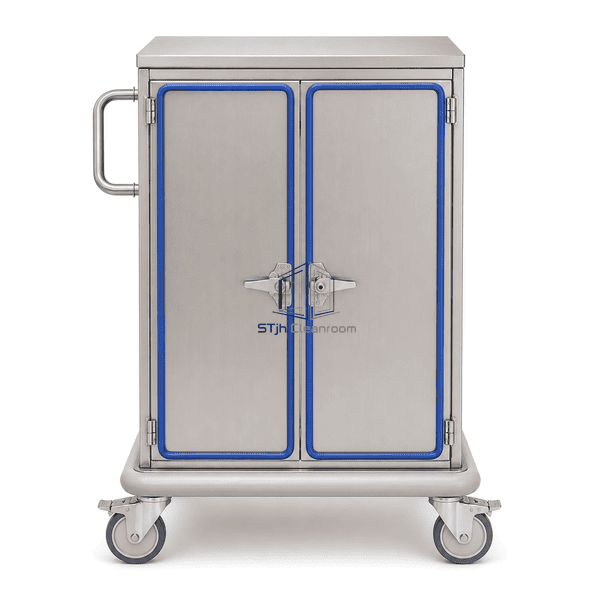

Enclosed Material Transfer Cart

A gasketed stainless steel cabinet cart for enclosed movement of components, containers and controlled materials through clean manufacturing areas.

Gasketed enclosure protects sensitive materials in transit
Adjustable stainless shelving supports changing load profiles
Smooth welded cabinet and sealed casters simplify cleaning

Request a Quote Browse Products

Product Introduction

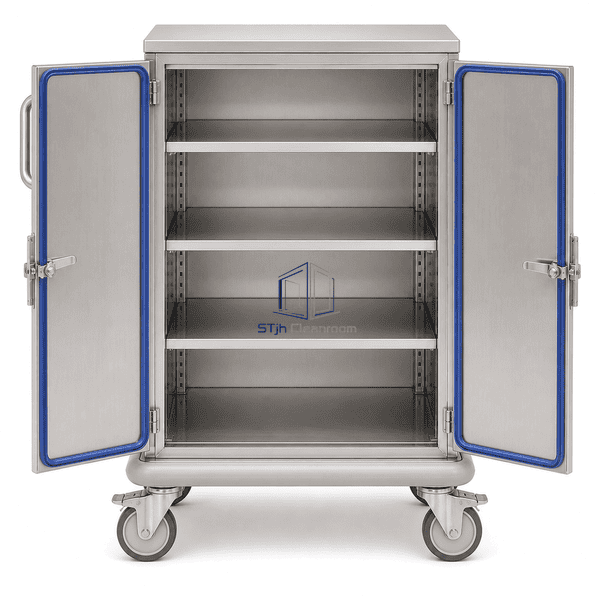

This enclosed cart combines a welded stainless cabinet, double-wall doors, compression closures and removable height-adjustable shelves. A continuous door gasket limits incidental dust entry, while the push handle, protective bumper and cleanroom-compatible casters support controlled movement between process zones.

Key Features

Closed cabinet shields loads from open-corridor exposure.

Compression latches apply consistent pressure around the door seal.

Adjustable solid shelves accommodate containers of different heights.

Smooth internal surfaces and removable shelves improve cleaning access.

Non-marking bumper reduces contact damage along transport routes.

Customer Product Concerns

Controlled-area transport must protect exposed loads without creating difficult-to-clean cavities or sacrificing safe maneuverability.

Airborne debris reaching transported itemsGasketed solid doors provide a closed transport envelope.

Mixed container heights wasting cabinet spaceIndependently adjustable shelves improve usable capacity.

Residue accumulating around interior fittingsRemovable shelves and smooth welded surfaces open the cabinet for cleaning.

Uncontrolled movement at loading pointsBraked sealed casters stabilize the cart during loading and unloading.

Typical Applications

Protected transfer of components, sealed vessels, packaged consumables and cleaned tooling in pharmaceutical, biotechnology, semiconductor and precision-manufacturing facilities.

Technical Parameters

The cabinet is fabricated from corrosion-resistant sheet with folded double-wall doors and welded body joints. Shelf spacing, enclosure dimensions, gasket compound and caster specification can be selected for the intended load, cleaning chemistry and floor conditions.

Core Material	Type 316L stainless steel cabinet, doors and adjustable shelves
Panel Thickness	25–35 mm double-wall door and cabinet sections
Effective Width	600–900 mm usable cabinet width
Maximum Length	Up to 1400 mm overall cart length
Steel Facing Thickness	1.2–1.8 mm
Core Density	8000 kg/m³ nominal 316L stainless steel density
Thermal Conductivity	Approximately 14.6 W/(m·K) at room temperature
Surface Finish	No. 4 brushed, weld-smoothed and passivated stainless steel
Joint Type	Seam-welded enclosure with gasketed double-wall hinged doors and compression latches
Customization	Available based on the intended application and operating environment.

Available Options

304 or 316L stainless steel, alternate shelf quantities, perforated shelves, locking doors, ESD-compatible casters, tow fittings, directional locks and application-specific dimensions.
