Cleanroom Drainage, Hygiene and Safety Equipment

Emergency Exit Sign

A sealed illuminated exit sign that maintains high-contrast egress guidance during normal operation and power loss.

Maintained Illumination
Backup Battery Option
Sealed Cleanable Housing
Directional Legend Choices

Request a Quote Browse Products

Product Introduction

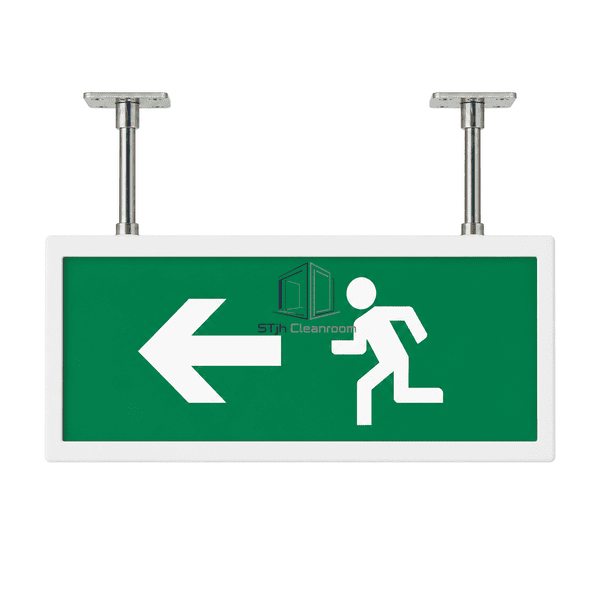

The emergency exit sign encloses efficient LED illumination, charging electronics and an optional backup battery behind a high-contrast legend panel. A gasketed metal or polymer housing limits exposed seams, while ceiling, wall and flag mounting arrangements suit different corridor sightlines. Directional arrows and legends are selected for the actual egress plan and destination.

Key Features

LED illumination keeps the legend visible in normal and emergency modes.

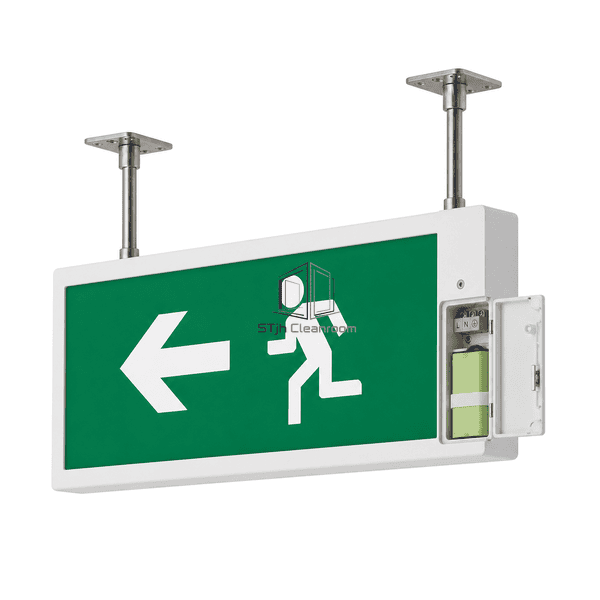

An internal battery or central emergency supply maintains operation during power loss.

A smooth sealed enclosure supports routine cleaning.

Interchangeable directional legends adapt to the approved egress route.

Customer Product Concerns

Egress guidance must remain visible through power interruptions without creating an unsealed, difficult-to-clean fixture.

Normal lighting failure leaves unlit printed signs difficult to locate.Maintained LED illumination and backup power preserve legend visibility.

Incorrect arrows confuse users at corridor junctions.Project-specific directional legends match the approved escape plan.

Open fixture seams collect dust.A gasketed housing and smooth face reduce exposed gaps.

Battery condition is hard to confirm manually.Optional self-test electronics report charging and lamp faults.

Typical Applications

Cleanroom corridorsGowning exitsLaboratory escape routesControlled production areas

Technical Parameters

Typical enclosure construction is listed below; legend format and emergency duration follow local project requirements.

Core Material	Powder-coated steel or engineering-polymer housing with LED light guide
Panel Thickness	1.0-1.5 mm metal housing or 2.0-3.0 mm polymer body
Effective Width	300-500 mm
Maximum Length	Up to 600 mm overall sign width
Steel Facing Thickness	1.0-1.5 mm optional steel enclosure
Core Density	7850 kg/m³ for steel enclosure parts
Thermal Conductivity	45-60 W/(m·K) for steel enclosure components
Surface Finish	Smooth white coating with high-contrast green legend

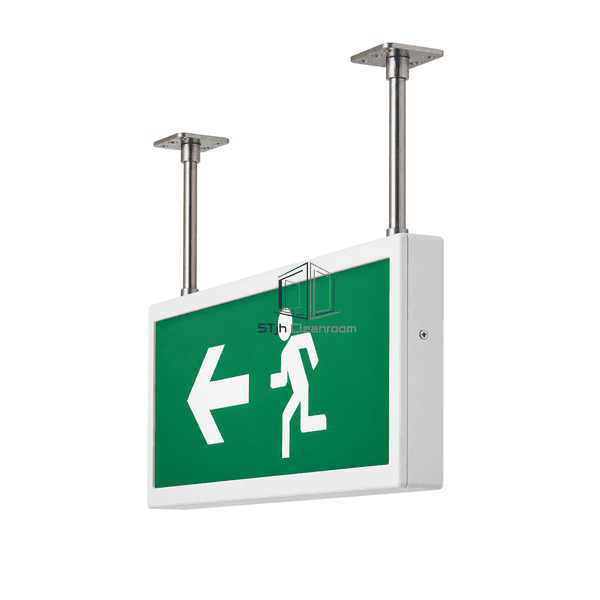

Joint Type	Gasketed screw-fixed housing with ceiling, wall or flag mounting bracket
Customization	Available based on the intended application and operating environment.

Available Options

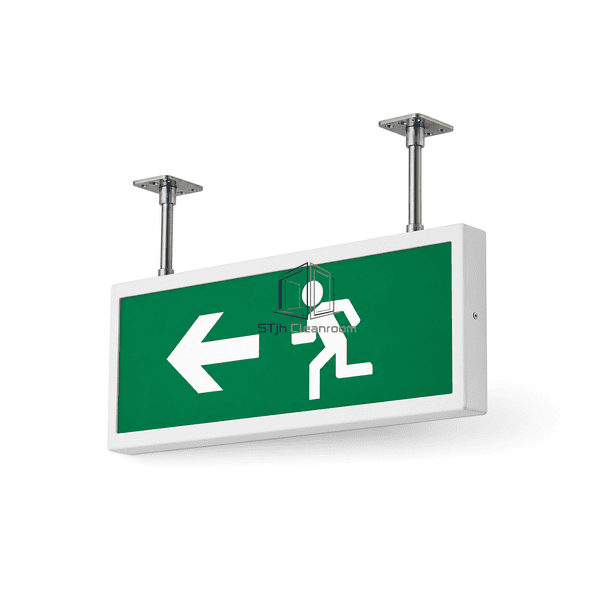

Wall, ceiling or flag mountSingle or double faceSelf-test batteryDirectional arrow legends
