Cleanroom Testing and Validation Instruments

Duct Airflow Test Kit

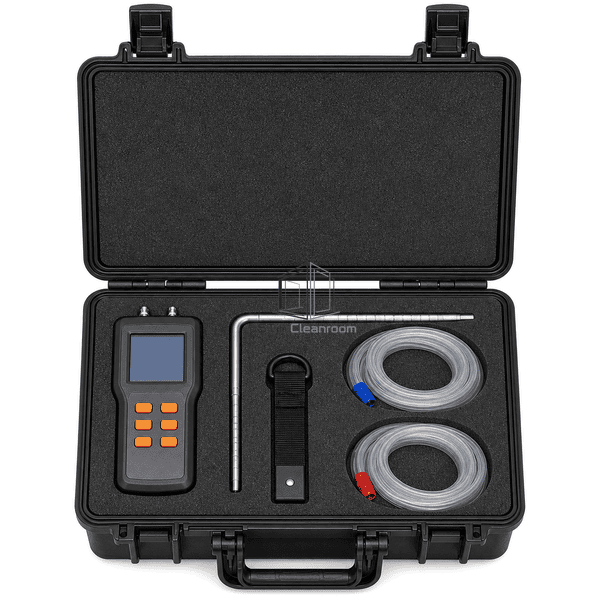

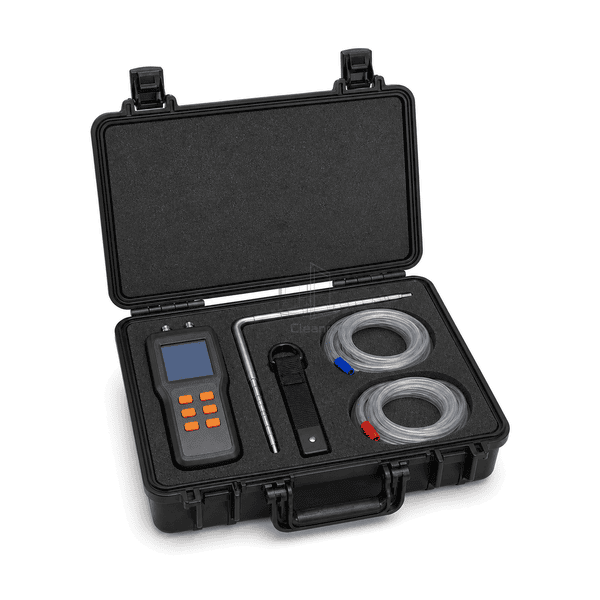

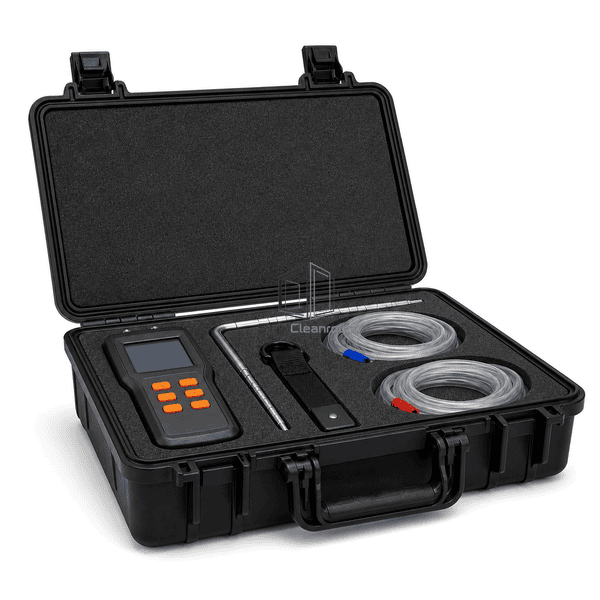

A coordinated duct airflow test kit containing a digital micromanometer, stainless Pitot-static probe, color-coded tubing and protective hard case.

Complete matched kit for duct pressure traverses.
Direct velocity and volume-flow calculation.
Fitted case keeps probes and connections organized.

Request a Quote Browse Products

Product Introduction

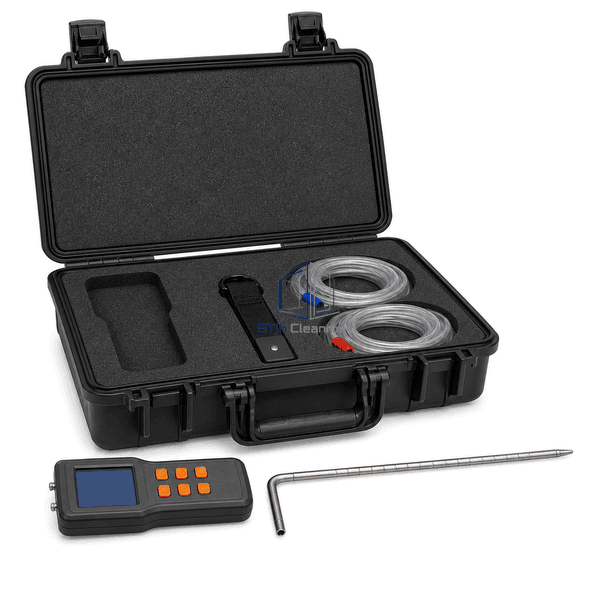

This field kit brings together the instruments and connections needed for duct pressure traverses. The digital micromanometer measures velocity pressure, calculates air speed and converts entered duct dimensions into volume flow. A graduated stainless Pitot-static probe, paired hoses, magnetic support and fitted case keep the test arrangement consistent between commissioning locations.

Key Features

Matched meter and Pitot probe support immediate duct traverse work.

Color-coded tubing preserves total and static pressure polarity.

Entered round or rectangular duct dimensions enable direct flow calculation.

Point storage and averaging organize multi-location traverse results.

Graduated stainless probe supports repeatable insertion depth.

Fitted hard case protects the complete set between test locations.

Customer Product Concerns

A reliable duct traverse depends on compatible instruments, correct pressure polarity and complete accessories arriving together at every test location.

Missing adapters or tubing can halt a scheduled duct test.The fitted case keeps the meter, Pitot probe, paired hoses and mounting accessories together.

Pressure polarity is easy to reverse during repeated traverse points.Blue and red connections consistently identify static and total pressure paths.

Manual conversion from velocity pressure to airflow is time-consuming.The meter calculates velocity and volume flow from pressure and entered duct geometry.

Unstructured point records make average duct flow difficult to audit.Point storage and averaging retain the traverse sequence and calculated mean.

Typical Applications

Cleanroom supply and exhaust duct traversesHVAC testing, adjusting and balancingAir-handler performance verificationVentilation commissioningFilter and coil pressure-drop diagnostics

Technical Parameters

Representative kit construction and transport dimensions are shown below; probe length, pressure range and hose material can be matched to the duct network.

Core Material	Digital pressure meter, 304 stainless Pitot tube, elastomer hoses and molded protective case
Panel Thickness	Typically 2.5-4.0 mm for the meter enclosure and hard-case shell
Effective Width	Approximately 300-420 mm across the closed transport case
Maximum Length	Approximately 450-550 mm for the case; Pitot probe typically 300-500 mm
Steel Facing Thickness	Typically 0.5-0.9 mm for the stainless Pitot probe wall
Core Density	Approximately 7900-8000 kg/m³ for 304 stainless probe components
Thermal Conductivity	Approximately 16-17 W/(m·K) for 304 stainless probe components
Surface Finish	Graphite instrument and case with satin stainless probe and blue/red tubing identifiers
Joint Type	Dual barbed pressure ports, flexible tubing couplings and fitted foam component recesses
Customization	Available based on the intended application and operating environment.

Available Options

300 or 500 mm Pitot probeLow- or extended-pressure meterMagnetic hanging strapSilicone-free tubingHard carrying caseData-download software
