Cleanroom Utility Systems
Desiccant Air Dryer
A twin-tower heatless adsorption dryer that alternates activated-alumina beds to provide a continuous supply of deeply dried compressed air without an electric regeneration heater.
- Twin-tower pressure swing adsorption
- -40°C reference pressure dew point
- Automatic sequencing with dew-point monitoring
Product Introduction

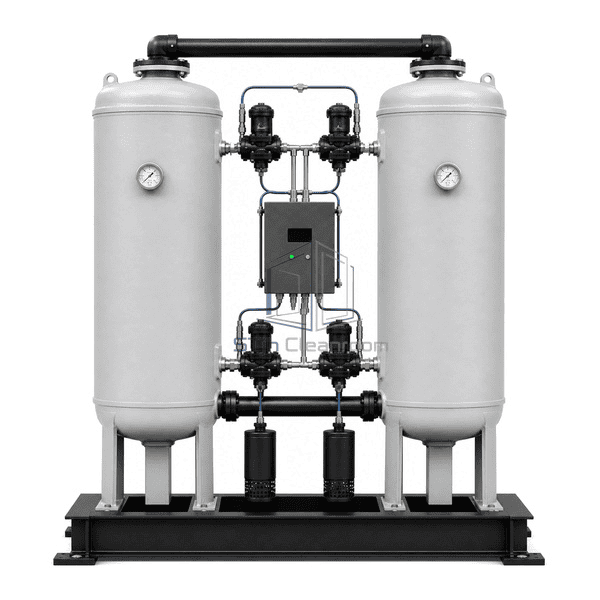

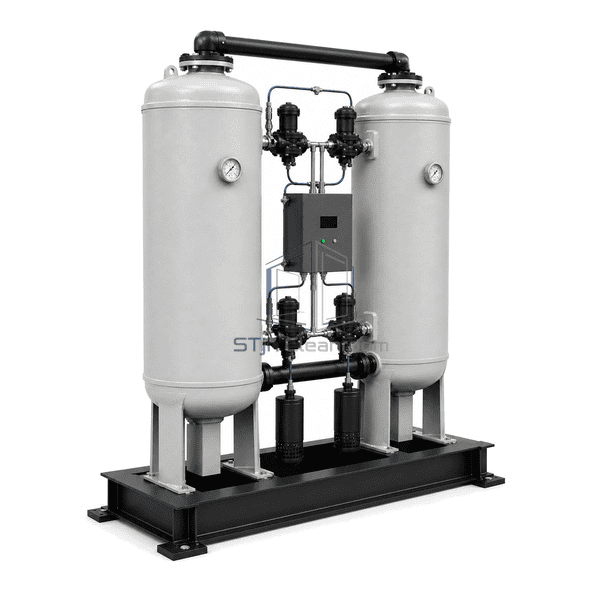

The Desiccant Air Dryer is a standalone heatless pressure-swing adsorption unit installed after compressed-air cooling, water separation and coalescing filtration. Wet compressed air flows upward through one activated-alumina bed while a controlled portion of the dry outlet air expands through the second tower to regenerate its desiccant. The controller then repressurizes and switches the towers to maintain continuous drying. The selected medium-flow configuration has exactly two vertical welded-steel towers, upper equalization and dry-air manifolding, a lower inlet and switching-valve assembly, two tower pressure gauges, two low-mounted exhaust silencers, one central dew-point controller and a four-point steel base. It has no refrigeration compressor, condenser grille, electric regeneration heater, blower, receiver vessel, gas-separation module or air-compression stage. The required inlet coalescing filters and outlet dust filter are separate line items rather than integrated housings.
Key Features
Heatless regeneration avoids an electric heater and regeneration blower while retaining a compact open-frame arrangement
A programmed depressurization, purge, repressurization and changeover sequence protects the active drying bed from abrupt switching
Individual tower pressure gauges make depressurization and repressurization behavior visible during operation

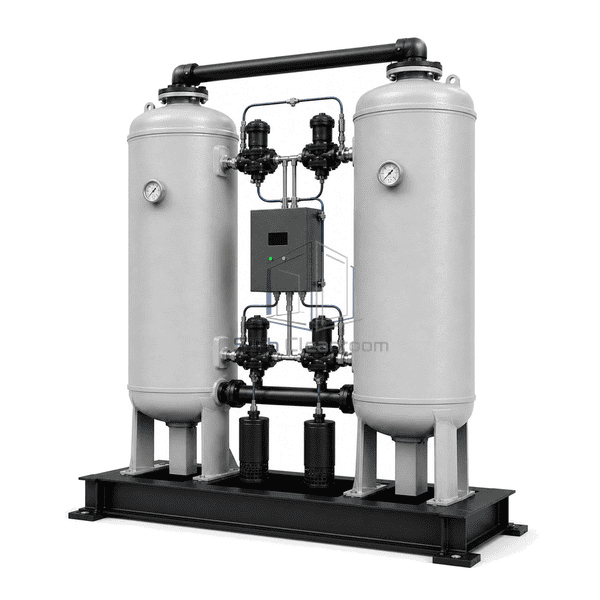

Two dedicated exhaust silencers reduce the sharp discharge noise produced when the regenerating tower vents to atmosphere
A dew-point-capable controller can extend the adsorption cycle when the outlet moisture load remains below the changeover threshold

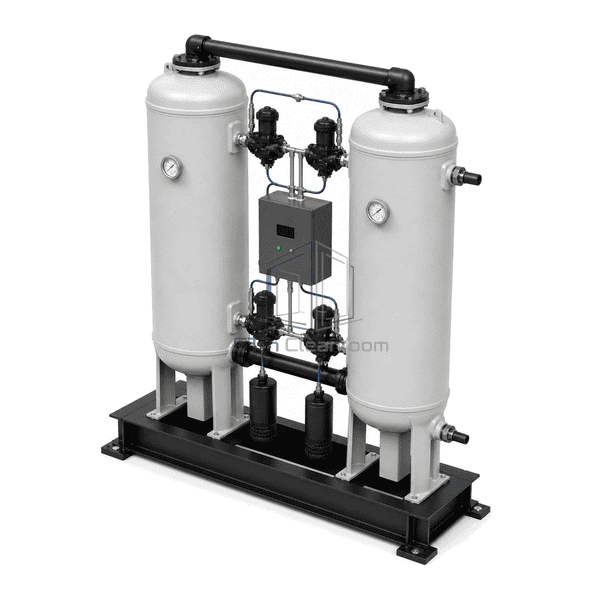

Rear air connections and accessible upper and lower manifolds simplify valve, gauge and desiccant service
Activated alumina with high crush strength and low attrition limits dust generation during repeated pressure cycles
Customer Product Concerns
A refrigerated dryer normally leaves compressed air at a positive pressure dew point, which may be inadequate when piping is exposed to freezing temperatures or a moisture-sensitive process requires substantially drier air.
Residual water vapor can condense or freeze when utility piping passes through low-temperature areasSelect the adsorption dryer for the actual inlet conditions and use a -40°C reference pressure-dew-point configuration where the environmental margin requires it.
Liquid water or compressor oil can coat activated alumina and shorten useful bed lifeInstall correctly sized water separation and coalescing filtration upstream, verify automatic drainage and prevent liquid carryover into the inlet manifold.
Desiccant dust can migrate downstream after repeated pressure cyclingInstall a separate outlet particulate filter and inspect the beds, screens and valve timing when downstream differential pressure or dust loading changes.
Fixed-cycle operation can consume purge air even when flow and moisture loading are lowUse the dew-point control function to delay changeover within the permitted cycle limits and match purge settings to the selected operating pressure.
A leaking switching valve or blocked exhaust silencer can prevent complete regeneration and cause an unstable outlet dew pointMonitor tower pressure equalization, service the accessible valves and replace contaminated silencers before the fault affects both adsorption beds.
Typical Applications
Cleanroom instrument-air systems requiring a subzero pressure dew pointPharmaceutical and medical-device pneumatic controlsElectronics assembly and moisture-sensitive process airLaboratory air headers and analytical instrument supplyFood and beverage packaging utility airOutdoor or unheated compressed-air piping exposed to freezing conditions
Technical Parameters
The selected catalogue-scale identity is a floor-mounted heatless twin-tower dryer referenced to the HLA90 class: 2.5 Nm³/min capacity at a -40°C pressure dew point, 1-inch NPT air connections and an approximate 1029 mm wide by 762 mm deep by 1603 mm high package envelope. Activated alumina is the primary desiccant and dry purge air regenerates the off-line tower; no heater or blower is fitted. Actual usable flow, purge consumption, pressure loss, dew point and vessel rating depend on inlet pressure, temperature, moisture loading and the selected control mode. Separate upstream coalescing filtration and a separate downstream dust filter are required for a complete treatment train.
| Core Material | High-crush-strength activated alumina beads in two welded carbon-steel adsorption towers |
|---|---|
| Panel Thickness | Powder-coated electrical-control enclosure panel approximately 1.2-1.5 mm |
| Effective Width | 1029 mm overall package width for the selected HLA90-class configuration |
| Maximum Length | 1603 mm overall package height for the selected configuration |
| Steel Facing Thickness | Welded carbon-steel adsorption-tower shell typically 5-8 mm for the representative size |
| Core Density | Activated alumina packed bulk density typically 705-800 kg/m³ |
| Thermal Conductivity | Carbon-steel pressure shell approximately 48 W/(m·K) at 20°C |
| Surface Finish | Fine-textured RAL 7035 light-gray powder-coated towers, graphite-black manifolds, valves, silencers and base, natural stainless gauge bezels and a dark-gray controller enclosure |
| Joint Type | Rear-mounted 1-inch NPT inlet and outlet connections, welded manifold branches, serviceable tower closures and threaded purge-silencer connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Alternative flow capacities and connection sizes-20°C, -40°C or -70°C nominal pressure-dew-point configurationDew-point demand control with remote alarm contactsPneumatic or electronic fixed-cycle controllerAlternative operating-pressure vessel classLow-ambient-temperature protection packageStainless-steel control-air tubing and valve trimSeparately sized inlet water separator, coalescing filters and outlet dust filter
Planning a Desiccant Air Dryer specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
