Deck-Mounted Eyewash

A swing-away twin-head eyewash that mounts beside a sink and parks clear during routine laboratory work.

Swing-Away Deck Mount
Twin Controlled Streams
Automatic Stay-Open Operation
Compact Sink Integration

Request a Quote Browse Products

Product Introduction

The deck-mounted eyewash integrates emergency flushing beside an existing laboratory or cleanroom sink. Rotating the arm into the operating position opens or prepares the stay-open valve, depending on the selected mechanism, and aligns two protected heads over the sink basin. A compact below-deck valve body and flexible service connection simplify integration where a separate receptor would consume valuable bench space.

Key Features

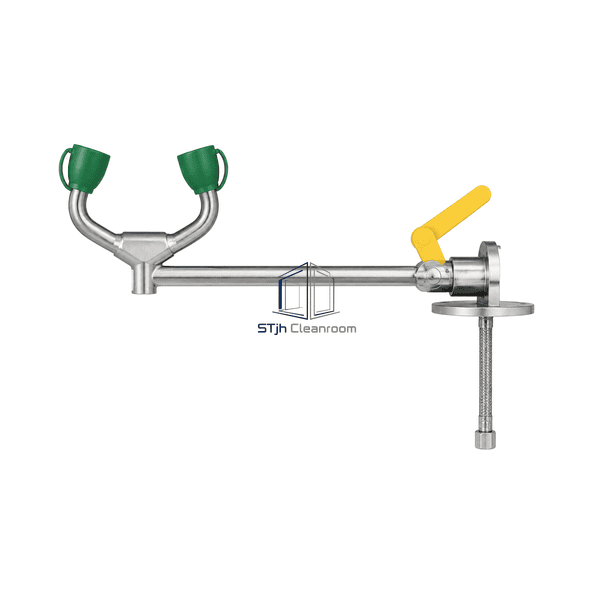

The swing-away arm parks beside the faucet and preserves the normal sink work area.

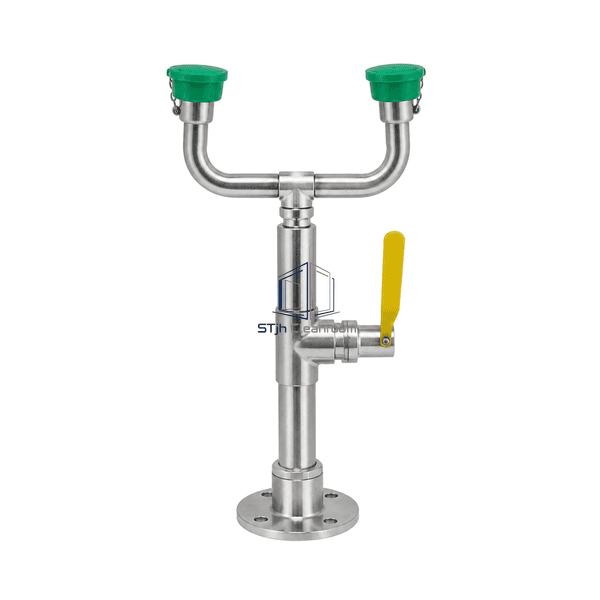

Twin flow-controlled heads provide balanced simultaneous flushing.

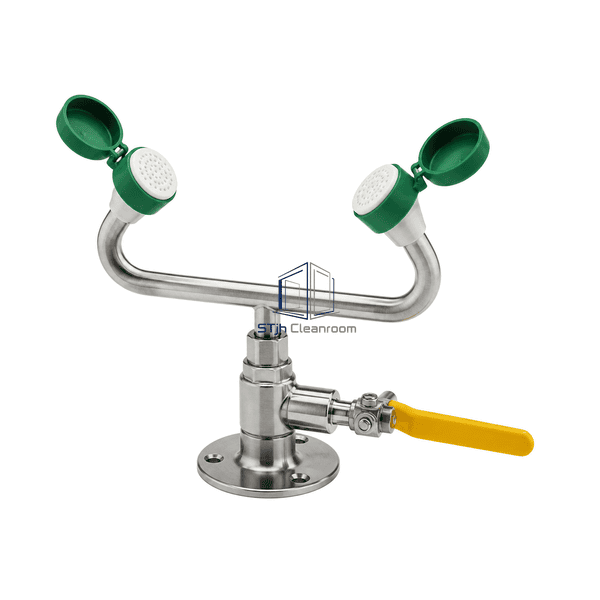

A compact deck penetration groups the valve and supply connection below the worktop.

Protective covers keep nozzle outlets clean until emergency flow begins.

Customer Product Concerns

A bench needs emergency eye flushing without adding a separate floor or wall receptor that consumes working space.

A permanent nozzle assembly interferes with routine sink work.The eyewash arm rotates into a parked position outside the normal basin envelope.

Limited deck space makes large valve bodies difficult to install.A compact mounting shank and below-deck connection minimize the required opening.

The sink faucet may supply water outside the safe flushing range.A dedicated supply and optional thermostatic mixing assembly isolate eyewash performance from normal faucet operation.

Nozzles near an active sink collect splash and debris.Self-releasing dust covers protect both outlets between tests and emergency use.

Typical Applications

Laboratory sinksCleanroom wet benchesChemical sampling countersResearch workstations

Technical Parameters

Typical construction values for a swing-away deck-mounted eyewash are shown below; deck thickness and service connection are selected for the host sink or worktop.

Core Material	Chrome-plated brass or 304 stainless arm with polymer nozzle assemblies
Panel Thickness	1.0-2.0 mm stainless deck trim and support components
Effective Width	250-400 mm operating arm reach
Maximum Length	Up to 500 mm overall swing arm length
Steel Facing Thickness	1.0-2.0 mm stainless exposed trim components
Core Density	7900-8000 kg/m³ for stainless structural parts
Thermal Conductivity	14-16 W/(m·K) for stainless components
Surface Finish	Polished chrome or satin stainless with safety-green nozzle details
Joint Type	Gasketed deck shank with threaded supply and rotating stay-open valve assembly
Customization	Available based on the intended application and operating environment.

Available Options

Left- or right-hand parkingStainless constructionThermostatic mixing valveIndependent push or swing activation
