Industry-Specific Cleanroom Equipment

Compounding Isolator

A compact two-glove pharmacy isolator that provides a HEPA-filtered barrier workspace and staged material transfer for sterile compounding workflows.

HEPA-Filtered Work Zone
Two-Glove Ergonomic Access
Integrated Pass-Through
Positive or Negative Pressure

Request a Quote Browse Products

Product Introduction

The compounding isolator encloses sterile preparation behind a sealed viewing sash and fixed gloves. Filtered supply air maintains the controlled work zone, while the side pass-through stages supplies without directly exposing the chamber to room air. Positive-pressure configuration supports non-hazardous preparations; an externally exhausted negative-pressure arrangement can be selected where containment of hazardous sterile drugs is required.

Key Features

Two glove ports provide direct reach across the stainless work surface.

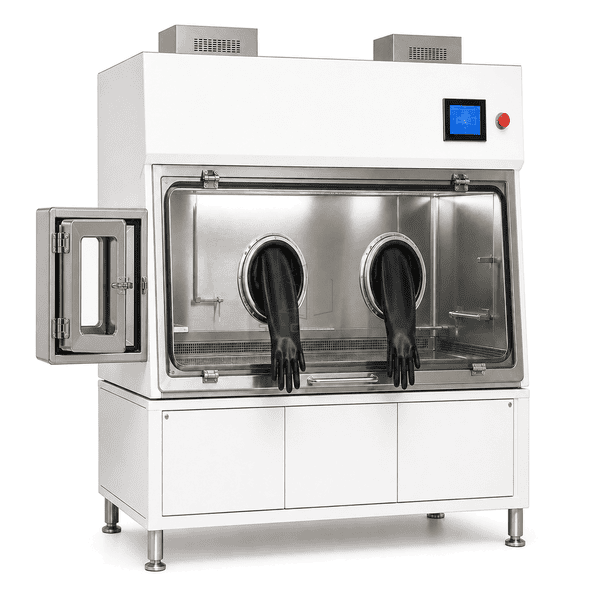

A gasketed side pass-through separates material transfer from compounding activity.

Dedicated supply and exhaust modules stabilize airflow and chamber pressure.

Flush internal surfaces and removable work accessories simplify routine cleaning.

Customer Product Concerns

Pharmacy compounding must protect exposed sterile components while also controlling operator contact with hazardous formulations when applicable.

Room air can enter the critical work zone during manipulation.HEPA-filtered airflow and a sealed glove barrier isolate exposed components from the operator environment.

Supply transfer can disturb chamber pressure and cleanliness.The separate pass-through stages materials before the inner boundary is opened.

Hazardous aerosols require a different pressure strategy from non-hazardous work.The airflow arrangement can be configured for positive aseptic protection or externally exhausted negative containment.

Frequent dose changes demand efficient surface decontamination.Smooth stainless interiors, radiused corners and accessible trays reduce residue traps.

Typical Applications

Sterile IV admixture preparationHazardous drug compoundingHospital pharmacy dose preparationSmall-batch aseptic formulation

Technical Parameters

Typical configurable construction values for a compact pharmacy compounding isolator are listed below.

Core Material	Powder-coated steel housing with 316L stainless work chamber, safety glass and black gloves
Panel Thickness	40-80 mm enclosure and airflow plenum sections
Effective Width	1200-1800 mm usable work-zone width
Maximum Length	Up to 2400 mm overall equipment length including pass-through
Steel Facing Thickness	1.2-2.0 mm chamber and cabinet construction
Core Density	35-45 kg/m³ for insulated enclosure sections
Thermal Conductivity	0.035-0.045 W/(m·K) for insulated enclosure sections
Surface Finish	White powder-coated exterior with satin stainless cleanable interior
Joint Type	Sealed main sash, fixed glove rings and gasketed interlocked pass-through door assembly
Customization	Available based on the intended application and operating environment.

Available Options

Positive-pressure non-hazardous configurationNegative-pressure externally exhausted configurationAlternative pass-through locationIntegrated monitoring and pharmacy workflow accessories

Planning a Compounding Isolator specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
