Laminar Flow and Containment Equipment
Compounding Aseptic Isolator
A positive-pressure glove-access isolator that provides a closed clean work zone for non-hazardous sterile drug compounding and admixture preparation.
- Positive-Pressure Compounding Zone
- Ergonomic Glove Access
- Interlocked Transfer Chamber
- Integrated IV Utility Layout
Product Introduction

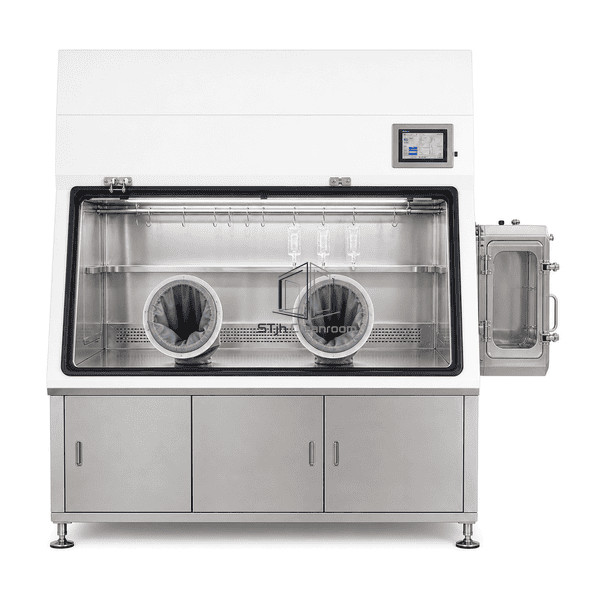

The compounding aseptic isolator is arranged around pharmacy manipulation rather than production-line equipment. A positive filtered chamber protects non-hazardous sterile preparations, while glove ports allow vial, syringe and IV bag handling without an open front. Supplies enter through an interlocked transfer chamber, and internal shelving, bag hooks and utility locations are positioned within the operator's reach. The cabinet remains distinct from a negative-pressure hazardous drug isolator.
Key Features
Glove ports and sloped viewing panels support seated pharmacy work.

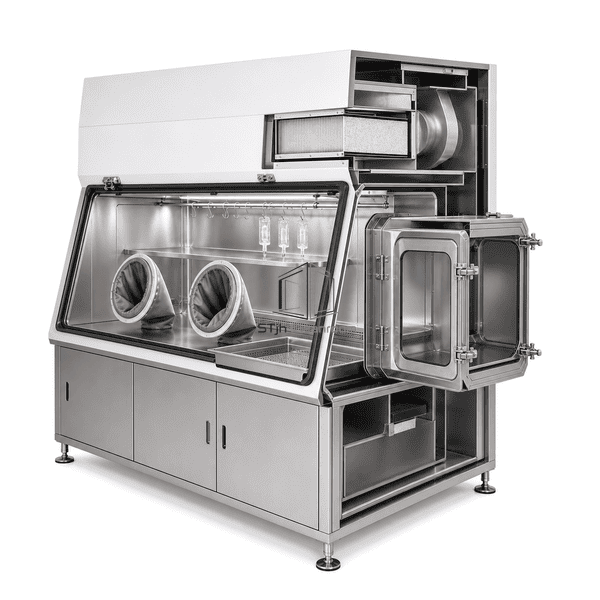

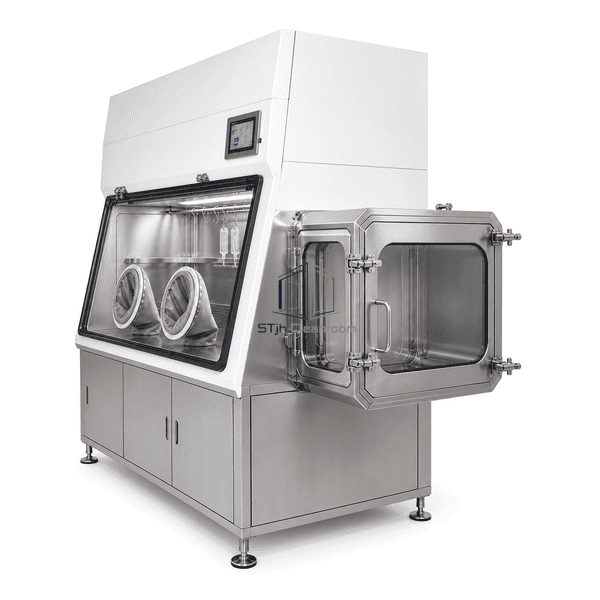

An interlocked transfer chamber separates supply loading from the compounding zone.

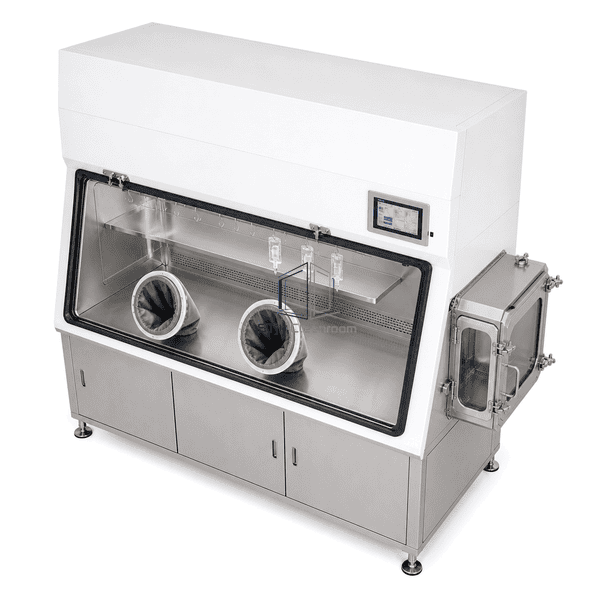

Integrated bag hooks and shelves organize syringes, vials and IV containers.
A removable work tray exposes the stainless lower pan after spills.
Customer Product Concerns
Pharmacy compounding needs a closed sterile work zone that remains ergonomically practical for frequent vial, syringe and bag manipulation.
Supplies are passed directly into the critical chamber.An interlocked transfer section separates loading from compounding.
Glove ports are too far from frequently used tools.Shelves, hooks and utilities are placed within the mapped operator reach envelope.
Liquid collects beneath a fixed work surface.Lift-out work sections expose the welded lower spill pan.
A positive isolator is selected for hazardous drugs.The application is clearly limited to non-hazardous sterile preparations.
Typical Applications
Non-hazardous sterile compoundingIV admixture preparationTPN preparation supportSmall-batch pharmacy aseptic work
Technical Parameters
Typical configurable construction ranges for a compounding aseptic isolator are listed below.
| Core Material | SUS316L positive-pressure work chamber with laminated safety glass and CSM glove assemblies |
|---|---|
| Panel Thickness | 40-80 mm double-skin chamber and service sections |
| Effective Width | 1200-2400 mm usable compounding width |
| Maximum Length | Up to 3500 mm overall cabinet length |
| Steel Facing Thickness | 1.5-2.5 mm SUS316L chamber; 1.0-1.5 mm outer service skins |
| Core Density | Approximately 8000 kg/m³ for SUS316L chamber material |
| Thermal Conductivity | 14-16 W/(m·K) for austenitic stainless steel |
| Surface Finish | Fine-brushed or electropolished SUS316L with clear laminated viewing panels |
| Joint Type | Welded positive-pressure chamber with sealed glove rings and gasketed interlocked transfer doors |
| Customization | Available based on the intended application and operating environment. |
Available Options
Two or four glove positionsIV bag hooks and shelvesRapid transfer portIntegrated glove integrity test connections
Planning a Compounding Aseptic Isolator specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
