Cleanroom Material Handling and Storage

Cold Chain Transfer Cart

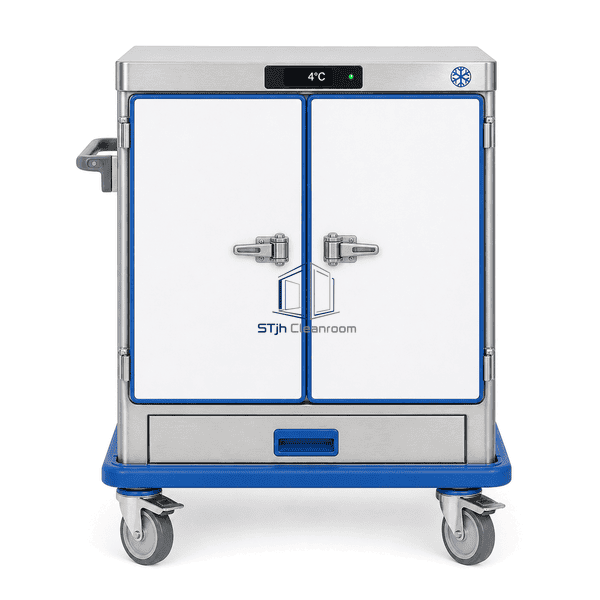

An insulated stainless cold chain cart with configurable phase-change cooling packs and continuous temperature monitoring for controlled internal transport.

Insulated mobile enclosure moderates temperature during internal transfer
Replaceable PCM packs support application-selected temperature bands
Integrated logger keeps transport conditions visible and traceable

Request a Quote Browse Products

Product Introduction

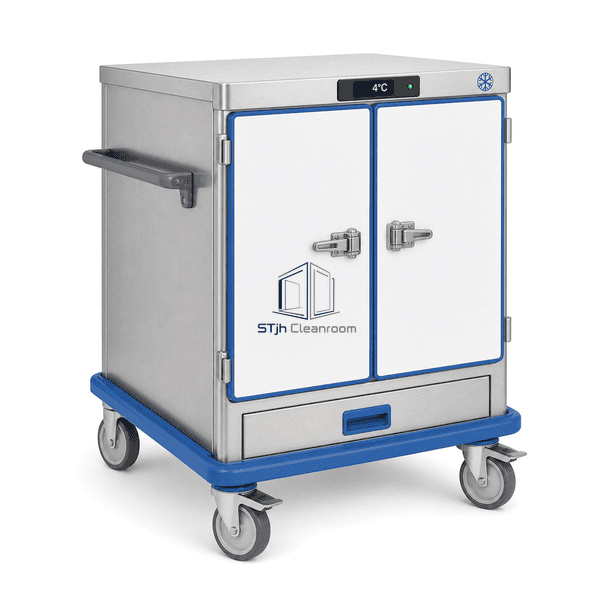

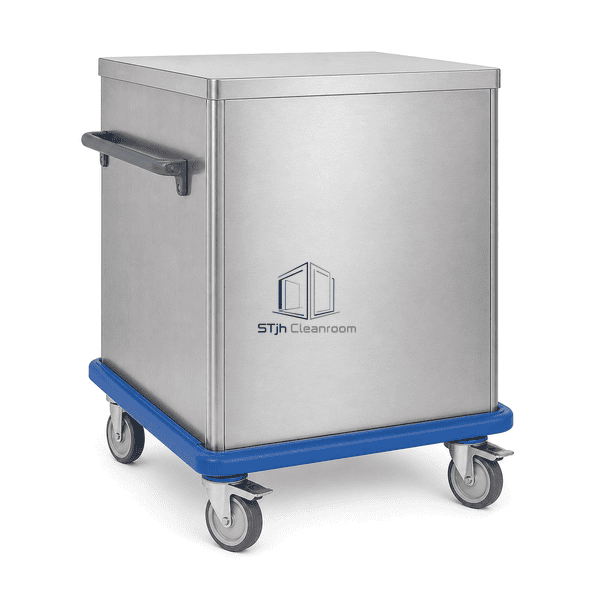

The cart combines a cleanable stainless shell, insulated double-wall cabinet, gasketed doors, removable trays and replaceable phase-change material modules. An integral temperature logger displays chamber conditions, while the bumper, push handle and sealed casters support frequent movement through clean manufacturing and healthcare areas.

Key Features

High-performance insulation reduces heat gain during short transfer routes.

PCM modules can be conditioned for the selected product temperature range.

Gasketed compression-latched doors limit warm-air infiltration.

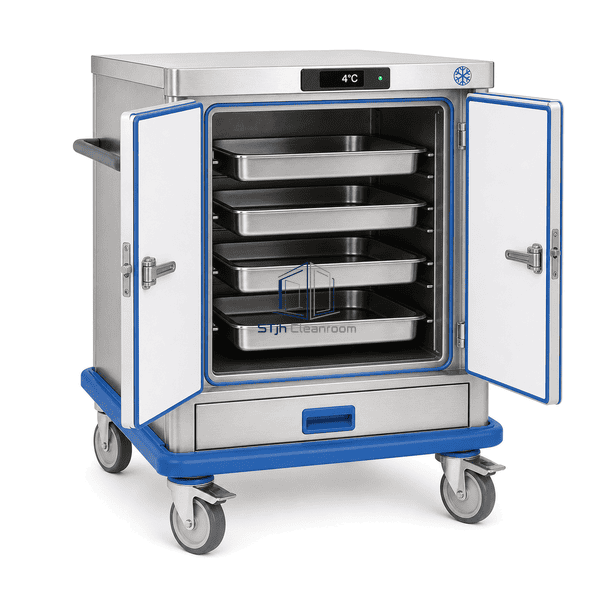

Removable trays separate payloads and improve loading access.

Digital monitoring records temperature throughout handling.

Customer Product Concerns

Short movements and staging intervals can still expose sensitive products to heat gain, unnoticed excursions and inconsistent handling.

Temperature drift between controlled roomsInsulated panels and conditioned PCM packs buffer the payload chamber.

Warm-air entry at the doorsCompression latches maintain contact around continuous silicone seals.

Excursions lacking evidenceThe integrated logger displays and records chamber temperature.

Changing payload formatsRemovable trays and configurable PCM channels adapt the interior layout.

Typical Applications

Internal transfer of temperature-sensitive medicines, vaccines, biologics, diagnostic materials and laboratory samples between storage, processing and dispatch areas.

Technical Parameters

Insulation thickness, PCM formulation and pack quantity are selected for the payload, target temperature, expected route time and door-opening profile. The cart is a configurable passive transport platform; final thermal duration requires qualification under the actual loading pattern.

Core Material	Rigid polyurethane insulation with stainless inner liner and replaceable PCM cooling modules
Panel Thickness	50–80 mm
Effective Width	500–800 mm usable chamber width
Maximum Length	Up to 1200 mm overall cart length
Steel Facing Thickness	0.8–1.5 mm
Core Density	38–45 kg/m³
Thermal Conductivity	0.022–0.026 W/(m·K)
Surface Finish	Brushed stainless shell with smooth stainless liner and white powder-coated insulated doors
Joint Type	Foamed double-wall cabinet with compression-latched gasketed doors and removable PCM pack channels
Customization	Available based on the intended application and operating environment.

Available Options

PCM sets for refrigerated, controlled-ambient or frozen ranges, alternate tray layouts, tamper-evident locks, removable data loggers, alarms, active cooling modules and custom chamber dimensions.
