Cleanroom Garments, PPE and Consumables

Cleanroom Zip Bag

Transparent low-particle cleanroom zip bag with an integral press-to-close profile for repeated storage and handling of small components and samples.

Resealable interlocking closure for repeated controlled access
Clear LDPE film keeps parts visible without opening the package
Clean double packaging supports orderly material transfer

Request a Quote Browse Products

Product Introduction

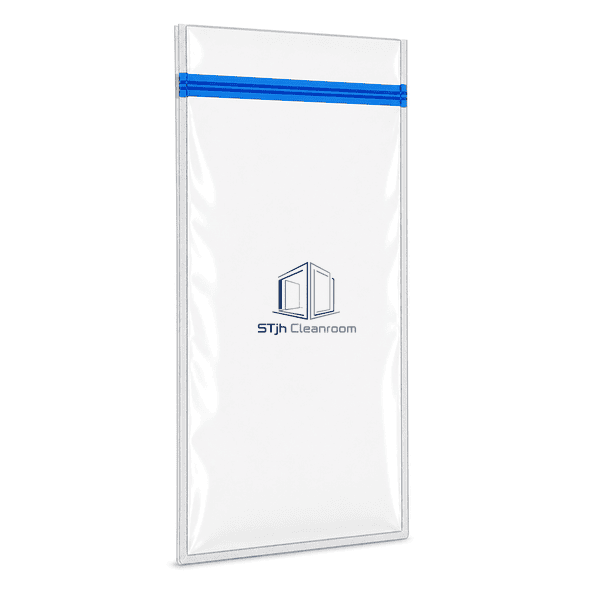

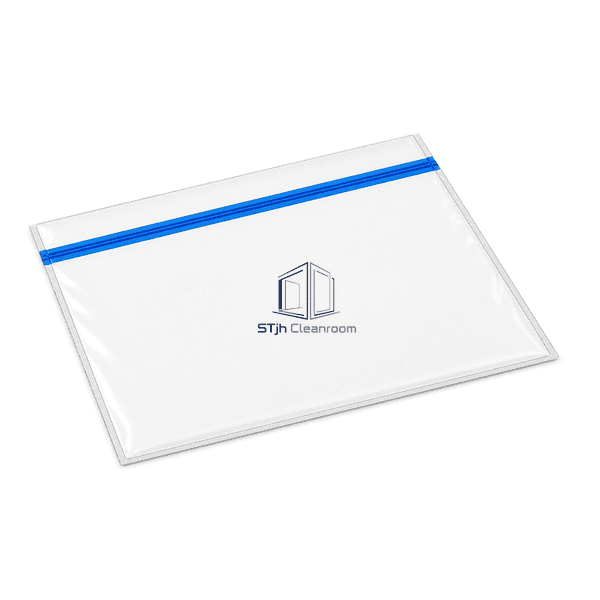

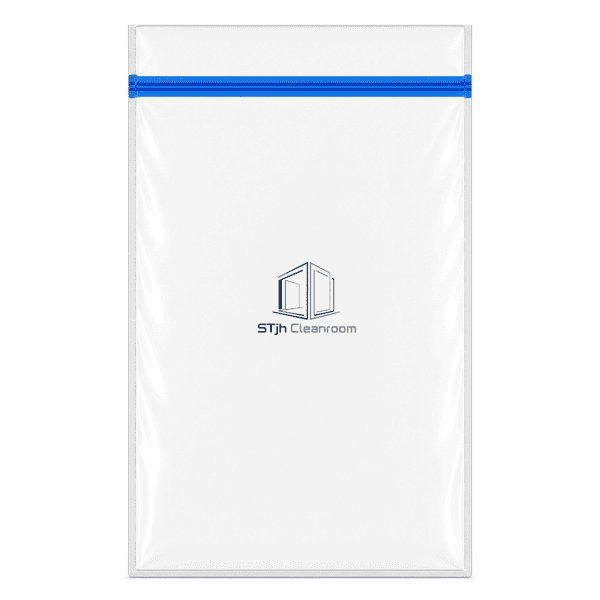

The Cleanroom Zip Bag combines clean-converted polyethylene film with a molded interlocking zipper across the opening. The clear body allows fast content identification, while the closure can be opened and resealed without a heat sealer. Straight side seams and a continuous bottom weld provide a simple pouch geometry that is easy to wipe and inspect.

Key Features

Clear LDPE body provides flexible, moisture-resistant containment

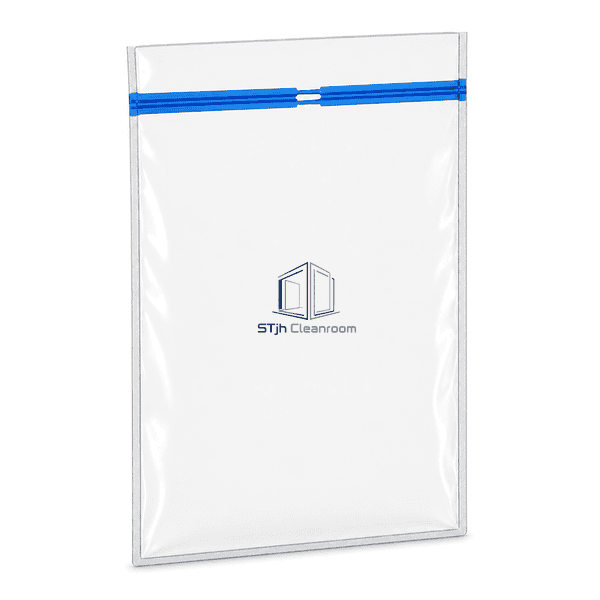

Integral press-lock profile allows repeated opening and closure

Wide grip flange remains accessible while wearing cleanroom gloves

Uniform heat seals reduce weak spots along the sides and base

Custom dimensions accommodate parts, samples and documentation sets

Customer Product Concerns

Reusable access is useful only when the zipper remains clean, aligned and fully closed. Fine debris in the interlocking tracks, sharp components or excessive fill volume can compromise containment.

The zipper may appear closed while a short section remains unengaged.Press the closure from one end to the other and verify the full track.

Particles trapped in the profile can prevent a continuous seal.Keep the gripping flange and zipper profile outside the work surface.

Sharp edges can puncture the clear film during handling.Add a clean tray, cap or protective wrap around sharp components.

Overpacking can stress both the zipper and side welds.Select a larger pouch or heavier gauge for bulky contents.

Typical Applications

For segregating small clean parts, fasteners, tubing pieces, coupons, labels, environmental-monitoring accessories and non-sterile samples in laboratories and controlled production areas.

Technical Parameters

These values describe common cleanroom resealable LDPE pouches. Film gauge, zipper color, dimensions and packaging configuration remain selectable for the intended contents.

Core Material	Clean-converted low-density polyethylene with integral LDPE zipper
Panel Thickness	0.050-0.150 mm film gauge
Effective Width	75-600 mm internal bag width
Maximum Length	900 mm usable bag length
Steel Facing Thickness	0 mm; all-polymer construction
Core Density	910-940 kg/m³ LDPE
Thermal Conductivity	0.31-0.36 W/(m·K), typical LDPE range
Surface Finish	Smooth transparent film with optional colored zipper profile
Joint Type	Press-to-close interlocking zipper with heat-sealed sides and base
Customization	Available based on the intended application and operating environment.

Available Options

Clear, antistatic or tinted filmBlue, red or natural zipper profileWrite-on panel or fully clear faceStandard or heavy-duty gaugeSingle, double or triple clean packagingCustom size and perforated hang hole

Planning a Cleanroom Zip Bag specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
