Cleanroom Video Intercom

A flush sealed door station that combines a wide-angle camera, hands-free audio and illuminated call control in one cleanable panel.

Wide-Angle Camera Window
Hands-Free HD Audio
Illuminated Call Button
PoE SIP Connectivity

Request a Quote Browse Products

Product Introduction

The video intercom adds a camera and clear sealed window to a stainless audio call station. A visitor presses the illuminated button while the wide-angle camera transmits the doorway view to an operator or mobile client. PoE simplifies wiring, and integrated relay outputs can release the door after visual and voice verification without adding a separate unsealed camera or microphone.

Key Features

The wide-angle camera captures visitors standing close to the wall station.

Echo-controlled hands-free audio supports natural two-way conversation.

One PoE connection carries power, audio, video and control data.

A bright call indicator confirms that the request was registered.

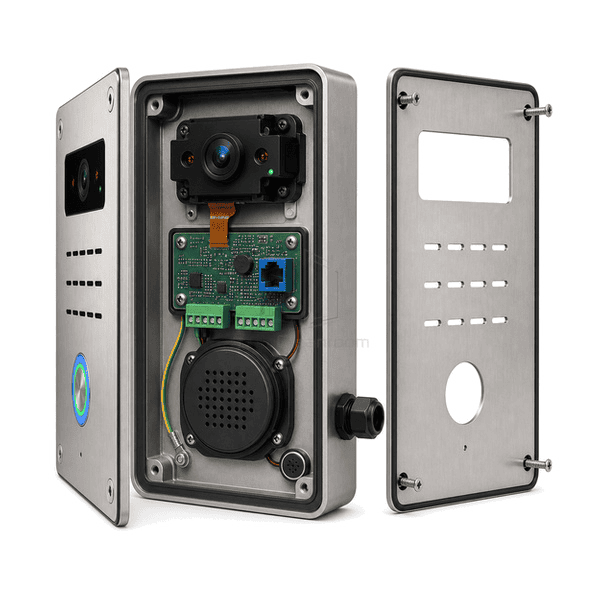

Relay and input connections integrate door release and position monitoring.

Customer Product Concerns

Visual verification requires clear optics and intelligible audio without multiplying penetrations for separate camera, speaker and call devices.

A separate camera misses visitors standing directly at the call button.An integrated wide-angle lens frames the person at the same interaction point.

Doorway noise produces feedback during two-way speech.Echo cancellation and automatic gain control stabilize the audio path.

Multiple devices require separate power and network cabling.PoE combines the station services on one sealed rear connection.

Users cannot tell whether the call button responded through gloves.A large tactile control and colored ring confirm registration.

Typical Applications

Cleanroom visitor verificationMaterial airlock communicationLaboratory entrance controlRemote clean-zone support

Technical Parameters

Typical configurable construction ranges for a cleanroom video intercom are listed below.

Core Material	SUS316L faceplate with sealed glass camera window, call button, microphone, loudspeaker and PoE SIP electronics
Panel Thickness	2.0-4.0 mm stainless front-plate thickness
Effective Width	120-240 mm station face width
Maximum Length	Up to 360 mm overall station height
Steel Facing Thickness	2.0-3.0 mm SUS316L front plate
Core Density	Approximately 2500 kg/m³ for the sealed glass camera window
Thermal Conductivity	0.8-1.1 W/(m·K) for the optical glass window
Surface Finish	Fine-brushed stainless face with black camera window and blue/green illuminated call ring
Joint Type	Flush gasketed back box with sealed camera glass, membrane audio path and PoE rear connector
Customization	Available based on the intended application and operating environment.

Available Options

Audio-only or HD video modelSingle or multiple call buttonsDoor-release relayFlush or surface mounting
