Cleanroom Tunnel Washer

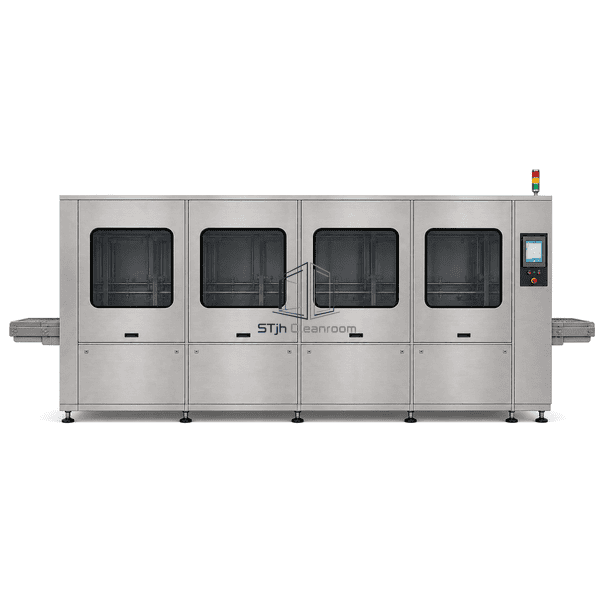

A modular continuous-flow tunnel washer for high-throughput cleaning, rinsing, disinfection, and filtered-air drying of cleanroom process loads.

Independent process zones support continuous, repeatable throughput

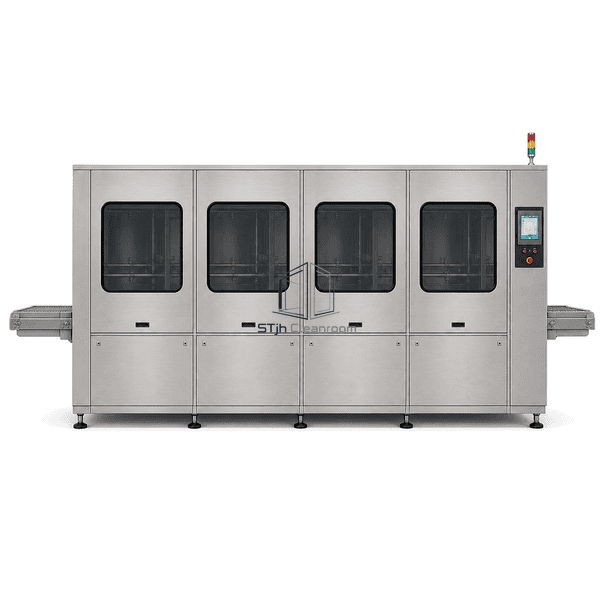

Stainless hygienic construction separates loading and clean-side discharge
Configurable wash, rinse, disinfection, and drying modules

Request a Quote Browse Products

Product Introduction

The cleanroom tunnel washer provides a linear, automated route for containers, trays, utensils, racks, or other compatible process items. Its modular chambers isolate each treatment stage, while dedicated pumps and spray manifolds maintain controlled mechanical action. The cleanable stainless enclosure, separated load and unload ends, recipe control, and accessible service zones suit validated hygiene workflows without assigning unverified performance to a specific project.

Key Features

Modular pre-wash, wash, rinse, disinfection, and drying sections

Adjustable stainless conveyor with load guides

Separate recirculation circuits to limit cross-stage carryover

High-coverage spray manifolds with removable nozzles

Fresh-water final rinse connection

Optional HEPA-filtered hot-air drying

Insulated stainless process enclosure

Recipe control with cycle status and alarm display

Customer Product Concerns

Large volumes of reusable components can create bottlenecks when processed in batch cabinets. Mixed soil loads, carryover between stages, and uncontrolled manual handling can also reduce repeatability at the clean-side boundary.

How is cross-stage carryover controlled?Independent chambers, dedicated circulation tanks, staged rinsing, and controlled conveyor travel separate the process functions.

Can the line fit a specific load and throughput?Conveyor width, chamber sequence, spray arrangement, belt speed, and loading interfaces can be configured around representative items and the required capacity.

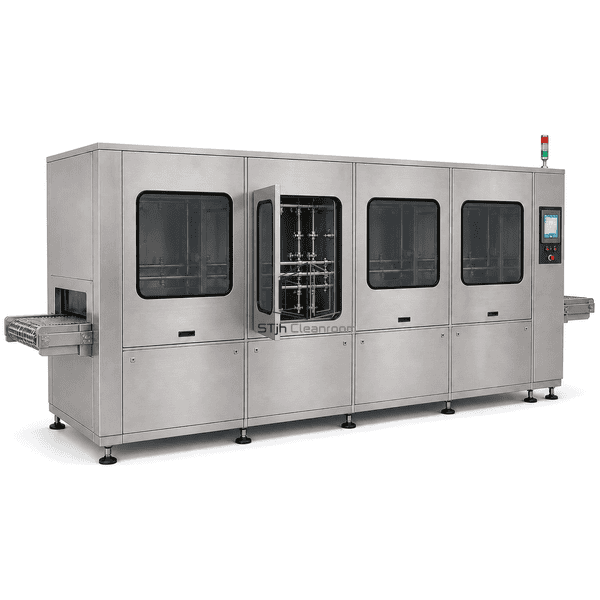

How are difficult surfaces reached?Opposed spray manifolds and selectable nozzle patterns direct high-flow cleaning solution around exposed load surfaces; dedicated carriers can orient complex items.

Is maintenance accessible without compromising hygiene?Gasketed inspection doors, removable strainers and nozzles, sloped drainable chambers, and segregated service access simplify routine inspection and cleaning.

Typical Applications

Pharmaceutical component washingCleanroom container and utensil processingMedical-device reprocessing supportLaboratory cage and rack washingFood and biotechnology hygiene linesHigh-throughput controlled-area wash transfer

Technical Parameters

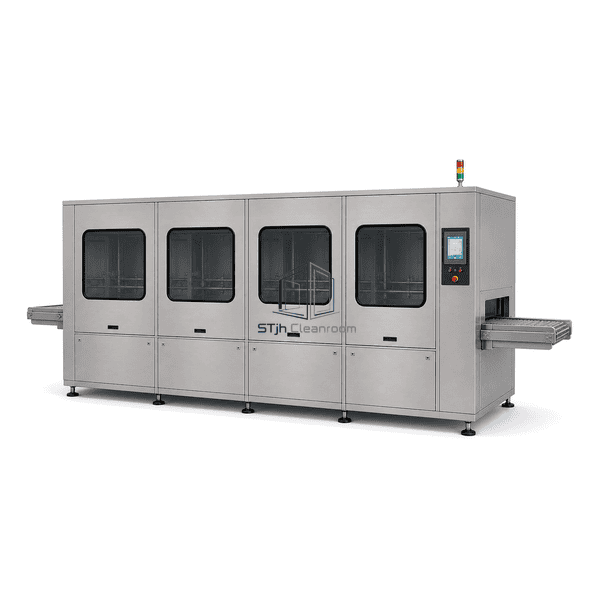

Loads travel on a controlled conveyor through dedicated stainless-steel chambers. Recirculating spray circuits, fresh final rinse, optional thermal disinfection, and HEPA-filtered drying can be arranged to match the load and cleanliness target. Interlocked access panels and inspection windows support safe maintenance.

Core Material	304 or 316L stainless-steel process chambers with insulated service panels
Panel Thickness	40–60 mm insulated enclosure panels
Effective Width	600–1200 mm conveyor width
Maximum Length	4500–12000 mm modular line length
Steel Facing Thickness	1.2–2.0 mm stainless-steel facing
Core Density	40–60 kg/m³ mineral-wool enclosure insulation
Thermal Conductivity	0.035–0.045 W/(m·K) for insulated enclosure sections
Surface Finish	Brushed external stainless steel with smooth cleanable chamber surfaces
Joint Type	Continuously welded process seams with gasketed modular flanges and sanitary utility connections
Customization	Available based on the intended application and operating environment.

Available Options

Pre-wash and alkaline or acid wash modulesMulti-stage purified-water rinsingThermal disinfection sectionHEPA-filtered hot-air dryingAutomatic loading and unloading conveyorsCustom carriers and load guides316L product-contact constructionRecipe logging and plant-system connectivity

Planning a Cleanroom Tunnel Washer specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
