Cleanroom Furniture and Stainless Steel Products
Cleanroom Tray Cart

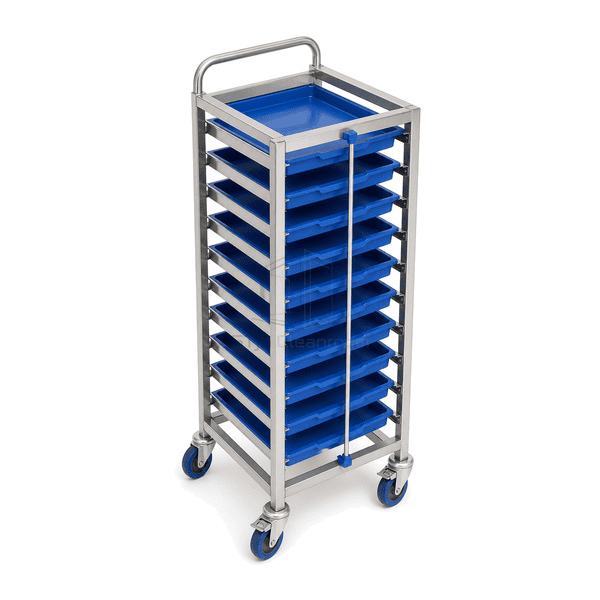

A single-bay Type 304 stainless transport rack with twelve removable blue polypropylene trays, welded runner pairs, rear end stops, a tubular push handle and four locking casters.
- Twelve individually removable trays
- Blue cleanable polypropylene inserts
- Welded runner pairs with end stops
- Single-bay narrow transport frame
Product Introduction

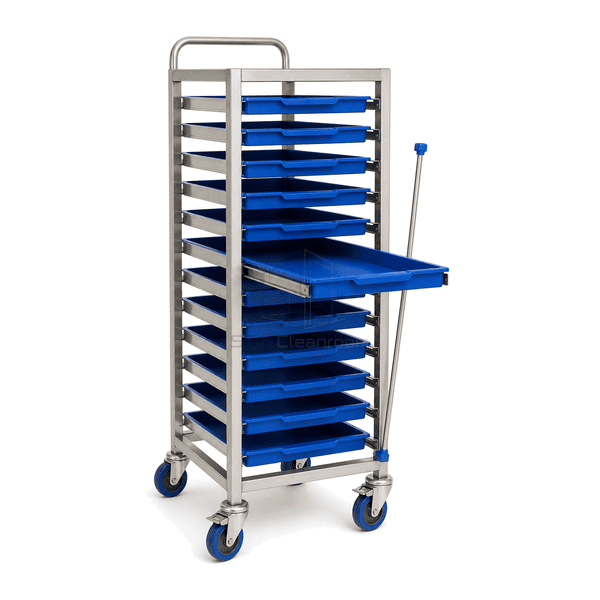

The cleanroom tray cart moves twelve separated batches in one narrow mobile rack. Each shallow blue polypropylene tray slides on a dedicated pair of continuously welded Type 304 runners, avoiding loose shelf clips and separating product lots vertically. Raised tray lips contain small packaged parts, and welded rear stops prevent a tray being pushed through the frame. A removable front retaining bar secures all twelve trays for transfer, while a rounded rear handle and four 125 mm swivel casters provide controlled movement.
Key Features
Blue polypropylene trays lift out individually and provide immediate contrast for light-colored components.
Continuously welded runner pairs and rear stops define every insertion path without adjustable shelf clips.

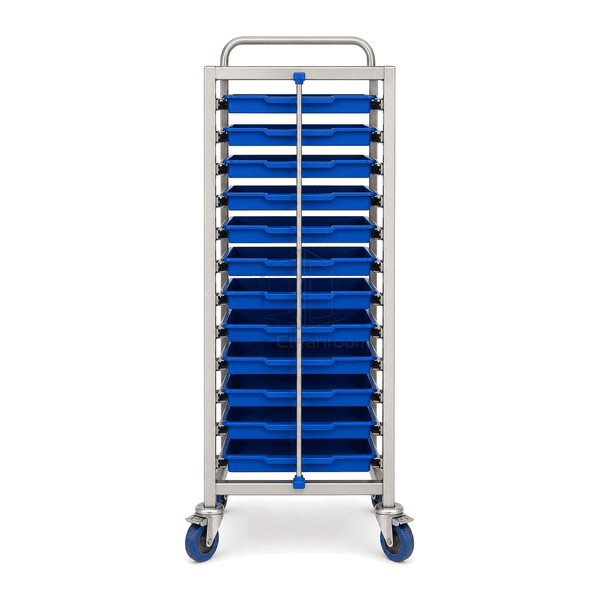

One removable front bar retains the complete tray column during movement and releases without disturbing the trays.
Customer Product Concerns
Multiple shallow batches are easily mixed or stacked unless each tray has a fixed insertion path and the complete column is restrained while the cart moves.
Stacked trays hide lower work orders and require lifting several loads to reach one batch.Twelve separate runner levels give every tray independent access.
Light stainless parts are difficult to see against another bare metal tray.Blue polypropylene tray surfaces improve visual contrast without decorative coloring.

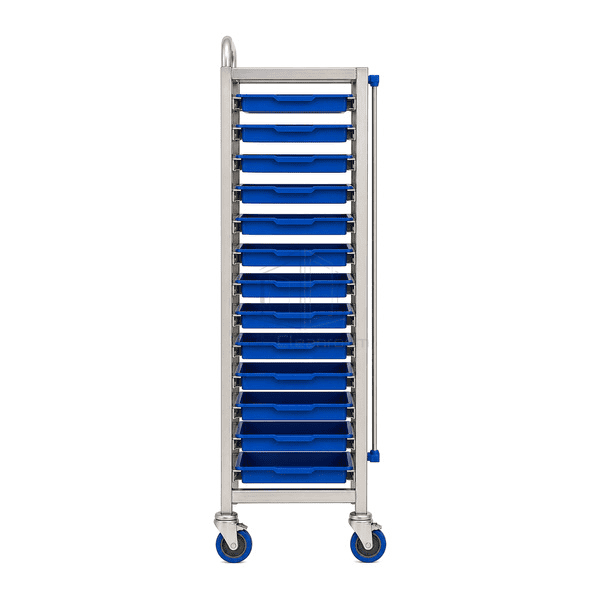

A tray can slide through the rear of an open rack during loading.Welded rear end stops terminate all twelve runner pairs at a consistent depth.
Individual tray catches are slow to secure before every transfer.A single removable retaining bar captures the front edge of the complete tray column.
Typical Applications
Cleanroom work-in-process tray transferMedical-device subassembly movementPharmaceutical component stagingOptical part batch handlingControlled packaging queue storage
Technical Parameters
Typical configurable specifications for a twelve-level stainless cleanroom tray cart are listed below.
| Core Material | Type 304 stainless welded frame and runners with twelve blue cleanable polypropylene trays |
|---|---|
| Panel Thickness | 2.0 mm tray wall and lip thickness |
| Effective Width | 600 mm clear tray insertion width |
| Maximum Length | 800 mm maximum overall cart depth including push handle |
| Steel Facing Thickness | 1.5 mm Type 304 runner and frame wall thickness |
| Core Density | 900–920 kg/m³ for polypropylene trays; 7900–8000 kg/m³ for stainless frame |
| Thermal Conductivity | 0.10–0.22 W/(m·K) for polypropylene tray material |
| Surface Finish | Satin-brushed stainless frame with smooth blue trays, blue wheel treads and passivated runner welds |
| Joint Type | Continuously welded runner pairs with rear end stops, removable front retaining bar and plate-mounted caster forks |
| Customization | Available based on the intended application and operating environment. |
Available Options
Perforated stainless traysTransparent tray coversNumbered tray label railConductive polymer trays and casters
Planning a Cleanroom Tray Cart specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
