Personnel and Material Decontamination Equipment
Cleanroom Transfer Hatch
A shallow, wall-mounted hatch for controlled movement of documents, sealed packs and small components.
- Shallow chamber depth

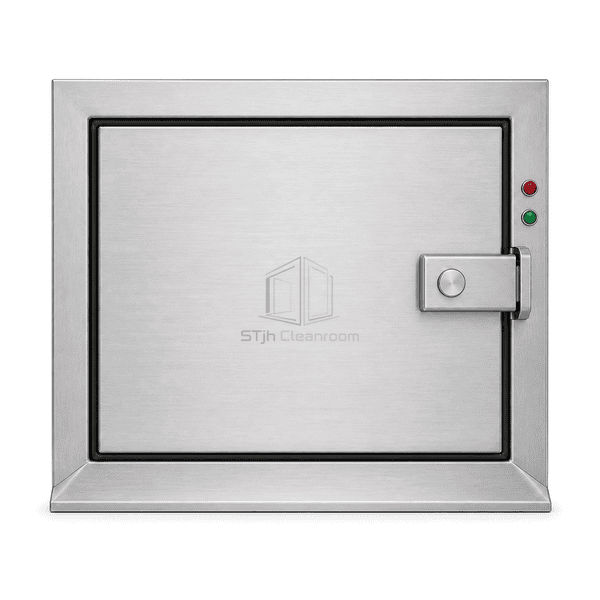

- Flush wall mounting
- Interlocked opposing doors
- Removable transfer tray
Product Introduction

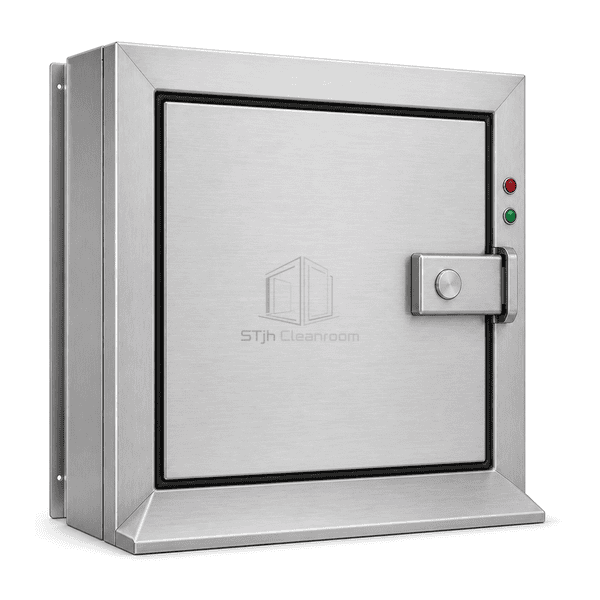

The Cleanroom Transfer Hatch is a compact alternative to a deep pass box when the transfer is limited to records, sample trays or sealed small parts. Its shallow stainless liner sits within the partition rather than projecting far into the room. Opposing flush doors can be mechanically or electronically interlocked, and the smooth tray area is readily accessible from either side for routine cleaning.
Key Features
Flush edge treatment reduces protrusions around the clean-side opening.

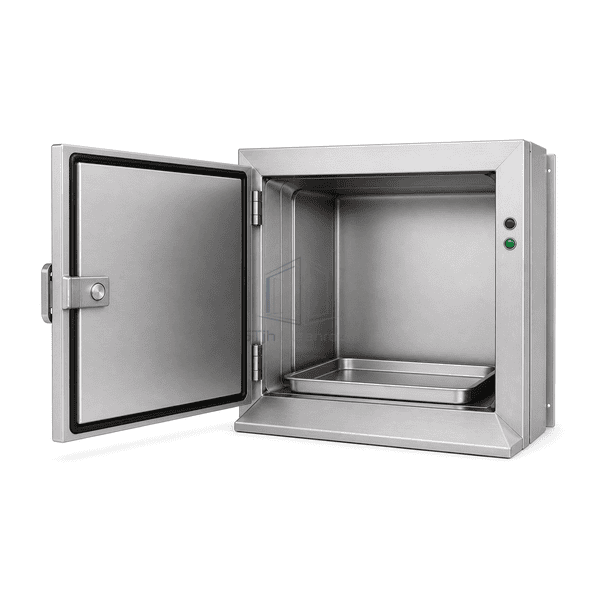

A removable tray or sloped sill helps prevent small items from being retained.
Clear vision-panel options let users inspect contents before opening their side.

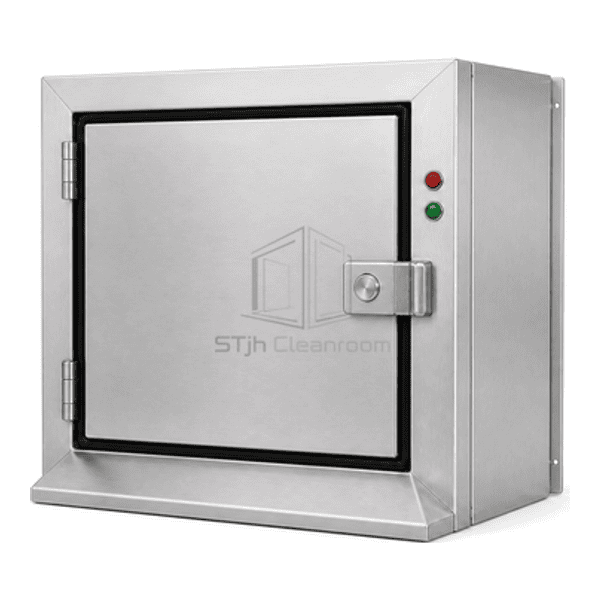

Compact interlock hardware keeps only one transfer door available at a time.
Customer Product Concerns
Small items need a dedicated transfer route without occupying the floor area or chamber depth required for large materials.
A deep pass box projects too far into a restricted aisle.The hatch is designed around a shallow chamber and a compact wall flange.
Paperwork travels through frequently opened personnel doors.The hatch provides a separate interlocked route for documents and small packs.
Small items settle in inaccessible square corners.A radiused stainless liner and removable tray minimise hard-to-reach recesses.
Items left inside a transfer opening are not noticed promptly.The fully visible shallow interior makes retained items easier to see.
Typical Applications
Batch-record transferSealed sample-tray movementSmall electronic component handoverSterile-pack exchangeLaboratory document transfer
Technical Parameters
Typical compact-hatch dimensions are selected to suit the wall thickness and the type of small item being transferred.
| Core Material | SUS304 stainless steel chamber liner, frame and hatch doors |
|---|---|
| Panel Thickness | 1.0–1.2 mm stainless steel hatch and liner panels |
| Effective Width | 400–800 mm clear opening |
| Maximum Length | 400–800 mm chamber depth |
| Steel Facing Thickness | 1.0–1.2 mm SUS304 |
| Core Density | 7900–8000 kg/m³ for stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for stainless steel |
| Surface Finish | Brushed stainless steel with flush wall flange and coved liner |
| Joint Type | Sealed wall-clamp frame with opposed interlocked hatch doors |
| Customization | Available based on the intended application and operating environment. |
Available Options
Clear or tinted vision panelsRemovable stainless transfer trayDoor-open buzzerCorner-wall installation layout
Planning a Cleanroom Transfer Hatch specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
