Cleanroom Furniture and Stainless Steel Products
Cleanroom Tool Cabinet
A compact stainless tool cabinet that secures nine shallow organized drawers behind one lockable outer door.
- Nine shallow tool drawers
- Single lockable outer door
- Compact raised cabinet body
- Adjustable non-marking feet
Product Introduction

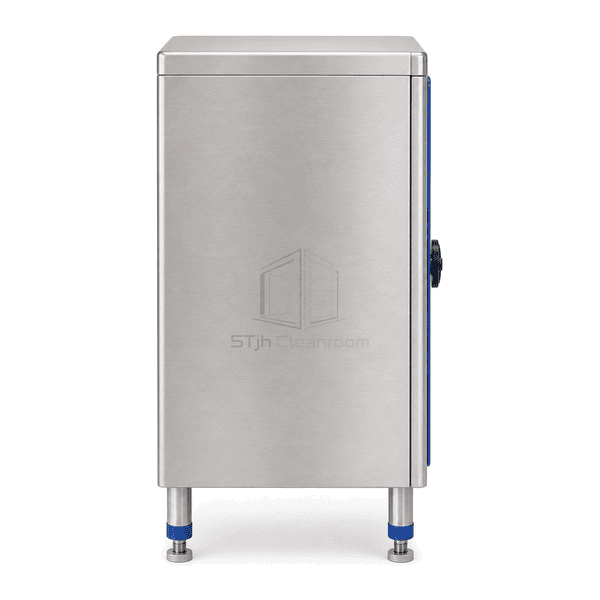

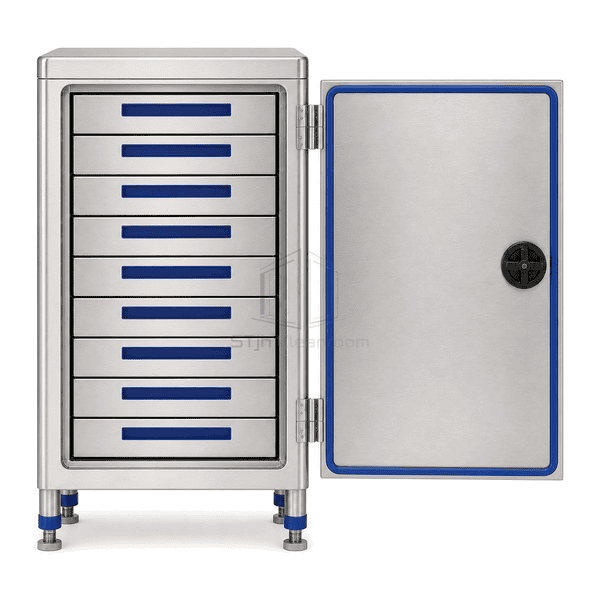

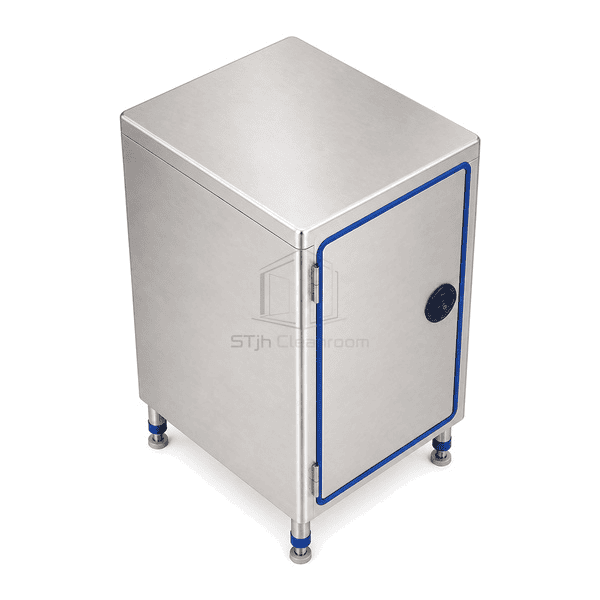

The cleanroom tool cabinet concentrates frequently used hand tools and small maintenance parts in nine shallow stainless drawers. The complete drawer bank sits behind one full-height lockable door, so drawer pulls and labels remain protected when the cabinet is closed. Enclosed telescopic runners keep each drawer aligned, while removable dividers separate tool sizes within the shallow format. The welded Type 304L body stands on four leveling feet with enough floor clearance to inspect and wipe beneath the cabinet.
Key Features
The single outer door secures the complete drawer bank and provides one controlled access point for the tool inventory.
Blue label strips identify drawer contents at a glance while adding no exposed paper labels to the cabinet face.

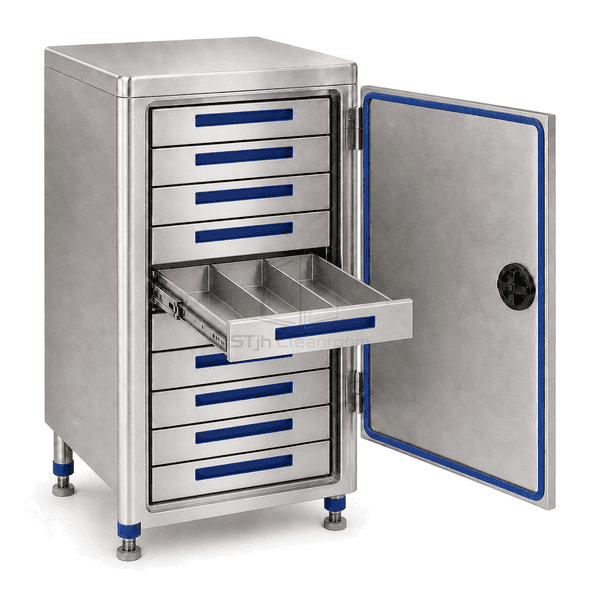

Stainless telescopic runners keep the drawer travel controlled and allow a drawer to be removed for thorough emptying and cleaning.
Customer Product Concerns
Small tools are easily mixed, misplaced or left exposed when they share deep general-purpose shelves in a controlled area.
Deep shelves mix small hand tools and require operators to move several items to reach one component.Nine shallow drawers divide the inventory into visible tool families and limit stacking depth.
Individual drawers can be left partly open after a maintenance task.The outer lockable door cannot close until the drawer fronts are returned within the cabinet envelope.
Adhesive paper labels lift or trap residue on frequently handled drawer fronts.Protected blue label strips provide a defined reusable identification position on each drawer.
A conventional wheeled tool chest moves during drawer operation and leaves little floor access.The static welded body uses four independently adjusted feet to remain stable and raised above the floor.
Typical Applications
Cleanroom maintenance tool controlCalibration accessory storagePrecision hand-tool organizationMedical-device line supportControlled engineering workshop storage
Technical Parameters
Typical configurable specifications for a stainless cleanroom tool cabinet are listed below.
| Core Material | Type 304L stainless steel welded cabinet with nine stainless drawers, removable dividers and an outer lockable door |
|---|---|
| Panel Thickness | 1.2–1.5 mm cabinet body and outer door panels |
| Effective Width | 500–700 mm overall cabinet width |
| Maximum Length | 1250 mm maximum overall cabinet height |
| Steel Facing Thickness | 1.2–1.5 mm Type 304L stainless cabinet and drawer fronts |
| Core Density | 7900–8000 kg/m³ for Type 304L stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304L stainless steel |
| Surface Finish | Brushed dull-polish stainless with blue anodized drawer label strips and black locking hardware |
| Joint Type | Continuously welded cabinet body with one full-height hinged door and nine drawers on enclosed stainless telescopic runners |
| Customization | Available based on the intended application and operating environment. |
Available Options
Removable drawer-divider setsPerforated tool-control insert panelsLocking cleanroom caster baseMaster-key or individual-key lock arrangement
Planning a Cleanroom Tool Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
