Cleanroom Furniture and Stainless Steel Products

Cleanroom Sample Cabinet

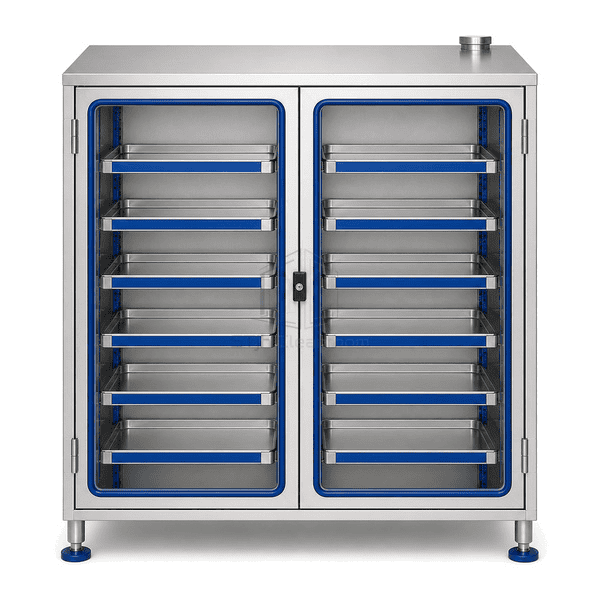

A tall glazed Type 304L stainless cabinet with twelve shallow pull-out trays that separate, label and secure controlled samples.

Twelve removable sample trays
Lockable laminated glass doors
Blue protected label rails
Optional top or rear ventilation

Request a Quote Browse Products

Product Introduction

The cleanroom sample cabinet organizes retained specimens and packaged reference samples on twelve shallow Type 304L stainless trays. Each tray runs on paired side guides and lifts out for complete emptying, while a low formed rim contains small containers within its assigned level. Twin laminated-glass doors display the tray positions without disturbing the stored samples and close onto continuous blue silicone seals. Protected blue label rails on the tray fronts provide a consistent identification point. A capped top and rear ventilation connection can be opened when room-compatible air exchange is required, or remain sealed for ordinary dry storage.

Key Features

Twelve shallow trays create individual sample levels and avoid deep stacking that hides retained containers.

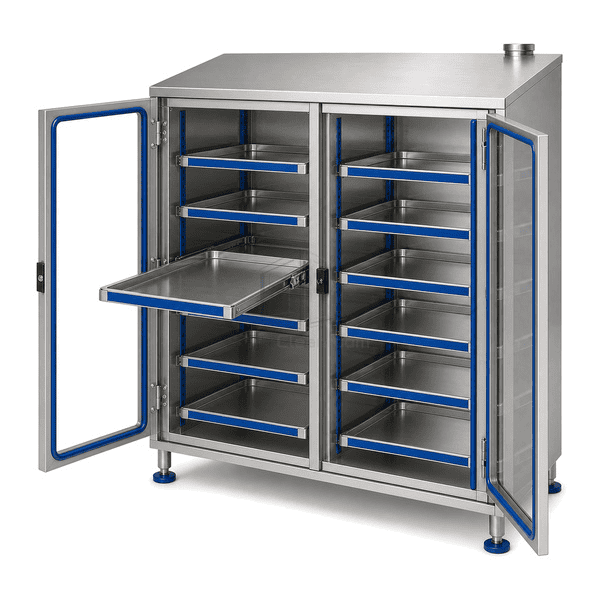

Removable stainless trays have formed retaining rims and can be carried to a bench for counting or wiping.

Glazed lockable doors show tray occupancy while continuous blue seals protect the cabinet perimeter.

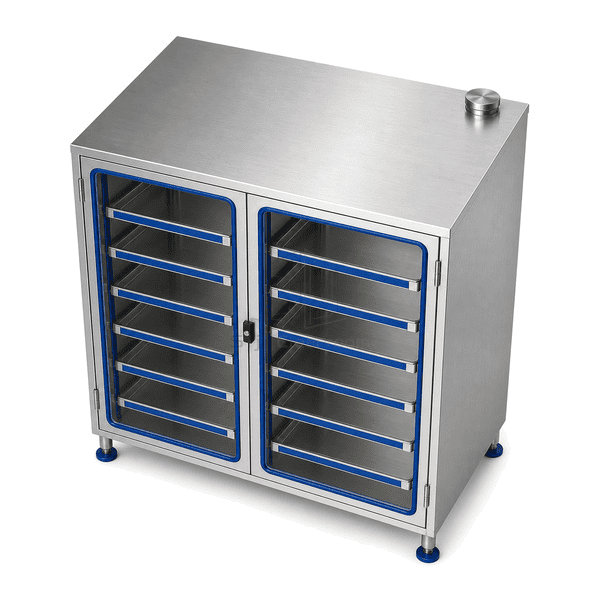

A capped top or rear connection supports optional cabinet ventilation without changing the clean external door face.

Customer Product Concerns

Retained samples become difficult to trace when different batches share deep shelves or unprotected open racks.

Containers stacked two or three deep hide the oldest sample and force unnecessary handling.Twelve shallow pull-out trays keep each sample level visible and accessible from the front.

Loose adhesive labels detach from cold or frequently wiped stainless surfaces.Protected blue label rails hold replaceable identifiers away from the tray's load surface.

A fixed shelf cannot be removed when a vial leaks or a package sheds residue.Each rimmed stainless tray lifts from its side guides for complete emptying and separate cleaning.

Some stored samples need room-compatible air exchange while others require a closed dry cabinet.The prepared top and rear connection can accept a ventilation duct or remain capped as a sealed enclosure.

Typical Applications

Pharmaceutical retain-sample storageLaboratory specimen organizationMedical-device reference sample archivesIncoming material sample controlQuality-control stability sample staging

Technical Parameters

Typical configurable specifications for a stainless cleanroom sample cabinet are listed below.

Core Material	Type 304L stainless steel cabinet with laminated tempered-glass doors, twelve removable rimmed trays and blue label rails
Panel Thickness	1.2–1.5 mm cabinet body, door frames and removable trays
Effective Width	750–1000 mm overall cabinet width
Maximum Length	2150 mm maximum overall cabinet height
Steel Facing Thickness	1.2–1.5 mm Type 304L stainless carcass, door frames and tray pans
Core Density	7900–8000 kg/m³ for Type 304L stainless steel
Thermal Conductivity	14–16 W/(m·K) for Type 304L stainless steel
Surface Finish	Brushed No. 4 stainless with clear laminated glazing, blue silicone seals and cobalt-blue tray label rails
Joint Type	Continuously welded enclosure with gasketed twin glass doors, concealed hinges, paired pull-out tray guides and capped top or rear ventilation connection
Customization	Available based on the intended application and operating environment.

Available Options

Six, nine or twelve removable sample traysClear or amber UV-filtering laminated glazingTop or rear ducted ventilation connectionType 316L electropolished cabinet and trays
