Cleanroom Material Handling and Storage

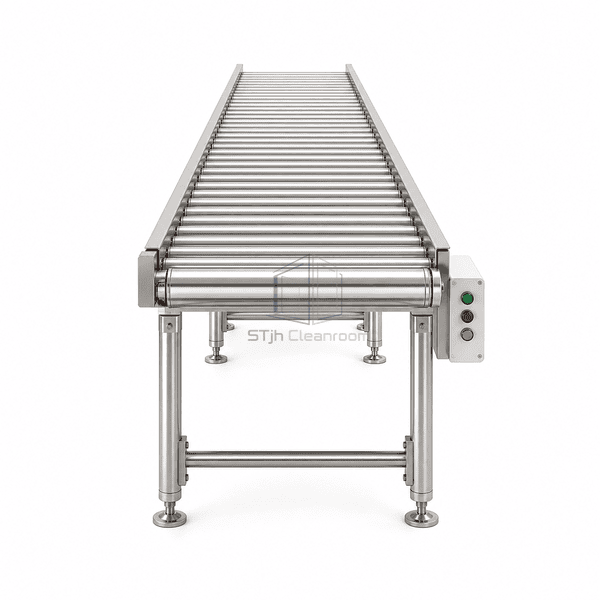

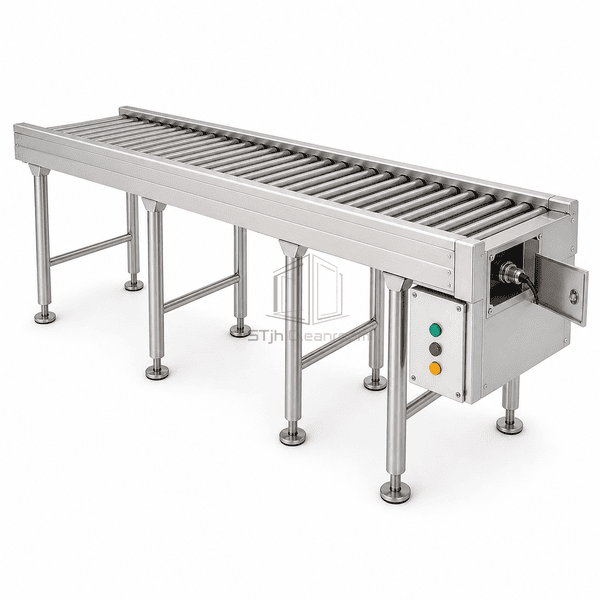

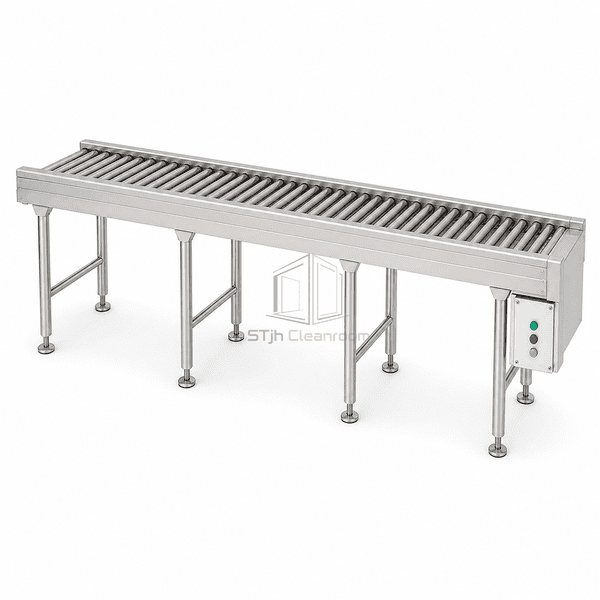

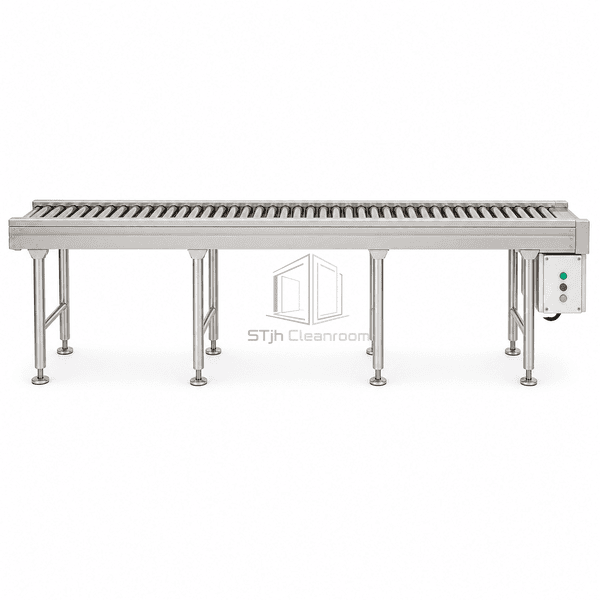

Cleanroom Roller Conveyor

A polished stainless cleanroom roller conveyor with sealed motorized drive, adjustable supports and an accessible low-crevice frame.

Smooth stainless rollers minimize exposed particle-generating components
Sealed 24 V drive supports quiet controlled product movement
Open cleanable frame provides ready access around rollers and supports

Request a Quote Browse Products

Product Introduction

This modular conveyor uses smooth stainless rollers, sealed bearings and a brushless motorized roller within a polished stainless frame. Adjustable tubular legs establish the required transfer height, while enclosed controls and concealed cabling keep routine cleaning surfaces clear.

Key Features

Smooth roller tubes and shafts reduce residue traps.

Enclosed brushless drive avoids an exposed chain and external gearbox.

Open underside permits cleaning access around supports.

Adjustable feet align adjoining machines and transfer stations.

Low-profile guides keep trays centered without obstructing loading.

Customer Product Concerns

Conventional conveyors may expose lubricated drives, difficult-to-clean crevices and particle-generating components near sensitive products.

Particles from exposed transmission partsA sealed motorized roller removes the need for an open chain drive.

Residue beneath the transport surfaceThe open stainless frame leaves cleaning access around rollers and legs.

Misalignment with adjacent equipmentThreaded leveling feet permit accurate working-height adjustment.

Different tray widths and speedsGuide spacing, roller pitch and control logic are configurable to the load.

Typical Applications

Transfer of trays, totes, sealed components and packaged goods across pharmaceutical, medical-device, electronics and precision-assembly clean areas.

Technical Parameters

Conveyor width, roller pitch, speed, accumulation logic and support spacing are configured around the handled tray or container. Stainless construction and sealed drive components are selected for low-particle operation and the site's cleaning method.

Core Material	Type 304 stainless steel frame and rollers with sealed brushless motorized drive roller
Panel Thickness	2.0–3.0 mm frame wall and service-cover sections
Effective Width	400–900 mm conveyor working width
Maximum Length	Up to 6000 mm per conveyor module
Steel Facing Thickness	1.5–2.5 mm side frame and control enclosure
Core Density	7930 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 16.2 W/(m·K) at room temperature
Surface Finish	Fine-brushed or electropolished stainless steel with smooth roller tubes
Joint Type	Bolted modular frame with sealed roller bearings, enclosed drive connection and adjustable guide rails
Customization	Available based on the intended application and operating environment.

Available Options

Gravity or powered modules, zero-pressure accumulation, ESD grounding, photoelectric sensors, removable guides, washdown construction, curves and custom interface heights.
