Cleanroom Doors, Windows and Interlock Systems

Cleanroom Personnel Access Door

A lightweight framed swing door sized for daily personnel movement through modular hardwall cleanroom enclosures.

Modular Personnel Entrance
Clear or Opaque Infill
Electronics-Sensitive Area Use
Aluminum Frame Construction

Request a Quote Browse Products

Product Introduction

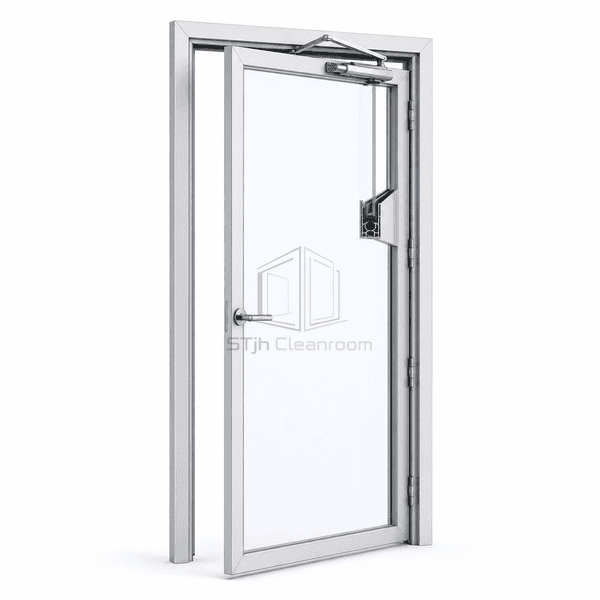

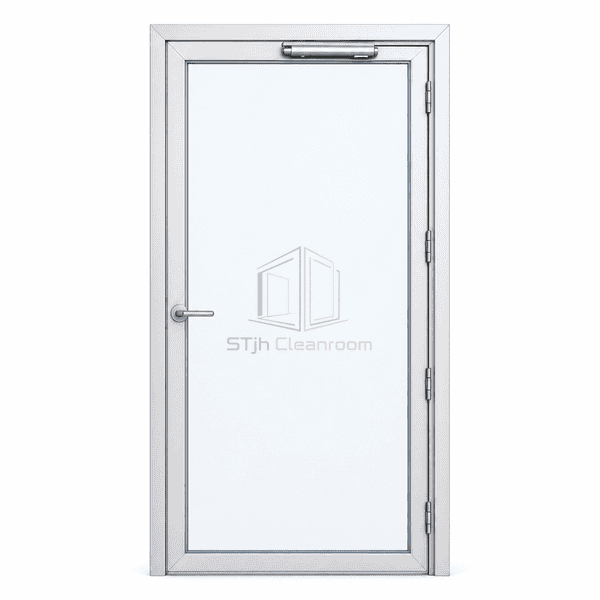

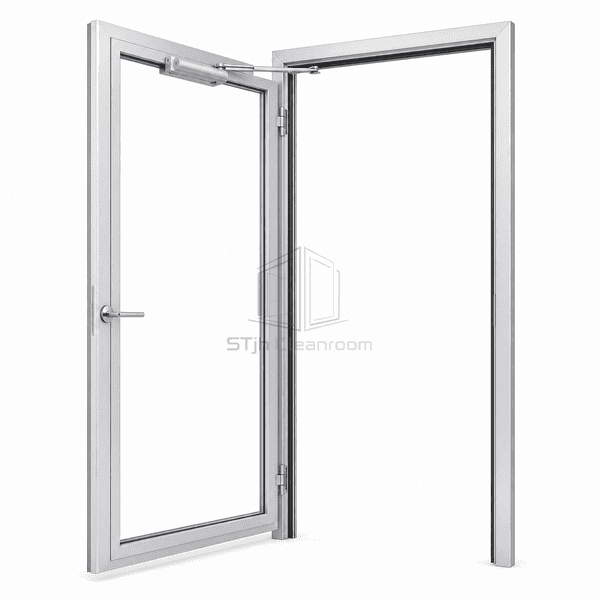

The Cleanroom Personnel Access Door integrates a rigid acrylic, static-dissipative PVC or opaque composite panel into a slim aluminum frame. The assembly mounts directly into modular hardwall panels and provides a defined pedestrian opening without the weight of a deep industrial door leaf. Self-closing hardware and perimeter seals help restore enclosure separation after each passage.

Key Features

Lightweight framed leaf reduces hinge load on modular wall structures.

Clear panel options maintain visibility across compact personnel routes.

Static-dissipative PVC can be selected for electronics-sensitive controlled areas.

Pneumatic or hydraulic closing returns the leaf after routine entry.

Modular frame sections simplify integration with hardwall cleanroom panels.

Customer Product Concerns

A heavy conventional door overloads a lightweight modular wall.Aluminum framing and rigid polymer infill minimize leaf mass while maintaining shape.

Blind pedestrian crossings create collision risk in compact enclosures.A full clear panel or large observation area provides direct visibility through the doorway.

Ordinary plastic panels accumulate electrostatic charge near sensitive assemblies.Static-dissipative PVC provides a controlled-surface-resistance option.

Staff leave the door open during frequent short entries.A compact self-closing mechanism returns the lightweight leaf automatically.

Typical Applications

Modular hardwall cleanroomsElectronics assembly enclosuresLaboratory support roomsInspection and packaging cellsGowning-room personnel entrances

Technical Parameters

Core Material	Rigid acrylic, static-dissipative PVC or opaque hygienic composite infill
Panel Thickness	6–20 mm infill panel
Effective Width	800–1000 mm clear opening
Maximum Length	Up to 2200 mm clear opening height
Steel Facing Thickness	Not applicable to clear panel; optional metal-faced infill 0.6–0.8 mm
Core Density	Approximately 1180 kg/m³ for acrylic or 1350–1450 kg/m³ for rigid PVC
Thermal Conductivity	Approximately 0.19 W/(m·K) for acrylic or 0.14–0.17 W/(m·K) for rigid PVC
Surface Finish	Clear, static-dissipative or opaque smooth panel within anodized or powder-coated aluminum frame

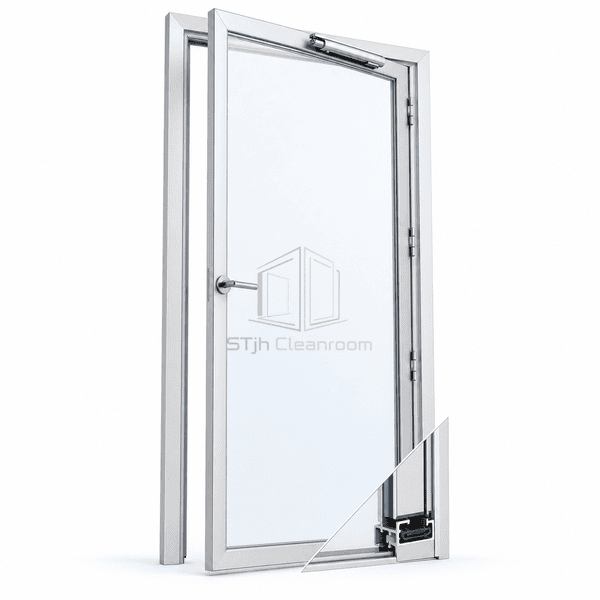

Joint Type	Lightweight swing leaf with modular aluminum jamb, perimeter brush or compression seals and self-closer
Customization	Available based on the intended application and operating environment.

Available Options

Clear acrylic or static-dissipative PVC panelLeft-hand or right-hand swingPneumatic self-closerMechanical lock or access-control preparation

Planning a Cleanroom Personnel Access Door specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
